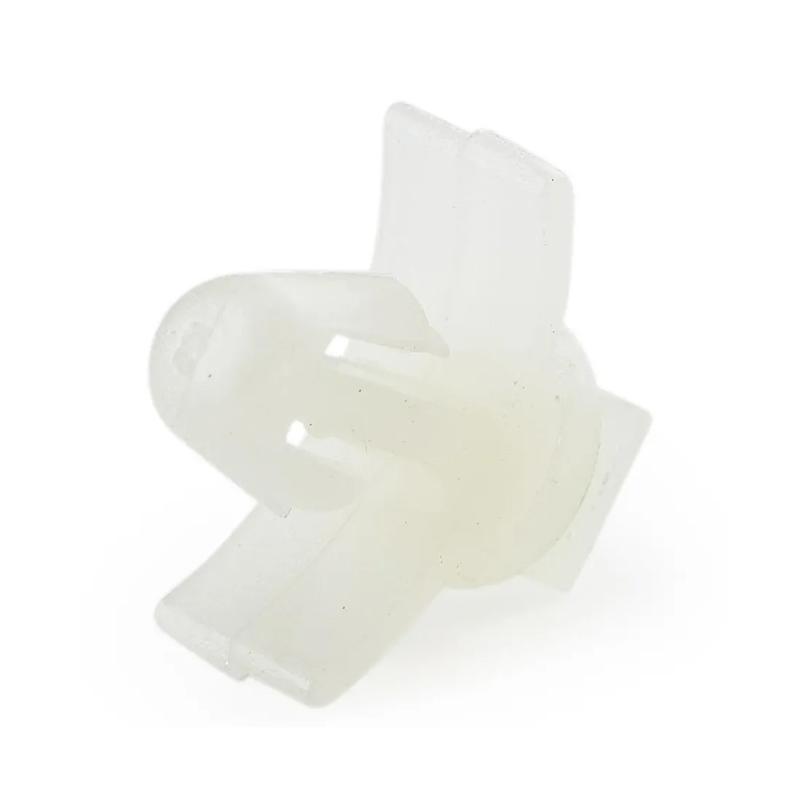

SRFTH - Cable Tie Mounts with Cable Tie Head
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Color | Maximum Compatible Cable Tie Width | Overall Width | Maximum Panel Thickness | Mounting Hole Diameter | Style | Height Under Flange | Maximum Operating Temperature | Compatible Hole Diameter | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Diameter | Overall Length | UL/CSA Description | Anchor Length | Minimum Panel Thickness | Overall Height | Clip Height | Minimum Temperature | Cable Width | Maximum Temperature | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-30-1-01 | Natural | 2.0 mm | 5.5 | 2.0 | 4.76 mm | 6 | 2.8 mm | 85 °C | .187 in | UL94 V-2 | Push In | -40 °C | Nylon 6/6 | 7.1 mm | 13.8 | ULE70062 | 5.3 mm | 0.8 | 15.5 mm | 7.4 mm | -40 °C | 2.0 mm | 85 °C | 2 | |
FTH-30-01 | Natural | 2.0 mm | 0.280 in | 2.0 | 4.76 mm | 5 | 2.8 mm | - | .187 in | UL94 V-2 | Push In | - | Nylon 6/6 | 7.1 mm | 14.4 | ULE70062 | 5.6 mm | 0.8 | 14.7 mm | 6.3 mm | -40 °C | 2.0 mm | 110 °C | 1 |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-30-1-01
Color
Natural
Maximum Compatible Cable Tie Width
2.0 mm
Overall Width
5.5
Maximum Panel Thickness
2.0
FTH-30-01
Color
Natural
Maximum Compatible Cable Tie Width
2.0 mm
Overall Width
0.280 in
Maximum Panel Thickness
2.0
