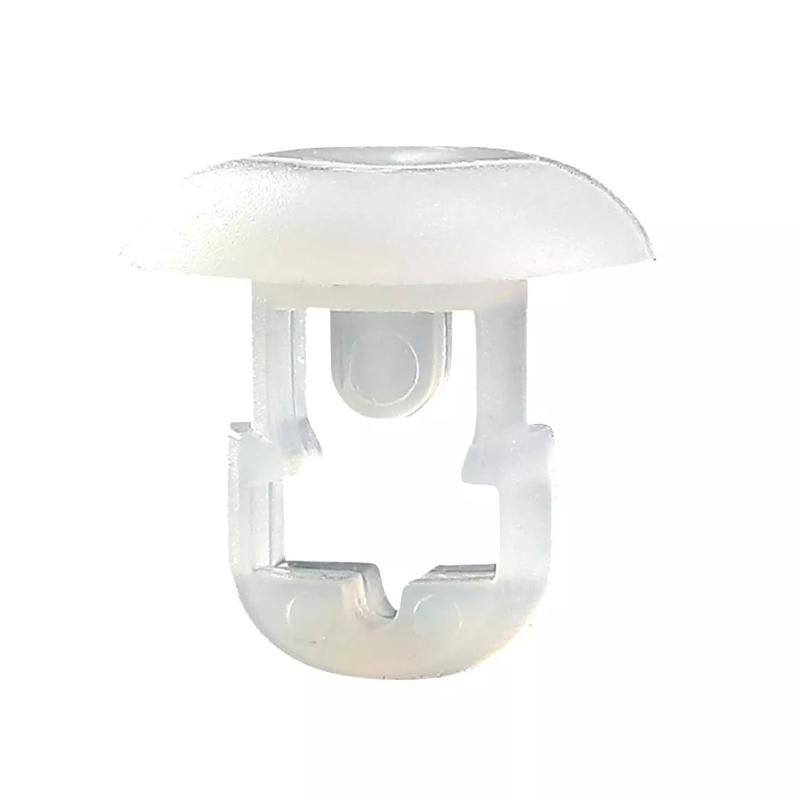

SRFTH-9 - Reverse Mount Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2

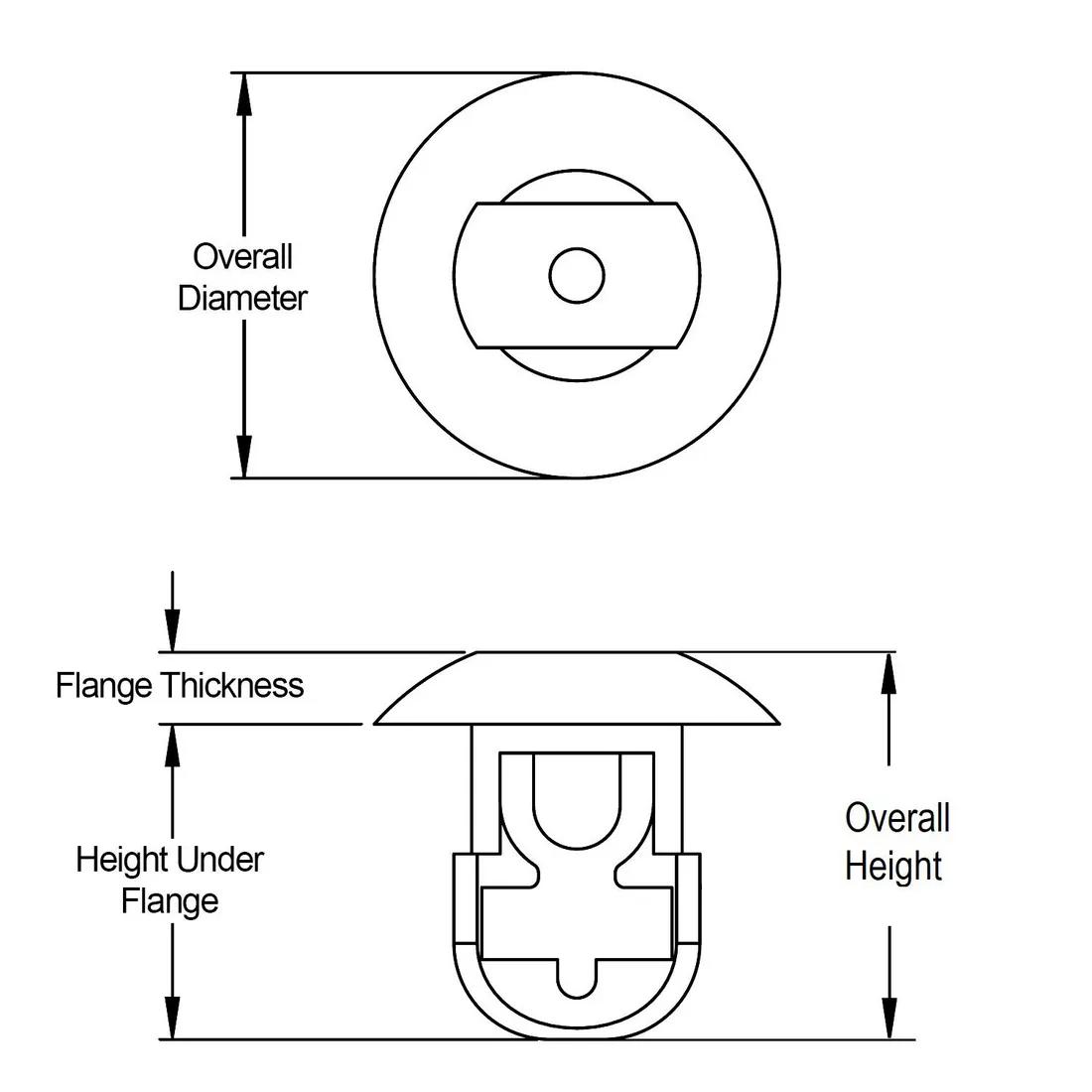

Item Code | Color | Maximum Compatible Cable Tie Width | Material | UL/CSA Description | Maximum Panel Thickness | Mounting Hole Diameter | Compatible Hole Diameter | Material Flammability Standard | Mounting Method | Minimum Compatible Cable Tie Width | Flange Thickness | Maximum Operating Temperature | Minimum Operating Temperature | Overall Diameter | Anchor Length | Panel Thickness | Height Under Flange | Overall Height | Cable Width | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-9-01-C | Natural | 0.190 in | Nylon 6/6 | UL E71558 | 0.125 in | 0.250 in | 0.250 in | UL94 V-2 | Push-In | 0.098 in | - | - | - | - | - | - | - | - | - | - | |
FTH-9-01-M | Natural | 4.8 mm | Nylon 6/6 | UL E71558 | 3.18 | 6.35 mm | 0.250 in | UL94 V-2 | Push In | - | 2.0 mm | 85 °C | -40 °C | 10.7 mm | 8.3 mm | 3.18 mm | 8.3 mm | 10.3 mm | 4.8 mm | 10.7 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
FTH-9-01-C
Color
Natural
Maximum Compatible Cable Tie Width
0.190 in
Material
Nylon 6/6
UL/CSA Description
UL E71558
FTH-9-01-M
Color
Natural
Maximum Compatible Cable Tie Width
4.8 mm
Maximum Panel Thickness
3.18
Mounting Hole Diameter
6.35 mm
