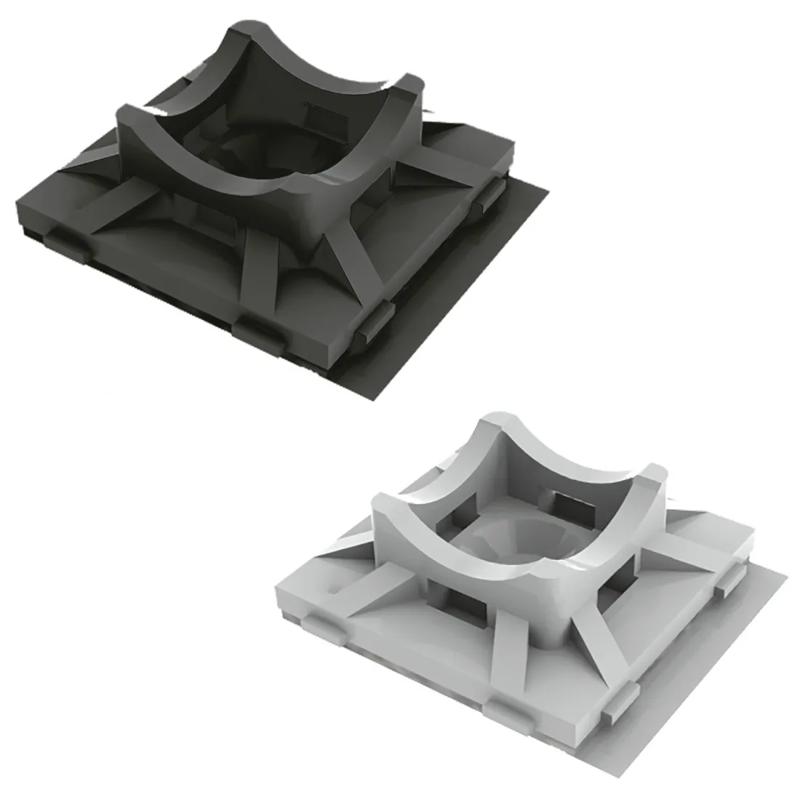

SRFTH-5 - Four Way Cable Tie Mounts
Showing 1-10 of 11
Per page:1-10 of 11
Item Code | Color | Maximum Cable Tie Tensile Strength | Material | Overall Width | Style | Overall Height | Material Flammability Standard | Mounting Method | Minimum Compatible Cable Tie Width | Screw Size | Maximum Compatible Cable Tie Width | Hole Diameter | Overall Length | Minimum Cable Tie Tensile Strength | UL/CSA Description | Adhesive Material | Base Material | Thread Size | Base Height | Maximum Temperature | Mounting Hole Distance | Minimum Temperature | Grip Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-5-01-C | Natural | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Screw | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 mm | 18.0 lb | UL E71558 | - | - | - | - | - | - | - | - | |
FTH-5A-RT-C | Natural | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 mm | 18.0 lb | UL E71558 | Acrylic | Acrylic-Based Adhesive | - | - | - | - | - | - | |
FTH-5A-RT-UVB-C | Black | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 mm | 18.0 lb | UL E71558 | Acrylic | Acrylic-Based Adhesive | - | - | - | - | - | - | |
FTH-5A1-RT-C | Natural | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 mm | 18.0 lb | UL E71558 | Rubber | Rubber-Based Adhesive | - | - | - | - | - | - | |
FTH-5-UVB-C | Black | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Screw | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 mm | 18.0 lb | UL E71558 | - | - | - | - | - | - | - | - | |
FTH-5-DHB | Natural | 40.0 lb | Nylon 6/6 | 19.1 mm | 1 | 6.1 mm | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 0.140 in | 19.1 | 18.0 lb | - | High Bond Acrylic | High-Bond Acrylic-Based Adhesive | - | - | - | - | - | - | |
FTH-5-01-M | Natural | - | Nylon 6/6 | 19.1 | 1 | 6.1 | UL94 V-2 | Screw | - | - | - | 0.140 in | 19.1 | - | UL E71558 | - | - | #6, M3.5 | - | - | - | - | - | |
FTH-5A-RT-UVB-M | Black | 40.0 lb | Nylon 6/6 | 19.1 | 1 | 6.1 | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 3.6 | 19.1 | 18.0 lb | UL E71558 | Acrylic | Acrylic-Based Adhesive | - | 6.1 mm | - | - | - | - | |
FTH-5A1-RT-M | Natural | 40.0 lb | Nylon 6/6 | 19.1 | 1 | 6.1 | UL94 V-2 | Adhesive | 0.098 in | #6, M3.5 | 0.142 in | 4.3 | 19.1 | 18.0 lb | UL MH16770 | Rubber | Rubber-Based Adhesive | - | 6.1 mm | 95 °C | 16.0 mm | -40 °C | - |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
FTH-5-01-C
Color
Natural
Maximum Cable Tie Tensile Strength
40.0 lb
Material
Nylon 6/6
Overall Width
19.1 mm
FTH-5A-RT-C
Color
Natural
Maximum Cable Tie Tensile Strength
40.0 lb
Overall Width
19.1 mm
Adhesive Material
Acrylic
FTH-5A-RT-UVB-C
Color
Black
Maximum Cable Tie Tensile Strength
40.0 lb
Overall Width
19.1 mm
Adhesive Material
Acrylic
FTH-5A1-RT-C
Color
Natural
Maximum Cable Tie Tensile Strength
40.0 lb
Overall Width
19.1 mm
Adhesive Material
Rubber
Per page:
1–5 of 12
