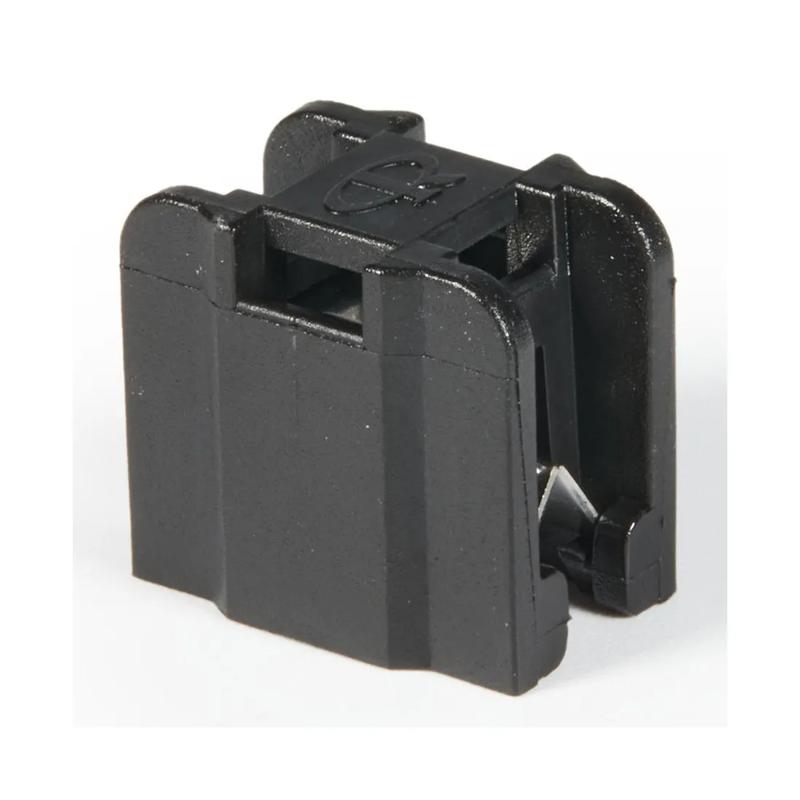

SRFTH-31 - Edge Mount Cable Tie Mounts
Showing 1-1 of 1
Per page:1-1 of 1

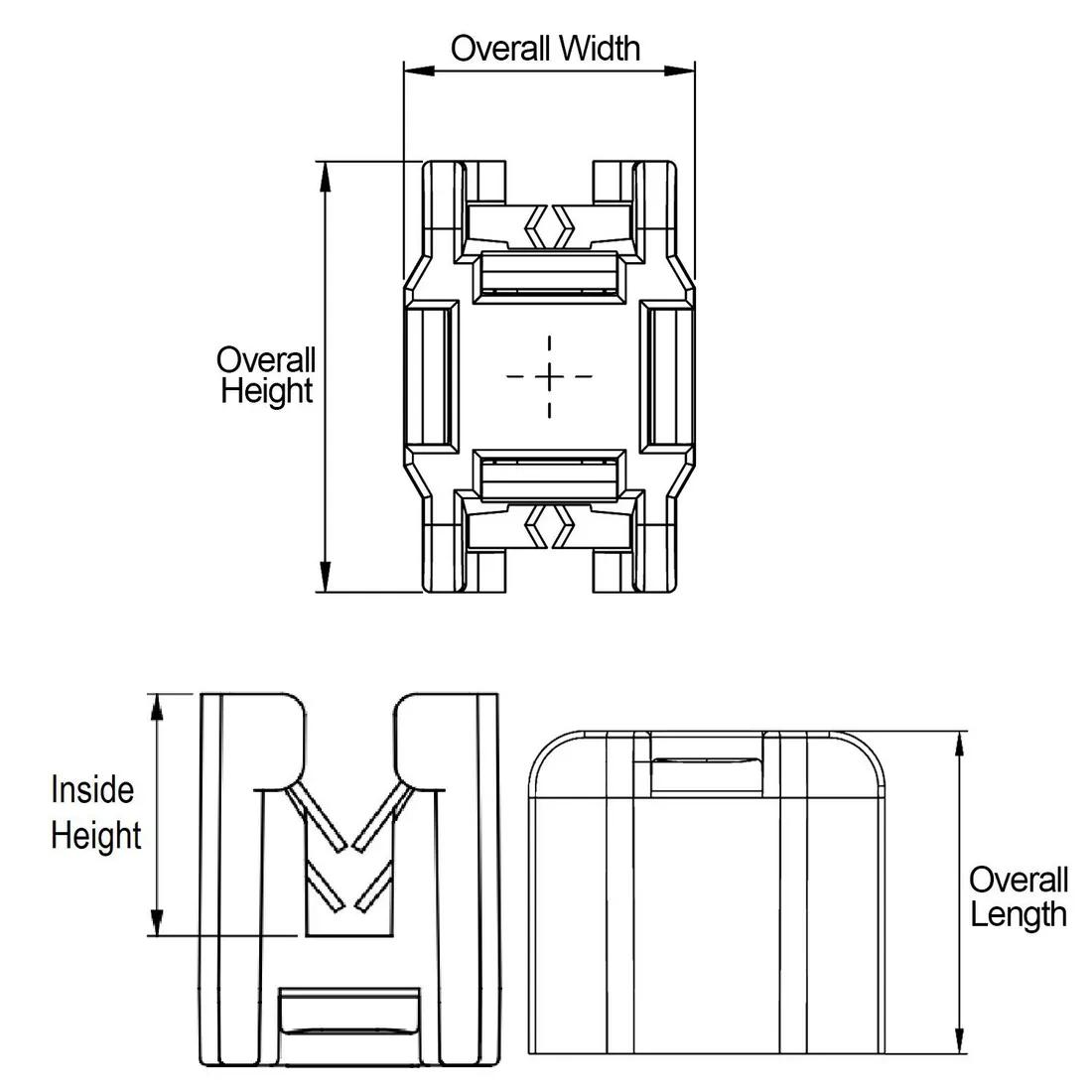

Item Code | Color | Inside Height | Overall Width | Overall Length | Maximum Panel Thickness | Grip Material | Grade | Material Flammability Standard | Mounting Method | Cover Material | Material | Minimum Panel Thickness | Overall Height | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-31-01 | Black | 9.0 mm | 10.8 | 14.5 | 3.0 | 304 Stainless Steel | AISI 302 | UL94 V-2 | Edge Mount | Nylon 6/6 | Nylon 6/6;Stainless Seel | 0.8 | 16.0 | 4.8 mm |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
FTH-31-01
Color
Black
Inside Height
9.0 mm
Overall Width
10.8
Overall Length
14.5
