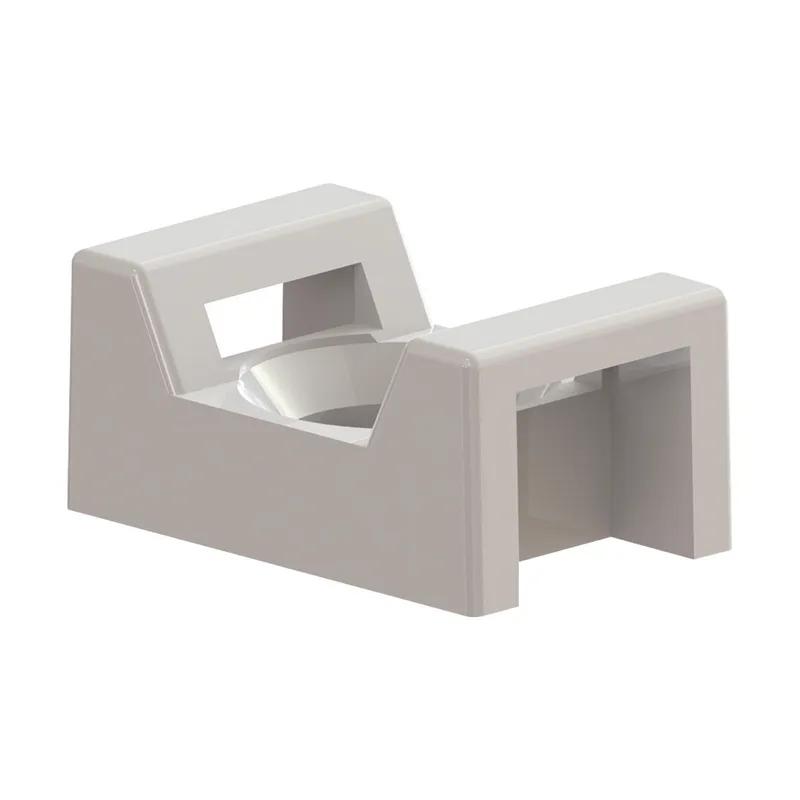

SRFTH-14 - Rivet/Screw Mount Cable Tie Mounts
Showing 1-4 of 4
Per page:1-4 of 4

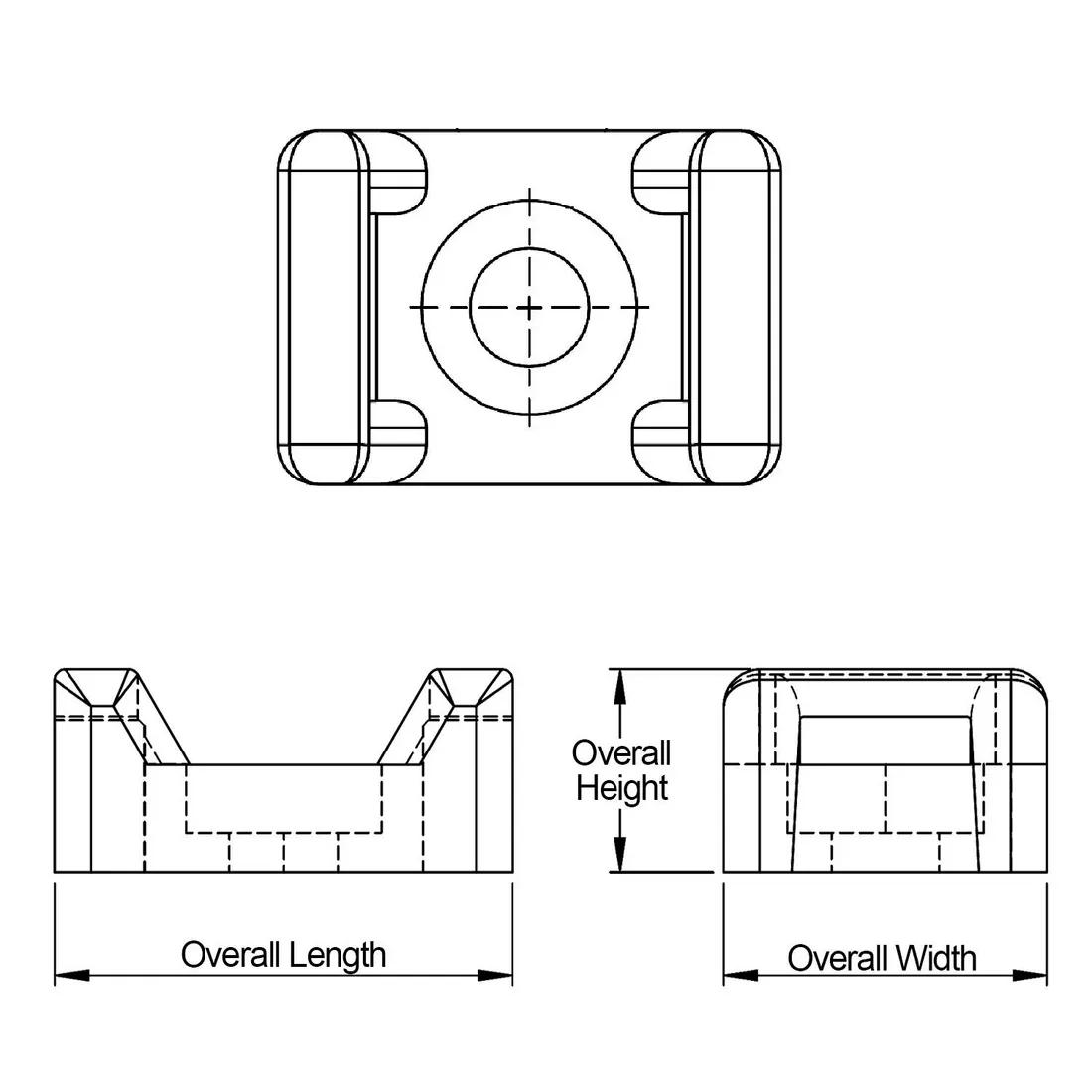

Item Code | Color | Material | Overall Width | Overall Height | Material Flammability Standard | Mounting Method | Minimum Compatible Cable Tie Width | Screw Size | Maximum Compatible Cable Tie Width | Hole Diameter | Overall Length | UL/CSA Description | Style | Outside Diameter | Mounting Hole Diameter | Thread Size | Cable Diameter | Cable Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FTH-14S-01-C | Natural | Nylon 6/6 | 0.620 in | 0.390 in | UL94 V-2 | Screw | 0.098 in | 1/4 in, M6 | 0.300 in | 0.260 | 0.880 in | UL E71558 | 1 | 0.490 in | - | - | - | - | |
FTH-14R-01-C | Natural | Nylon 6/6 | 0.620 in | 0.390 in | UL94 V-2 | Screw-In & Rivet | 0.098 in | #10, M5 | 0.300 in | 0.210 in | 0.880 in | UL E71558 | 1 | 0.380 in | - | - | - | - | |
FTH-14S-01-M | Natural | Nylon 6/6 | 15.7 | 9.8 | UL94 V-2 | Screw | - | M6 | 8.2 mm | 0.26 in | 22.2 | UL E70062 | 1 | 0.490 in | 6.6 mm | M6 | 12.5 mm | 8.2 mm | |
FTH-14R-01-M | Natural | Nylon 6/6 | 15.7 | 9.8 | UL94 V-2 | Screw-In & Rivet | - | M5 | 8.2 mm | 0.210 in | 22.2 | UL E70062 | 1 | 0.380 in | 5.2 mm | M5 | 9.5 mm | 8.2 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
FTH-14S-01-C
Color
Natural
Material
Nylon 6/6
Overall Width
0.620 in
Overall Height
0.390 in
FTH-14R-01-C
Color
Natural
Material
Nylon 6/6
Overall Width
0.620 in
Overall Height
0.390 in
FTH-14S-01-M
Color
Natural
Overall Width
15.7
Mounting Hole Diameter
6.6 mm
Material Flammability Standard
UL94 V-2
FTH-14R-01-M
Color
Natural
Overall Width
15.7
Mounting Hole Diameter
5.2 mm
Material Flammability Standard
UL94 V-2
