SR23TAHL - Hook & Loop and Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2

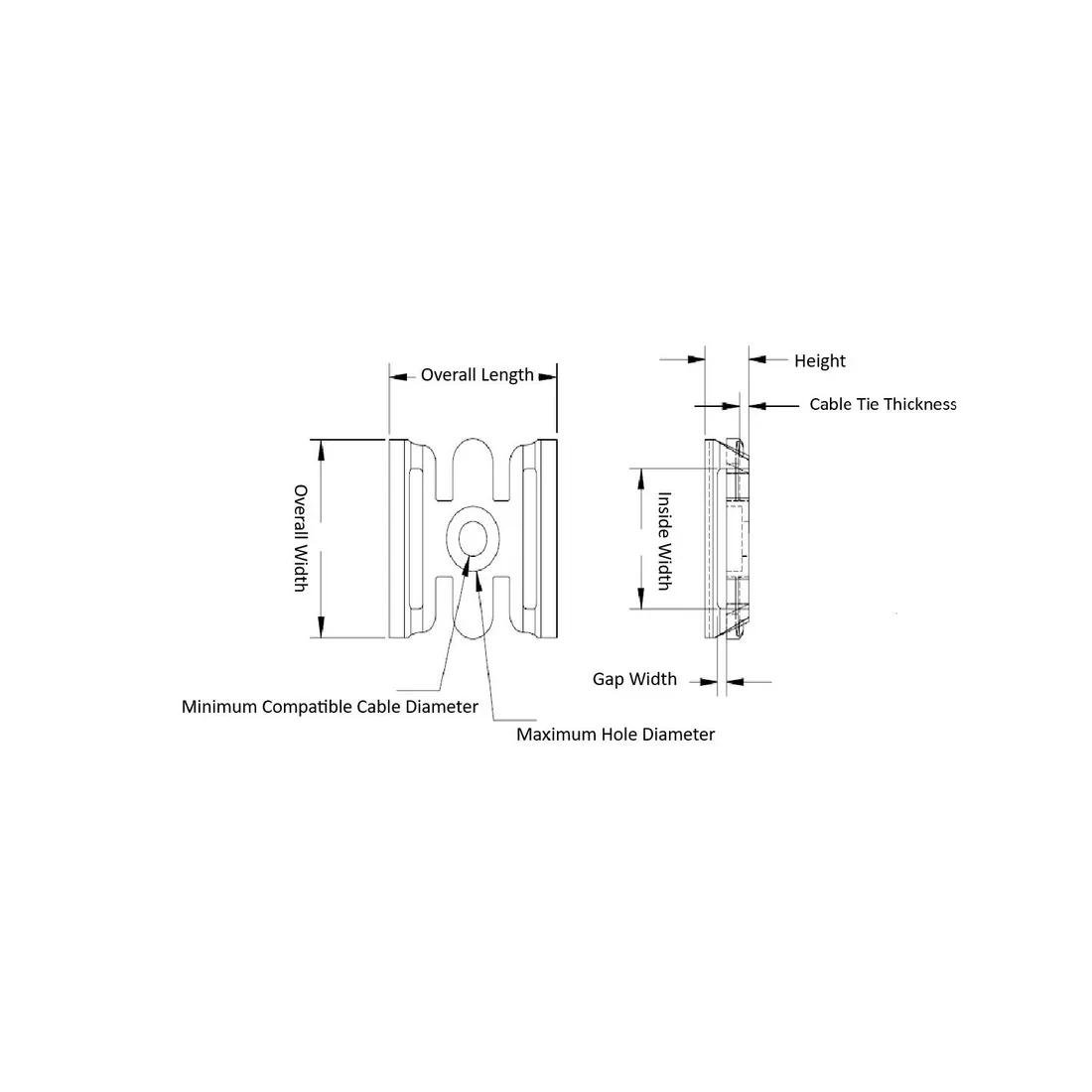

Item Code | Mounting Thread Length | Material Flammability Standard | Maximum Compatible Cable Tie Width | Material | Overall Width | Overall Length | Mounting Hole Diameter | Screw Head Diameter | Overall Height | Minimum Compatible Cable Diameter | Screw Head Height | Cable Tie Thickness | Color | Gland Form | Maximum Compatible Cable Diameter | Maximum Hole Diameter | Gap Width | Height | Inside Width | Minimum Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23TAHL110340 | 1.240 in | UL94 V-2 | 0.850 in | Nylon 6/6 | 1.235 in | 1.200 in | 0.210 in | 0.392 in | 0.325 in | 0.210 in | 0.125 in | 0.070 in | Natural | Cradle Mount | 0.392 in | - | - | - | - | - | |
23TAHL110340B | 1.240 in | - | - | Nylon 6/6 | 1.200 in | 1.235 in | - | - | - | 0.210 in | - | - | Black | Cradle Mount | 0.392 in | 0.392 in | 0.070 in | 0.325 in | 0.850 in | 0.310 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
23TAHL110340
Mounting Thread Length
1.240 in
Material Flammability Standard
UL94 V-2
Maximum Compatible Cable Tie Width
0.850 in
Material
Nylon 6/6
23TAHL110340B
Mounting Thread Length
1.240 in
Minimum Compatible Cable Diameter
0.210 in
Color
Black
Maximum Hole Diameter
0.392 in
