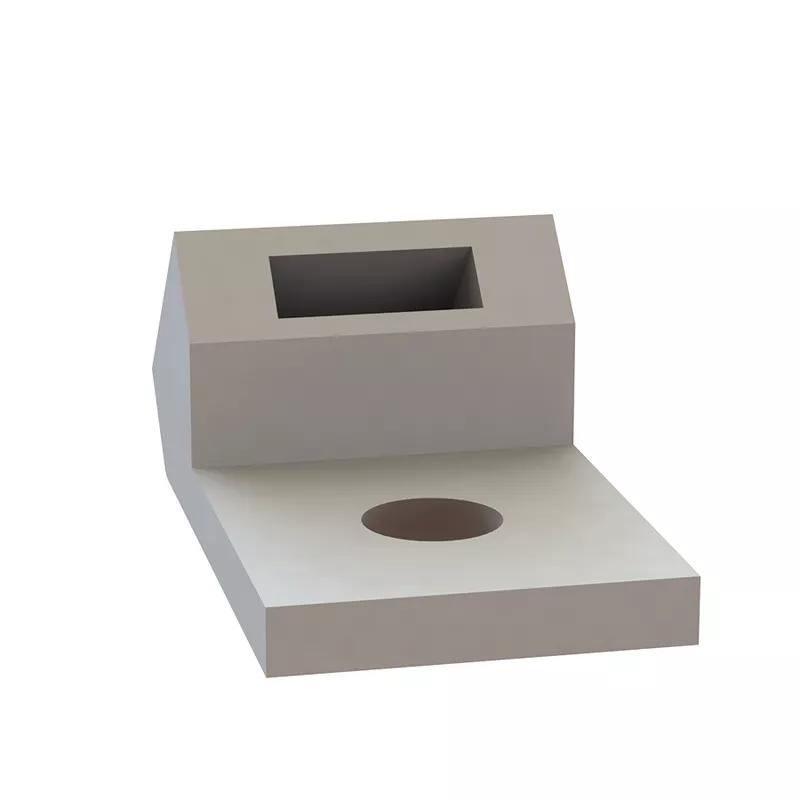

SR23TA - Screw Mount Cable Tie Mounts
Showing 1-4 of 4
Per page:1-4 of 4

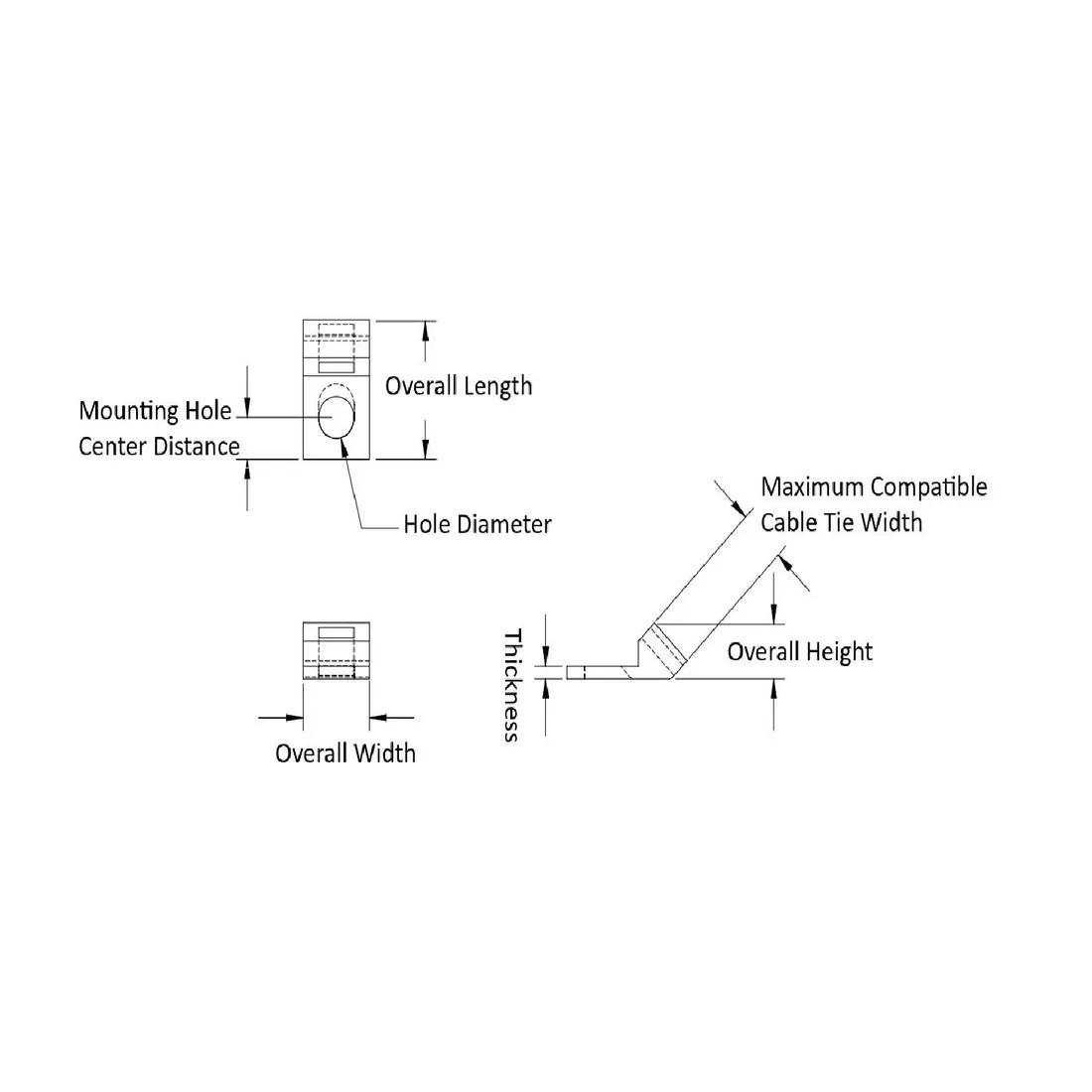

Item Code | Color | Material | Overall Width | Overall Length | Thickness | Mounting Hole Center Distance | Overall Height | Material Flammability Standard | Mounting Method | Screw Size | Maximum Compatible Cable Tie Width | Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23TA207167 | Natural | Nylon 6/6 | 0.375 in | 0.671 in | 0.062 in | 0.203 in | 0.265 in | UL94 V-2 | Screw | #8, M4 | 0.200 in | 0.167 in | |
23TA207128 | Natural | Nylon 6/6 | 0.375 in | 0.671 in | 0.062 in | 0.203 in | 0.265 in | UL94 V-2 | Screw | #4, M3 | 0.200 in | 0.128 in | |
23TA207140 | Natural | Nylon 6/6 | 0.375 in | 0.671 in | 0.062 in | 0.203 in | 0.265 in | UL94 V-2 | Screw | #6, M3.5 | 0.200 in | 0.140 in | |
23TA207203 | Natural | Nylon 6/6 | 0.375 in | 0.671 in | 0.062 in | 0.203 in | 0.265 in | UL94 V-2 | Screw | #10, M5 | 0.200 in | 0.203 in |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
23TA207167
Color
Natural
Material
Nylon 6/6
Overall Width
0.375 in
Overall Length
0.671 in
23TA207128
Color
Natural
Material
Nylon 6/6
Overall Width
0.375 in
Overall Length
0.671 in
23TA207140
Color
Natural
Material
Nylon 6/6
Overall Width
0.375 in
Overall Length
0.671 in
23TA207203
Color
Natural
Material
Nylon 6/6
Overall Width
0.375 in
Overall Length
0.671 in
