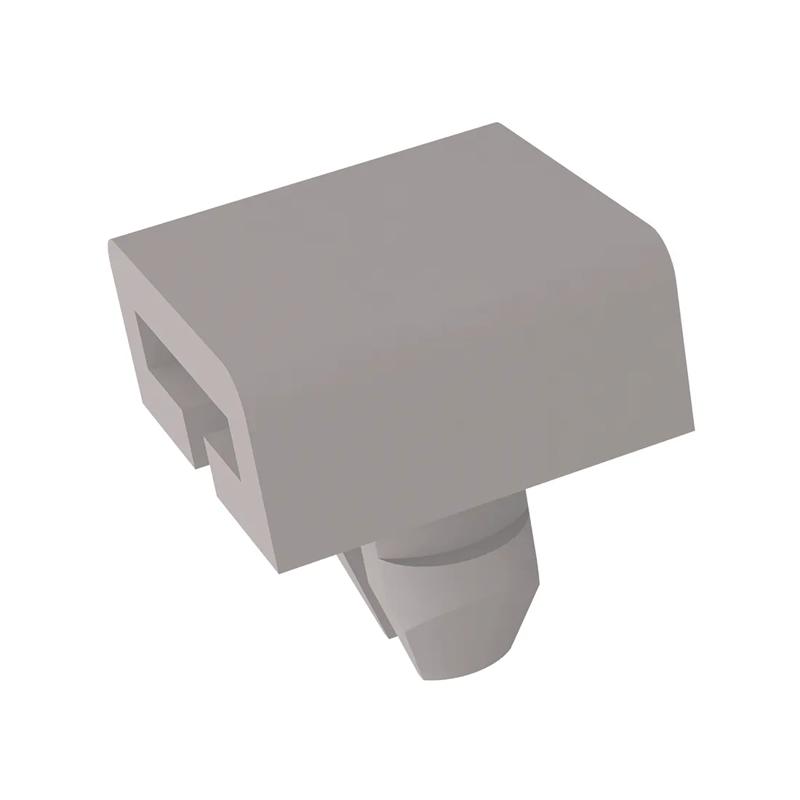

SR23TA - Push In Cable Tie Mounts
Showing 1-6 of 6
Per page:1-6 of 6

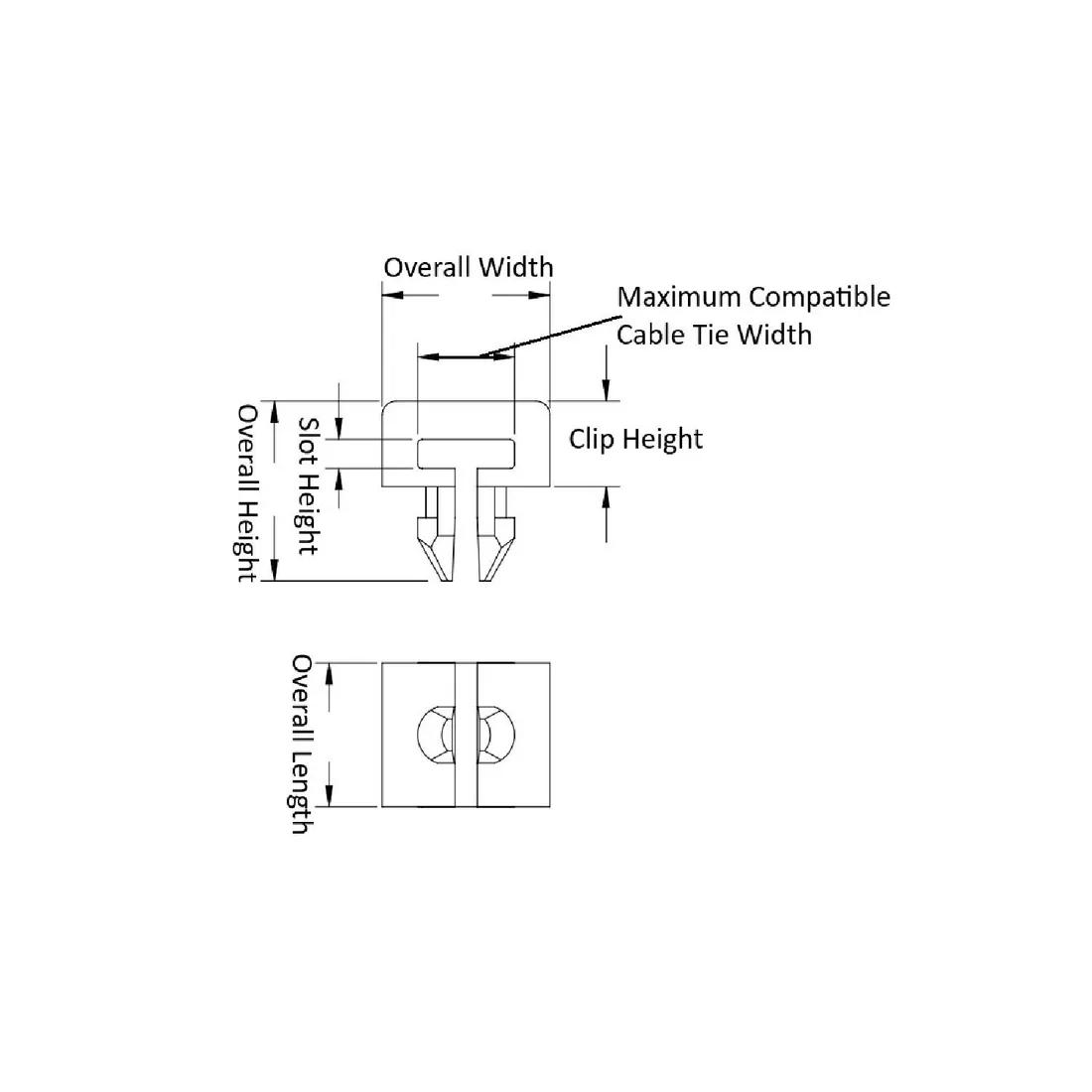

Item Code | Color | Maximum Compatible Cable Tie Width | Material | Overall Width | Overall Length | Maximum Panel Thickness | Mounting Hole Diameter | Compatible Hole Diameter | Material Flammability Standard | Mounting Method | Maximum Tensile Strength | Overall Height | Clip Height | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23TA00110B | Black | 5.6 mm | Nylon 6/6 | 8.1 mm | 10.2 mm | 1.6 mm | 4.8 mm | 0.252 in | UL94 V-2 | Push-In | 50.0 lb | 10.2 mm | 4.8 mm | - | |
23TA00090B | Black | 5.6 mm | Nylon 6/6 | 8.1 mm | 8.9 mm | 1.6 mm | 4.8 mm | 0.189 in | UL94 V-2 | Push-In | 18.0 lb | 8.9 mm | 3.8 mm | - | |
23TA00100B | Black | 5.6 mm | Nylon 6/6 | 8.1 mm | 10.2 mm | 1.6 mm | 6.4 mm | 0.189 in | UL94 V-2 | Push-In | 50.0 lb | 10.2 mm | 4.8 mm | - | |
23TA00100 | Natural | 5.6 mm | Nylon 6/6 | 8.1 mm | 9.7 mm | 1.6 mm | 4.8 mm | 0.189 in | UL94 V-2 | Push-In | 120.0 lb | 10.2 mm | 4.8 mm | 8.1 mm | |
23TA00090 | Natural | 5.6 mm | Nylon 6/6 | 8.1 mm | 8.1 mm | 1.6 mm | 4.8 mm | 0.189 in | UL94 V-2 | Push-In | 18.0 lb | 8.9 mm | 3.8 mm | 8.1 mm | |
23TA00110 | Natural | 5.6 mm | Nylon 6/6 | 8.1 mm | 9.7 mm | 1.6 mm | 6.4 mm | 0.252 in | UL94 V-2 | Push-In | 120.0 lb | 10.2 mm | 4.8 mm | 8.1 mm |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
23TA00110B
Color
Black
Maximum Compatible Cable Tie Width
5.6 mm
Material
Nylon 6/6
Overall Width
8.1 mm
23TA00090B
Color
Black
Maximum Compatible Cable Tie Width
5.6 mm
Material
Nylon 6/6
Overall Width
8.1 mm
23TA00100B
Color
Black
Maximum Compatible Cable Tie Width
5.6 mm
Material
Nylon 6/6
Overall Width
8.1 mm
23TA00100
Color
Natural
Maximum Compatible Cable Tie Width
5.6 mm
Material
Nylon 6/6
Overall Width
8.1 mm
