SR23TA - Low Profile Screw Mount Cable Tie Mounts
Showing 1-1 of 1
Per page:1-1 of 1

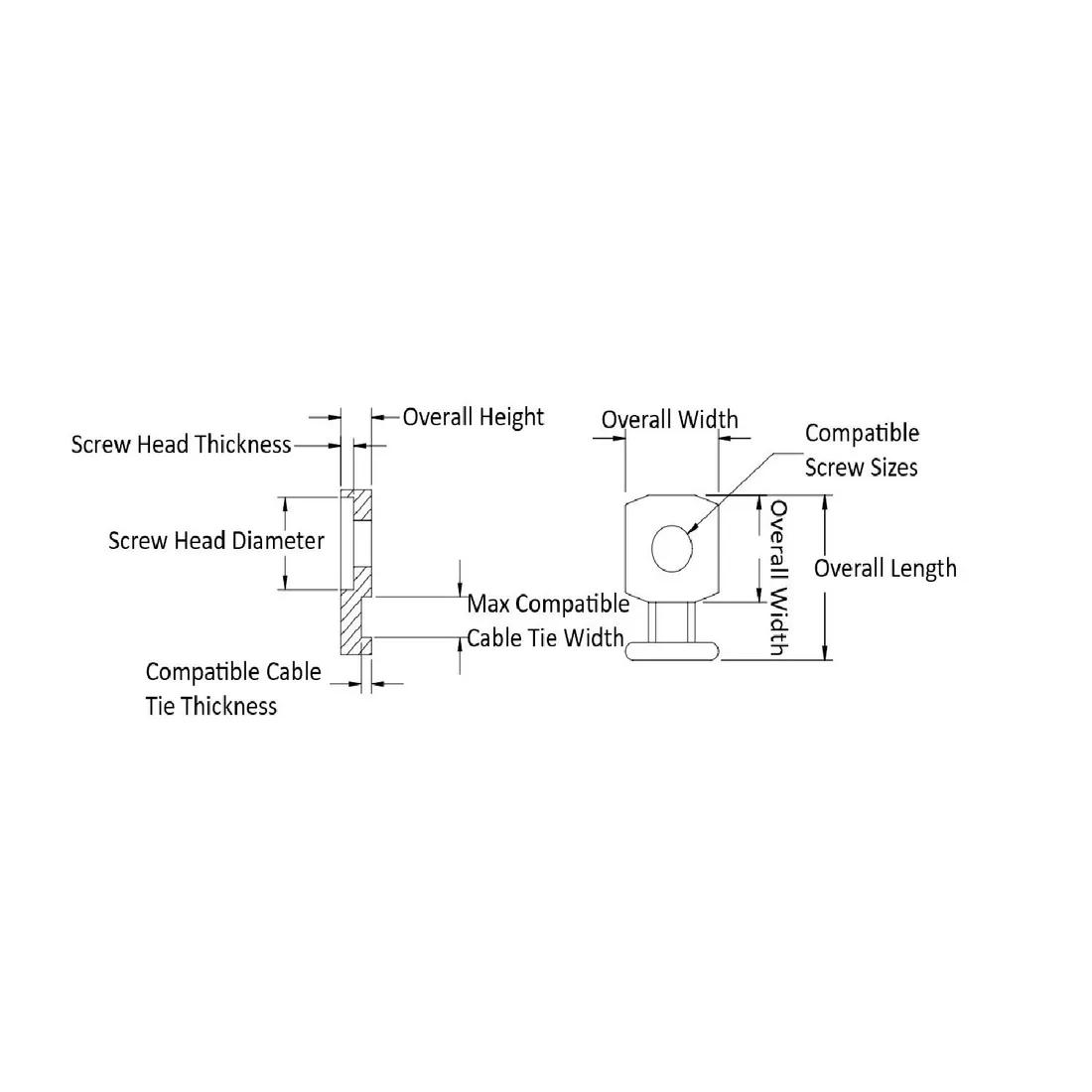

Item Code | Color | Material | Overall Width | Overall Length | Compatible Cable Tie Thickness | Screw Head Diameter | Screw Head Thickness | Overall Height | Material Flammability Standard | Mounting Method | Screw Size | Maximum Compatible Cable Tie Width | Hole Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23TA00250 | Natural | Nylon 6/6 | 0.578 in | 0.890 in | 0.062 in | 0.500 in | 0.080 in | 0.187 in | UL94 V-2 | Screw | 1/4-20 | 0.218 in | 0.250 in |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
23TA00250
Color
Natural
Material
Nylon 6/6
Overall Width
0.578 in
Overall Length
0.890 in
