SR23TA - Four Way Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2

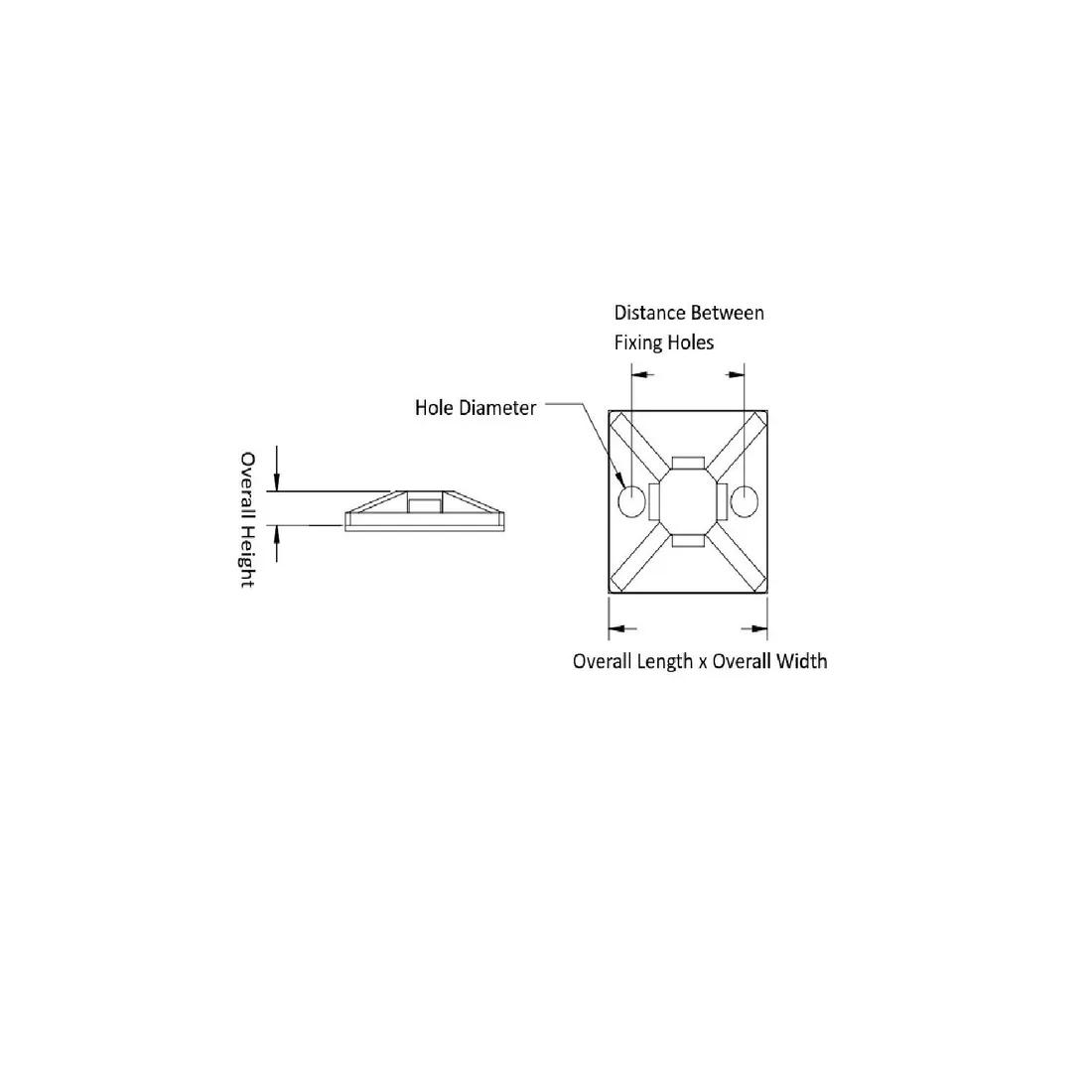

Item Code | Color | Maximum Cable Tie Tensile Strength | Hole Diameter | Overall Length | Base Height | Overall Height | Material Flammability Standard | Mounting Method | Screw Size | Material | Base Material | Overall Width | Distance Between Fixing Holes | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23TA00400B | Black | 50.0 lb | 4.3 mm | 25.4 mm | 4.8 mm | 4.8 mm | UL94 V-2 | Adhesive | #8, M4 | Nylon 6/6 | Rubber-Based Adhesive | 25.4 mm | 18.0 mm | |
23TA00420B | Black | 50.0 lb | 4.3 mm | 1.000 in | 4.8 mm | 0.188 in | UL94 V-2 | Screw | #8, M4 | Nylon 6/6 | Rubber-Based Adhesive | 1.000 in | 18.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
23TA00400B
Color
Black
Maximum Cable Tie Tensile Strength
50.0 lb
Hole Diameter
4.3 mm
Overall Length
25.4 mm
23TA00420B
Color
Black
Maximum Cable Tie Tensile Strength
50.0 lb
Hole Diameter
4.3 mm
Overall Length
1.000 in
