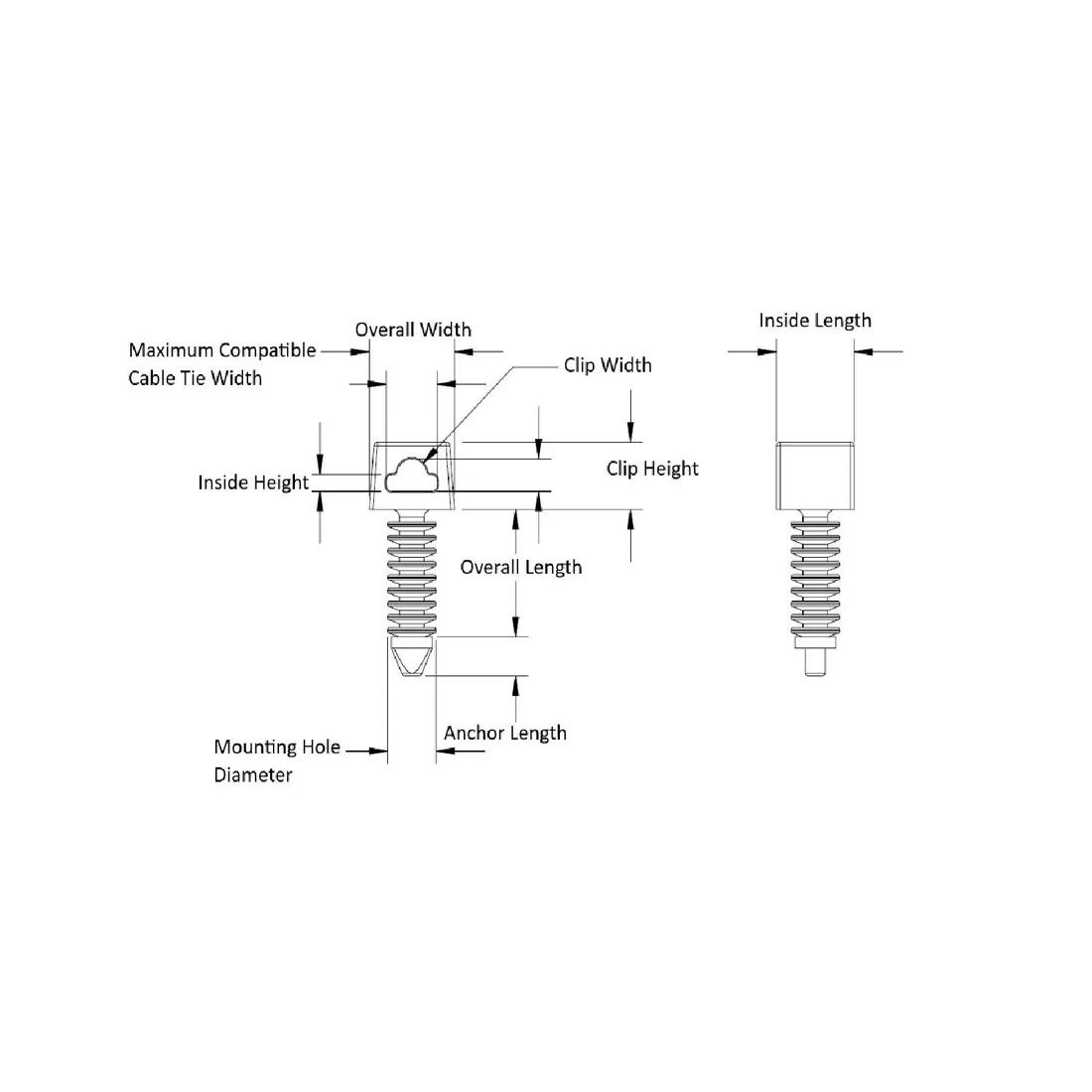

SR23FCPM - Fin Clip Cable Tie Mounts
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Color | Maximum Cable Tie Tensile Strength | Maximum Compatible Cable Tie Width | Material | Overall Width | Hole Size | Overall Height | Overall Length | Anchor Length | Mounting Hole Diameter | Inside Length | Clip Width | Inside Width | Mounting Method | Inside Height | Clip Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
23FCPM18765 | Black | 50.0 lb | 0.210 in | HDPE | 0.350 in | 0.188 in | 1.310 in | 0.490 | 0.150 in | - | - | - | - | - | - | - | |
23FCPM25095 | Black | 50.0 lb | 0.320 in | HDPE | 0.500 in | 6.4 mm | 1.215 in | 12.7 mm | 0.180 in | 0.250 in | 0.320 in | 0.500 in | 0.400 in | Fir Tree | 0.130 in | 0.285 in |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
23FCPM18765
Color
Black
Maximum Cable Tie Tensile Strength
50.0 lb
Maximum Compatible Cable Tie Width
0.210 in
Material
HDPE
23FCPM25095
Color
Black
Maximum Compatible Cable Tie Width
0.320 in
Material
HDPE
Overall Width
0.500 in
