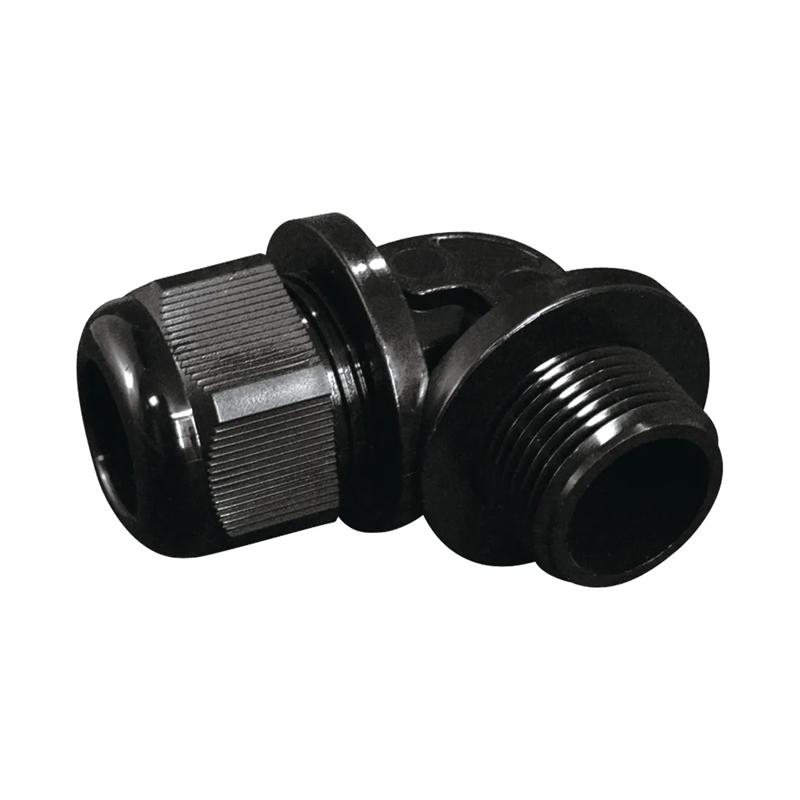

SRCGRA - 90 NPT Cable Glands

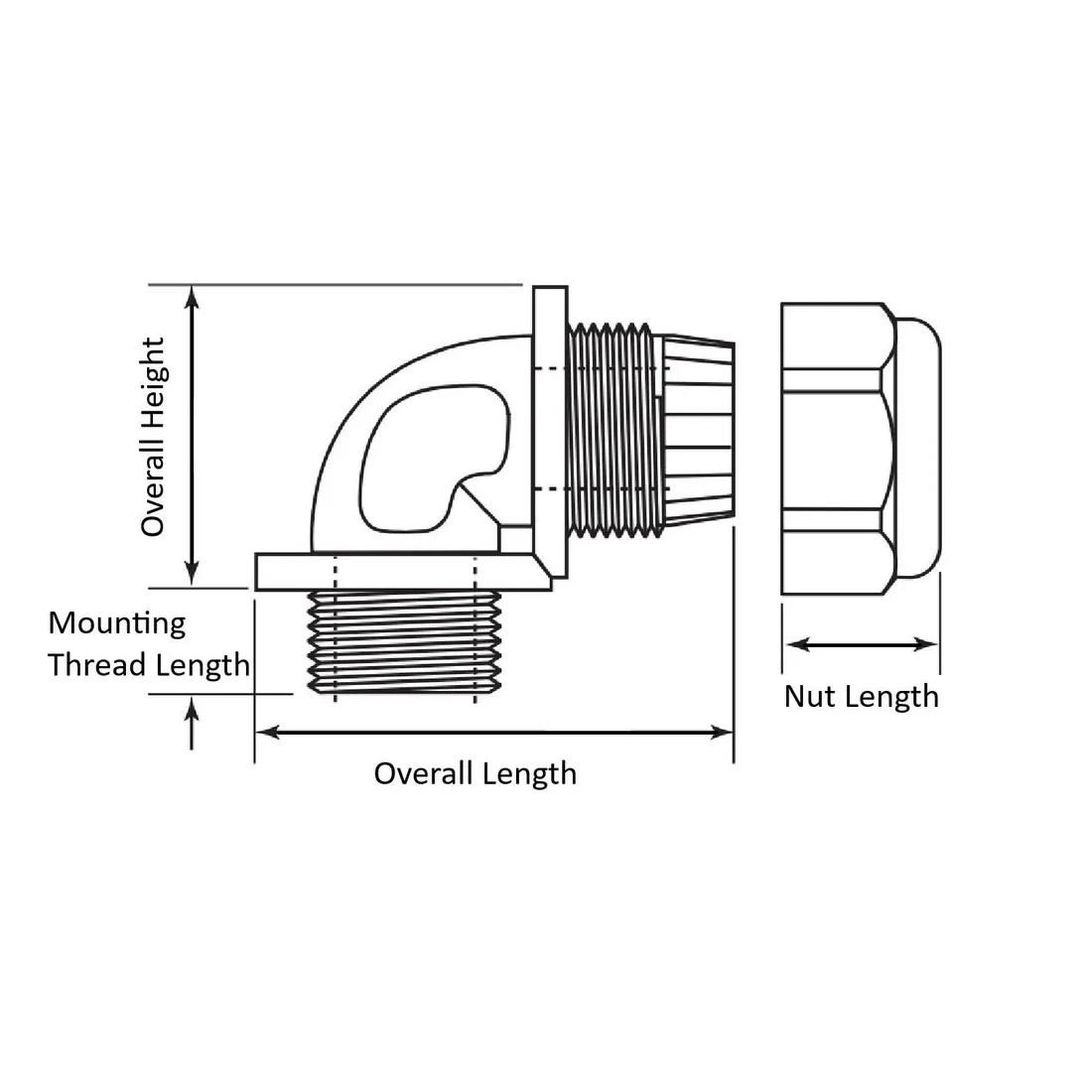

Item Code | Mounting Thread Length | Maximum Overall Length | Material Flammability Standard | Minimum Compatible Cable Diameter | Color | Overall Length | Mounting Hole Diameter | Thread Type | Maximum Compatible Cable Diameter | Nut Length | Minimum Overall Length | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CGRA015A | 0.579 in | - | UL94 V-2 | 0.393 in | Black | 2.031 in | 0.875 in | NPT | 0.512 | 0.724 in | - | 1.228 in | 105 °C | -40 °C | 1/2 in NPT | Nylon 6/6 | |
CGRA011A | 0.461 in | - | UL94 V-2 | 0.197 in | Black | 1.909 in | 0.687 in | NPT | 0.354 | 0.657 in | - | 1.181 in | 105 °C | -40 °C | 3/8 in NPT | Nylon 6/6 | |
CGRA018A | 0.583 in | - | UL94 V-2 | 0.512 in | Black | 2.539 in | 1.0625 in | NPT | 0.630 | 0.878 in | - | 1.683 in | 105 °C | -40 °C | 3/4 in NPT | Nylon 6/6 |
CGRA015A
Mounting Thread Length
0.579 in
Maximum Overall Length
{"es-MX":"","en-US":"","pt-BR":""}
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
0.393 in
CGRA011A
Mounting Thread Length
0.461 in
Maximum Overall Length
{"es-MX":"","en-US":"","pt-BR":""}
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
0.197 in
CGRA018A
Mounting Thread Length
0.583 in
Maximum Overall Length
{"es-MX":"","en-US":"","pt-BR":""}
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
0.512 in
