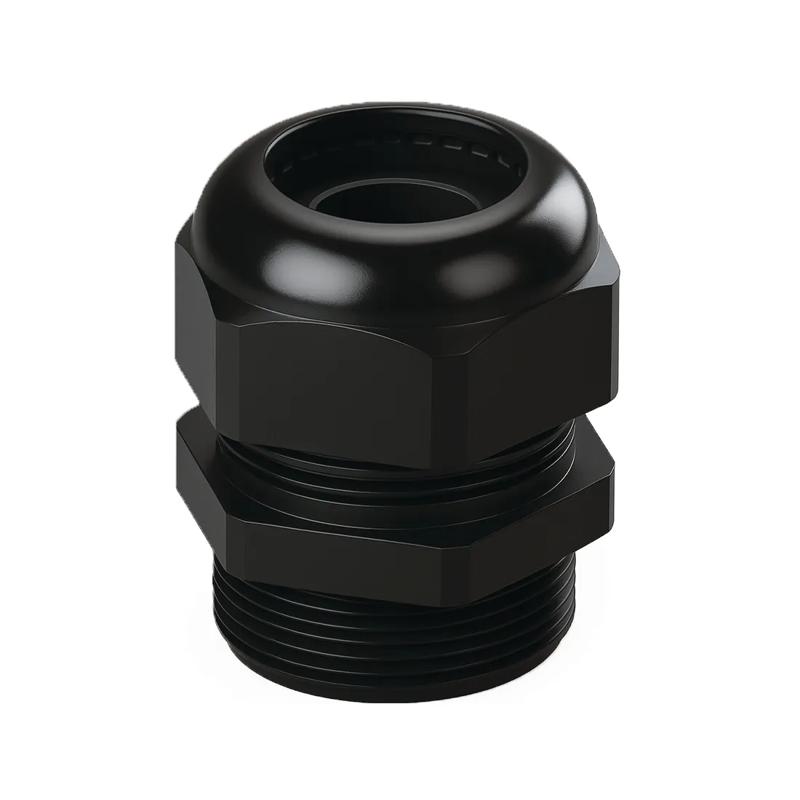

SRCG-PG - PG Cable Glands

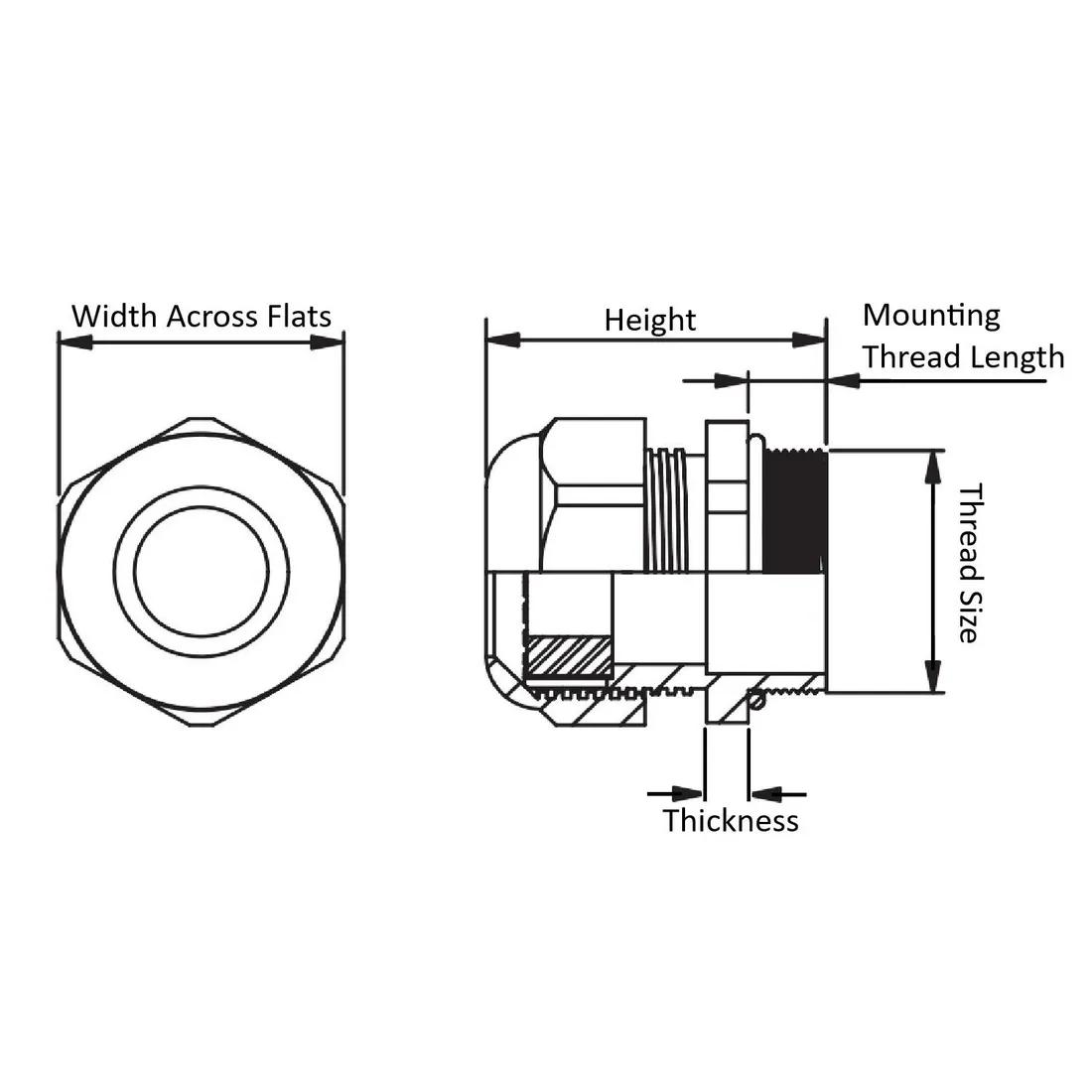

Item Code | Mounting Thread Length | Material Flammability Standard | Minimum Compatible Cable Diameter | Color | O-Ring Material | Sealing Gland Material | Mounting Hole Diameter | Thread Type | Maximum Compatible Cable Diameter | Minimum Overall Length | Maximum Operating Temperature | Maximum Overall Length | Width Across Flats | Minimum Operating Temperature | Thread Size | Material | Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CG-PG21-1-BK | 11.0 mm | UL94 V-2 | 9.0 mm | Black | NBR | CR, NBR | 28.6 mm | PG | 16.0 mm | - | 100 °C | - | 33.0 mm | -20 °C | PG 21 | Nylon 6 | - | |
CG-PG16-1-BK | 10.0 mm | UL94 V-2 | 10.0 mm | Black | NBR | CR, NBR | 22.8 mm | PG | 14.0 mm | - | 100 °C | - | 27.0 mm | -20 °C | PG 16 | Nylon 6 | - | |
CG-PG11-1-BK | 8.0 mm | UL94 V-2 | 3.0 mm | Black | NBR | CR, NBR | 18.8 mm | PG | 7.0 mm | - | 100 °C | - | 22.0 mm | -20 °C | PG 11 | Nylon 6 | - | |
CG-PG29-1-BK | 11.0 mm | UL94 V-2 | 12.0 mm | Black | NBR | CR, NBR | 37.4 mm | PG | 20.0 mm | - | 100 °C | - | 42.0 mm | -20 °C | PG 29 | Nylon 6 | - | |
CG-PG36-2-BK | 13.0 mm | UL94 V-2 | 22.0 mm | Black | NBR | CR, NBR | 47.5 mm | PG | 32.0 mm | - | 100 °C | - | 53.0 mm | -20 °C | PG 36 | Nylon 6 | - | |
CG-PG21-2-BK | 11.0 mm | UL94 V-2 | 13.0 mm | Black | NBR | CR, NBR | 28.6 mm | PG | 18.0 mm | - | 100 °C | - | 33.0 mm | -20 °C | PG 21 | Nylon 6 | - | |
CG-PG9-1-BK | 8.0 mm | UL94 V-2 | 2.0 mm | Black | NBR | CR, NBR | 15.4 mm | PG | 6.0 mm | - | 100 °C | - | 19.0 mm | -20 °C | PG 9 | Nylon 6 | - | |
CG-PG9-2-BK | 8.0 mm | UL94 V-2 | 4.0 mm | Black | NBR | CR, NBR | 15.4 mm | PG | 8.0 mm | - | 100 °C | - | 19.0 mm | -20 °C | PG 9 | Nylon 6 | - | |
CG-PG13.5-1-BK | 9.0 mm | UL94 V-2 | 6.0 mm | Black | NBR | CR, NBR | 20.7 mm | PG | 12.0 mm | - | 100 °C | - | 24.0 mm | -20 °C | PG 13.5 | Nylon 6 | - |
CG-PG21-1-BK
Mounting Thread Length
11.0 mm
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
9.0 mm
Color
Black
CG-PG16-1-BK
Mounting Thread Length
10.0 mm
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
10.0 mm
Color
Black
CG-PG11-1-BK
Mounting Thread Length
8.0 mm
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
3.0 mm
Color
Black
CG-PG29-1-BK
Mounting Thread Length
11.0 mm
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
12.0 mm
Color
Black
