SRCG-NPT - NPT Cable Glands
Showing 1-10 of 13
Per page:1-10 of 13

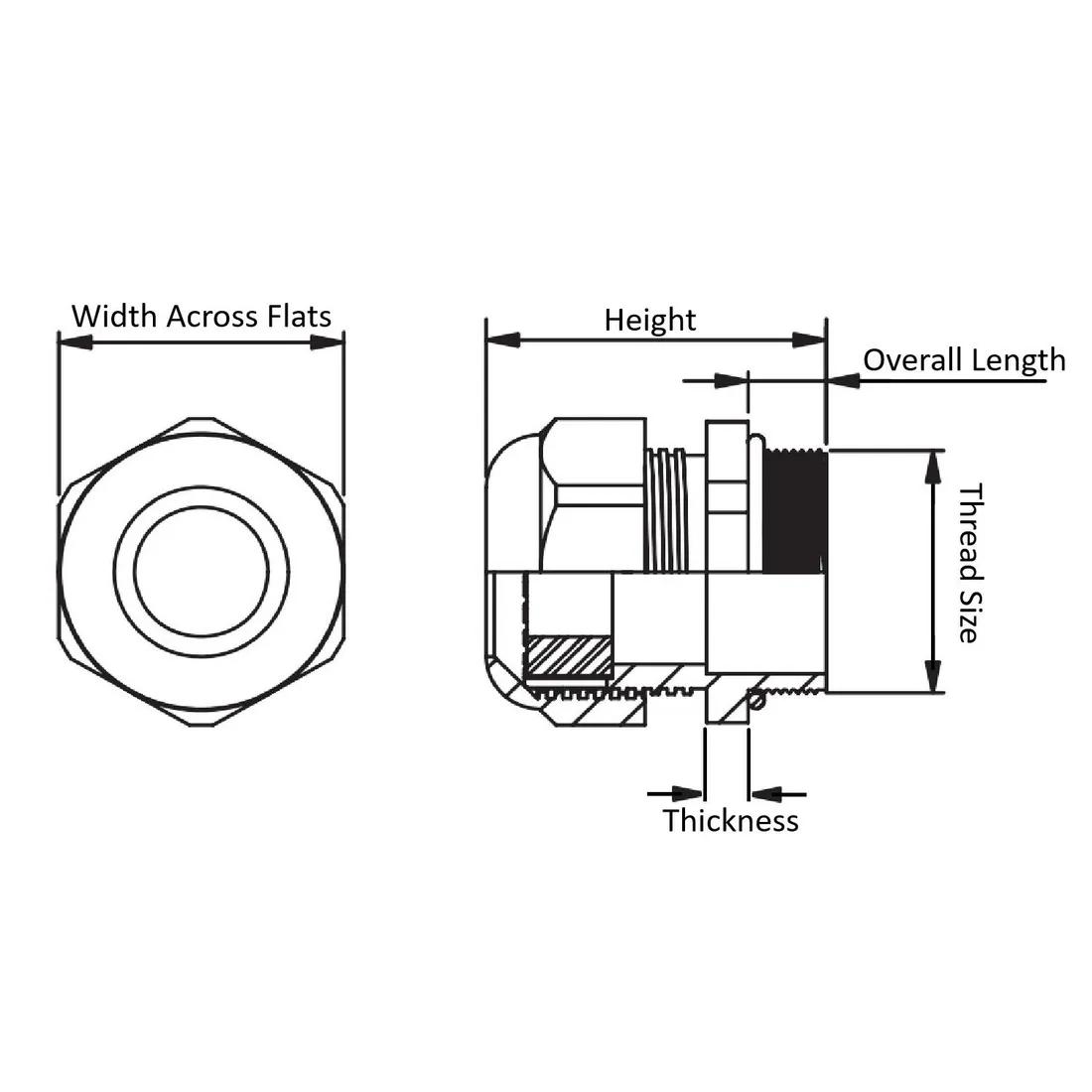

Item Code | Material Flammability Standard | Color | Thread Type | Thickness | Minimum Overall Length | Maximum Operating Temperature | Maximum Overall Length | Width Across Flats | Minimum Operating Temperature | Thread Size | Material | Minimum Compatible Cable Diameter | O-Ring Material | Sealing Gland Material | Overall Length | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CGLN-NPT-3/4-BK | UL94 V-2 | Black | NPT | 0.236 | - | 105 °C | - | 1.063 in | -40 °C | 3/4 in NPT | Nylon 6/6 | - | - | - | - | - | - | |
CGLN-NPT-1/2-BK | UL94 V-2 | Black | NPT | 0.276 | - | 105 °C | - | 1.417 in | -40 °C | 1/2 in NPT | Nylon 6/6 | - | - | - | - | - | - | |
CG-NPT-1/2-2-BK | UL94 V-2 | Black | NPT | - | - | 212 °F | - | 1.063 in | -4 °F | 1/2 in NPT | Nylon 6 | 0.276 in | NBR | CR, NBR | 0.591 | 0.875 in | 0.472 | |
CGLN-NPT-3/8-BK | UL94 V-2 | Black | NPT | 0.197 | - | 105 °C | - | 0.866 in | -40 °C | 3/8 in NPT | Nylon 6/6 | - | - | - | - | - | - | |
CG-NPT-1/2-3-BK | UL94 V-2 | Black | NPT | - | - | 212 °F | - | 1.063 in | -4 °F | 1/2 in NPT | Nylon 6 | 0.394 in | NBR | CR, NBR | 0.591 | 0.875 in | 0.551 | |
CGLN-NPT-1-BK | UL94 V-2 | Black | NPT | 0.276 | - | 212 °F | - | 1.654 in | -4 °F | 1 in NPT | Nylon 6 | - | - | - | - | - | - | |
CG-NPT-1-2-BK | UL94 V-2 | Black | NPT | - | - | 212 °F | - | 1.654 in | -4 °F | 1 in NPT | Nylon 6 | 0.748 in | NBR | CR, NBR | 0.709 | 1.350 in | 0.984 | |
CG-NPT-3/4-2-BK | UL94 V-2 | Black | NPT | - | - | 212 °F | - | 1.299 in | -4 °F | 3/4 in NPT | Nylon 6 | 0.551 in | NBR | CR, NBR | 0.591 | 1.068 in | 0.709 | |
CG-NPT-3/8-2-BK | UL94 V-2 | Black | NPT | - | - | 212 °F | - | 0.866 in | -4 °F | 3/8 in NPT | Nylon 6 | 0.197 in | NBR | CR, NBR | 0.571 | 0.670 in | 0.394 |
Per page:
1-10 of 13
1–5 of 13 variants
Per page:
CGLN-NPT-3/4-BK
Material Flammability Standard
UL94 V-2
Color
Black
Thread Type
NPT
Thickness
0.236
CGLN-NPT-1/2-BK
Material Flammability Standard
UL94 V-2
Color
Black
Thread Type
NPT
Thickness
0.276
CG-NPT-1/2-2-BK
Material Flammability Standard
UL94 V-2
Minimum Compatible Cable Diameter
0.276 in
Color
Black
O-Ring Material
NBR
CGLN-NPT-3/8-BK
Material Flammability Standard
UL94 V-2
Color
Black
Thread Type
NPT
Thickness
0.197
Per page:
1–5 of 14
