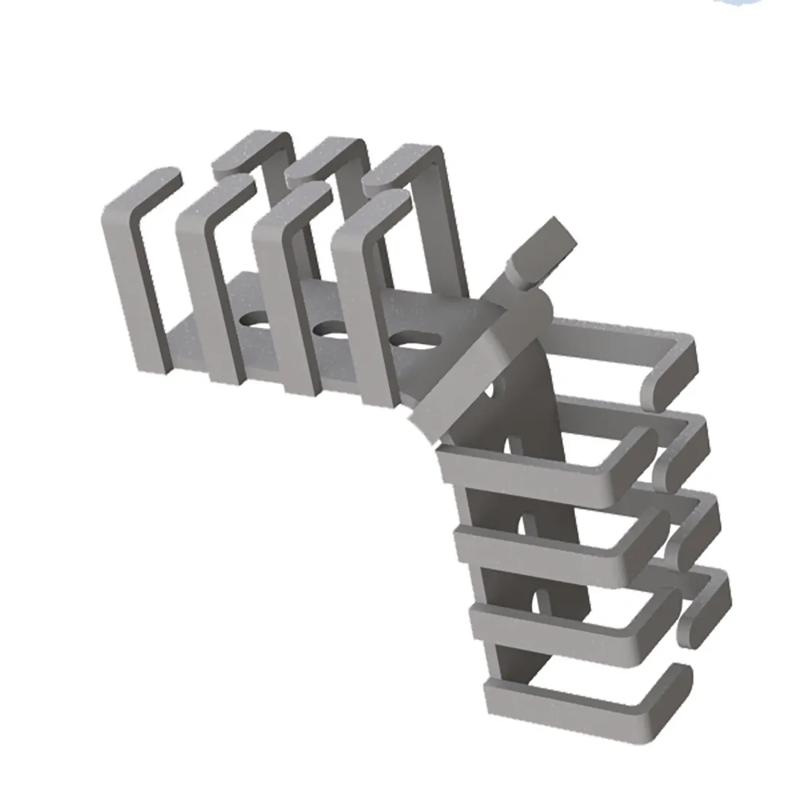

SRRX - Flexible Duct
Showing 1-10 of 14
Per page:1-10 of 14

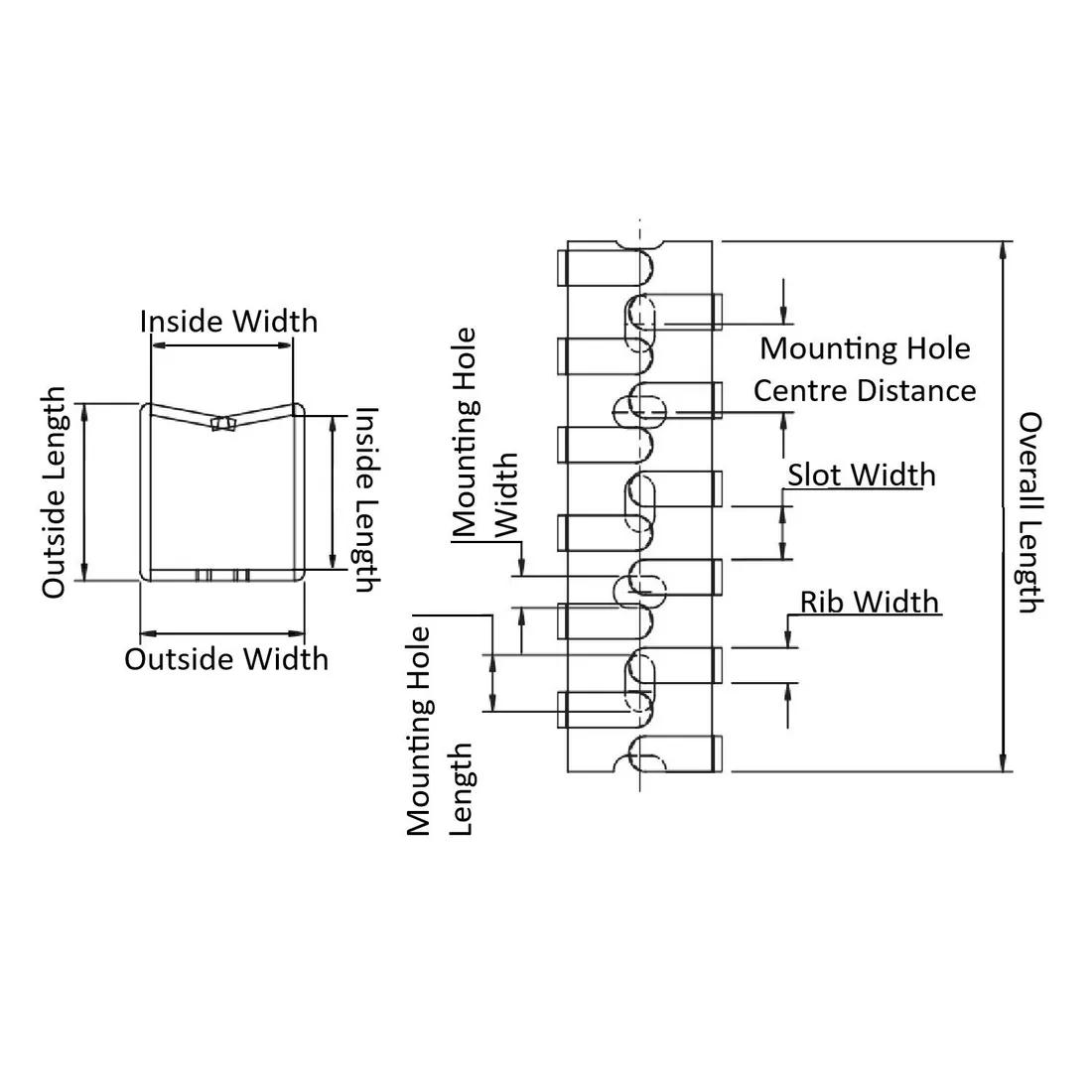

Item Code | Color | Inside Height | Material | Rib Width | Mounting Hole Width | Inside Length | Mounting Hole Center Distance | Square Size | Overall Height | Mounting Hole Length | Inside Width | Material Flammability Standard | Mounting Method | Adhesive Type | Overall Width | Slot Width | Overall Length | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RX1313-0 | Gray | 10.5 mm | PP | 5.0 mm | 4.5 mm | 110.0 mm | 12.5 mm | 110.0 mm | 12.5 mm | 8.0 mm | 110.0 | UL94 V-2 | Screw | With Adhesive | 12.5 mm | 7.5 mm | 500.0 | UL E54080 | |
RX1313-4 | Gray | 10.5 mm | PP | 5.0 mm | 4.5 mm | 110.0 mm | 12.5 mm | 110.0 mm | 12.5 mm | 8.0 mm | 110.0 | UL94 V-2 | Adhesive | Without Adhesive | 12.5 mm | 7.5 mm | 500.0 | UL E54080 | |
RX1616-0 | Gray | 13.6 mm | PP | 5.0 mm | 4.5 mm | 185.0 mm | 12.5 mm | 185.0 mm | 16.0 mm | 8.0 mm | 185.0 | UL94 V-2 | Screw | With Adhesive | 16.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX2525-0 | Gray | 22.4 mm | PP | 5.0 mm | 4.5 mm | 500.0 mm | 12.5 mm | 500.0 mm | 25.0 mm | 8.0 mm | 500.0 | UL94 V-2 | Screw | With Adhesive | 25.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX2020-0 | Gray | 17.9 mm | PP | 5.0 mm | 4.5 mm | 320.0 mm | 12.5 mm | 320.0 mm | 20.0 mm | 8.0 mm | 320.0 | UL94 V-2 | Screw | With Adhesive | 20.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX3030-4 | Gray | 26.8 mm | PP | 5.0 mm | 4.5 mm | 720.0 mm | 12.5 mm | 720.0 mm | 30.0 mm | 8.0 mm | 720.0 | UL94 V-2 | Adhesive | Without Adhesive | 30.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX4040-0 | Gray | 36.3 mm | PP | 5.0 mm | 4.5 mm | 1320.0 mm | 12.5 mm | 1320.0 mm | 40.0 mm | 8.0 mm | 1320.0 | UL94 V-2 | Screw | With Adhesive | 40.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX4040-4 | Gray | 36.3 mm | PP | 5.0 mm | 4.5 mm | 1320.0 mm | 12.5 mm | 1320.0 mm | 40.0 mm | 8.0 mm | 1320.0 | UL94 V-2 | Adhesive | Without Adhesive | 40.0 mm | 7.5 mm | 500.0 | UL E54080 | |
RX2525-4 | Gray | 22.4 mm | PP | 5.0 mm | 4.5 mm | 500.0 mm | 12.5 mm | 500.0 mm | 25.0 mm | 8.0 mm | 500.0 | UL94 V-2 | Adhesive | Without Adhesive | 25.0 mm | 7.5 mm | 500.0 | UL E54080 |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
RX1313-0
Color
Gray
Inside Height
10.5 mm
Material
PP
Rib Width
5.0 mm
RX1313-4
Color
Gray
Inside Height
10.5 mm
Material
PP
Rib Width
5.0 mm
RX1616-0
Color
Gray
Inside Height
13.6 mm
Material
PP
Rib Width
5.0 mm
RX2525-0
Color
Gray
Inside Height
22.4 mm
Material
PP
Rib Width
5.0 mm
Per page:
1–5 of 15
