SRSCC - Standoff Cable Clips Side Entry
Showing 1-4 of 4
Per page:1-4 of 4

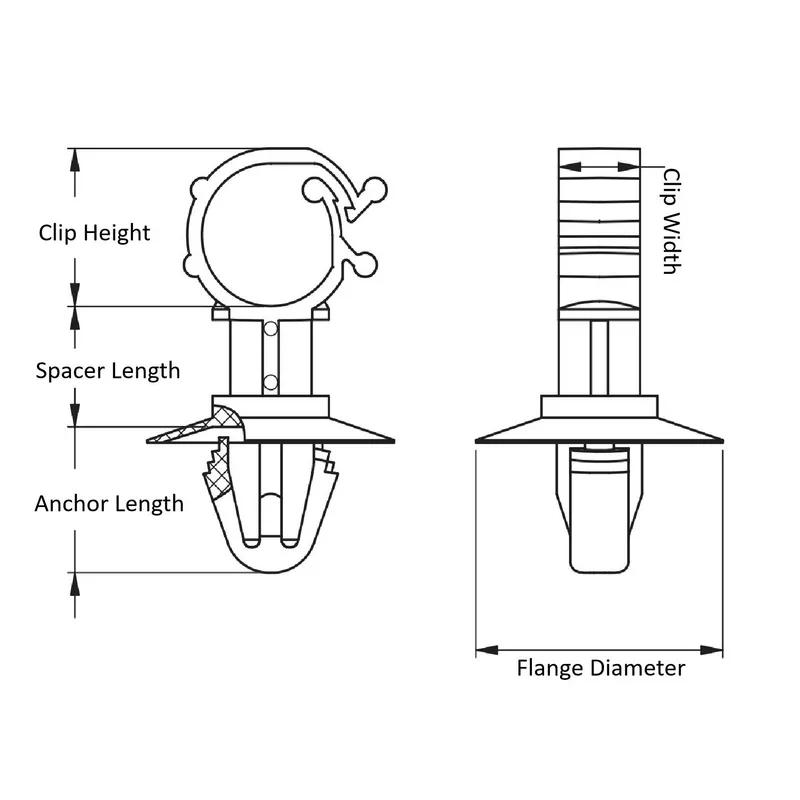

Item Code | Color | Maximum Hole Diameter | Spacer Length | Anchor Length | Cable Diameter | Clip Height | Maximum Operating Temperature | Clip Width | Material Flammability Standard | Minimum Hole Diameter | Minimum Operating Temperature | Material | Maximum Panel Thickness | Flange Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCC-SE-12-19 | Natural | 7.0 mm | 12.0 mm | 9.7 mm | 9.0 mm | 10.5 mm | 230 °F | 5.6 mm | UL94 V-0 | 6.5 mm | -40 °F | Nylon 6/6 | 1.25 mm | 17.0 mm | 0.8 mm | |
SCC-SE-8-19 | Natural | 7.0 mm | 8.0 mm | 9.7 mm | 9.0 mm | 10.5 mm | 230 °F | 5.6 mm | UL94 V-0 | 6.5 mm | -40 °F | Nylon 6/6 | 1.25 mm | 17.0 mm | 0.8 mm | |
SCC-SE-10-19 | Natural | 7.0 mm | 10.0 mm | 9.7 mm | 9.0 mm | 10.5 mm | 230 °F | 5.6 mm | UL94 V-0 | 6.5 mm | -40 °F | Nylon 6/6 | 1.25 mm | 17.0 mm | 0.8 mm | |
SCC-SE-4-19 | Natural | 7.0 mm | 4.0 mm | 9.7 mm | 9.0 mm | 10.5 mm | 230 °F | 5.6 mm | UL94 V-0 | 6.5 mm | -40 °F | Nylon 6/6 | 1.25 mm | 17.0 mm | 0.8 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
SCC-SE-12-19
Color
Natural
Maximum Hole Diameter
7.0 mm
Spacer Length
12.0 mm
Anchor Length
9.7 mm
SCC-SE-8-19
Color
Natural
Maximum Hole Diameter
7.0 mm
Spacer Length
8.0 mm
Anchor Length
9.7 mm
SCC-SE-10-19
Color
Natural
Maximum Hole Diameter
7.0 mm
Spacer Length
10.0 mm
Anchor Length
9.7 mm
SCC-SE-4-19
Color
Natural
Maximum Hole Diameter
7.0 mm
Spacer Length
4.0 mm
Anchor Length
9.7 mm
