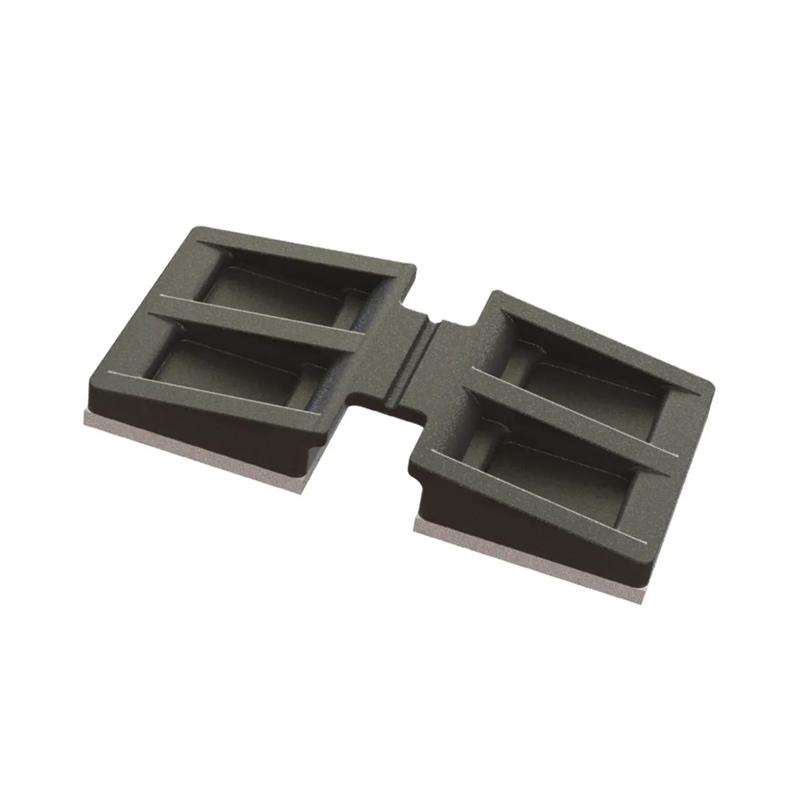

SRWM - Adhesive Mount Wire Mounts
Showing 1-7 of 7
Per page:1-7 of 7

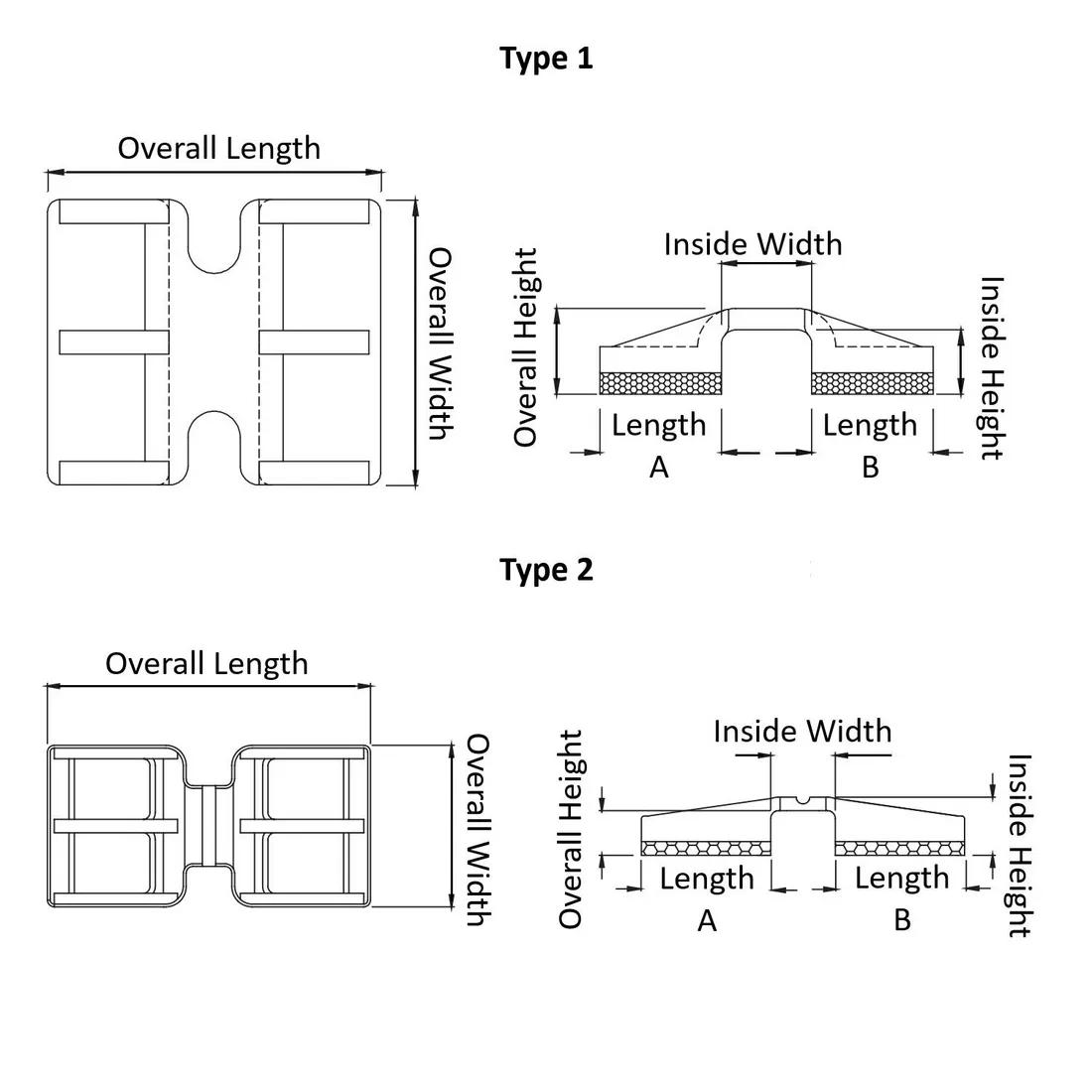

Item Code | Color | Inside Height | Material | Overall Width | Overall Length | Overall Height | Type | Inside Width | Material Flammability Standard | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|
WM-4A | Black | 0.110 in | Nylon 6/6 | 0.472 in | 0.945 in | 0.150 in | 1 | 0.205 in | UL94 V-2 | |
WM-5A | Black | 0.102 in | Nylon 6/6 | 0.472 in | 0.945 in | 0.142 in | 2 | 0.189 in | UL94 V-2 | |
WM-2A | Black | 0.102 in | Nylon 6/6 | 0.472 in | 0.945 in | 0.142 in | 1 | 0.189 in | UL94 V-2 | |
WM-6A | Black | 0.122 in | Nylon 6/6 | 0.472 in | 0.945 in | 0.161 in | 2 | 0.189 in | UL94 V-2 | |
WM-1A | Black | 0.102 in | Nylon 6/6 | 0.472 in | 0.551 in | 0.138 in | 1 | 0.150 in | UL94 V-2 | |
WM-3A | Black | 0.102 in | Nylon 6/6 | 0.472 in | 0.787 in | 0.142 in | 1 | 0.189 in | UL94 V-2 | |
WM-7A | Black | 0.122 in | Nylon 6/6 | 0.472 in | 0.945 in | 0.161 in | 2 | 0.205 in | UL94 V-2 |
Per page:
1-7 of 7
1–5 of 7 variants
Per page:
WM-4A
Color
Black
Inside Height
0.110 in
Material
Nylon 6/6
Overall Width
0.472 in
WM-5A
Color
Black
Inside Height
0.102 in
Material
Nylon 6/6
Overall Width
0.472 in
WM-2A
Color
Black
Inside Height
0.102 in
Material
Nylon 6/6
Overall Width
0.472 in
WM-6A
Color
Black
Inside Height
0.122 in
Material
Nylon 6/6
Overall Width
0.472 in
Per page:
1–5 of 8
