SRWAC - Webbed Adjustable Clips
Showing 1-3 of 3
Per page:1-3 of 3

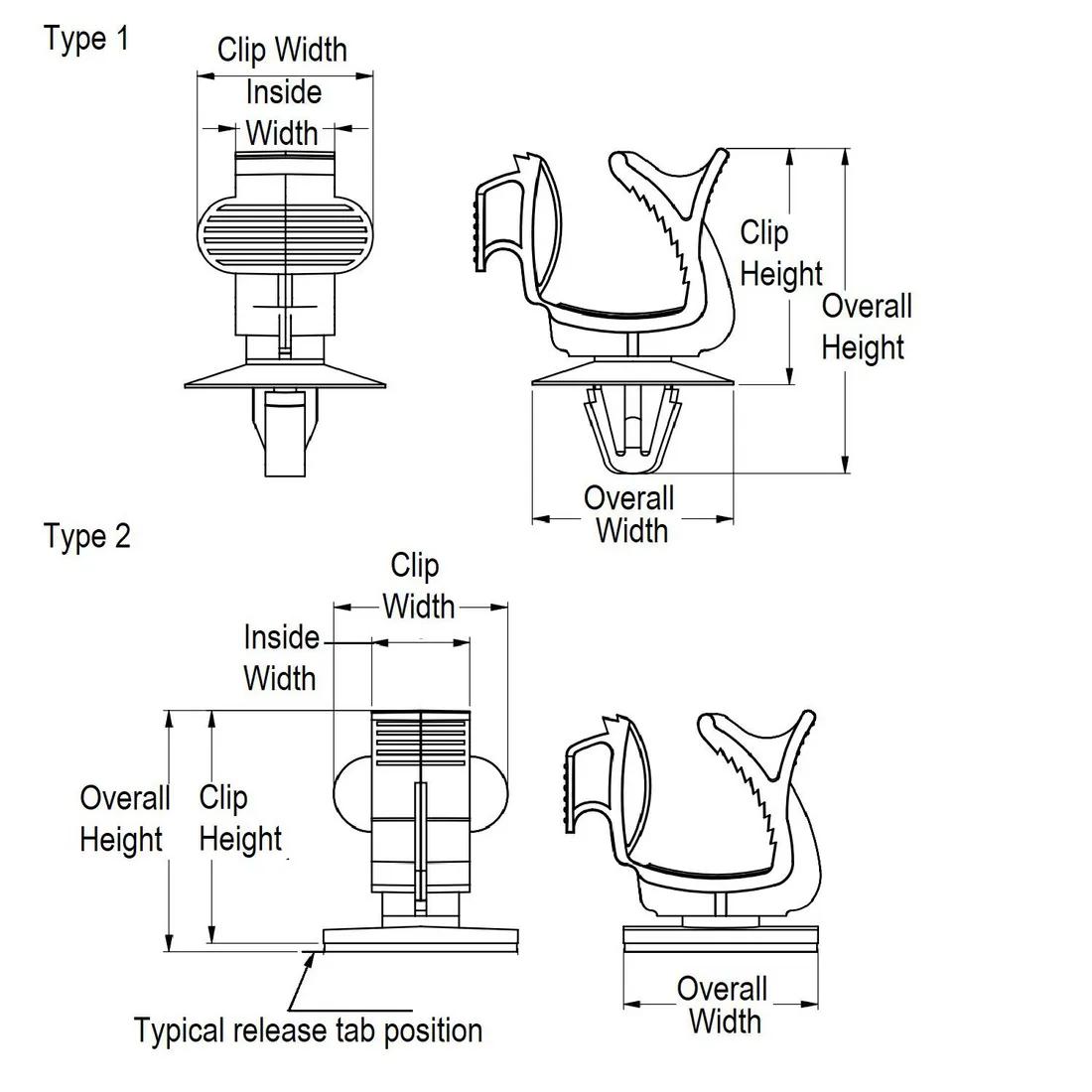

Item Code | Maximum Cable Bundle Diameter | Color | Maximum Material Thickness | UL/CSA Description | Base Width | Adhesive Material | Maximum Operating Temperature | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Base Length | Style | Tape Type | Overall Height | Clip Height | Clip Width | Type | Maximum Hole Diameter | Maximum Panel Thickness | Maximum Compatible Cable Diameter | Minimum Hole Diameter | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WAC3-01A4-RT | 8.5 mm | Natural | 0.8 mm | UL E70062 | 17.8 mm | Acrylic | 85 | 9.0 mm | UL94 V-2 | Plug-in; Adhesive Mount | 40 | Nylon 6/6 | 3.0 mm | 17.8 mm | 22.2 | 2 | Double Sided Adhesive Tape | 22.2 mm | 21.4 mm | 16.0 mm | Adjustable | - | - | - | - | - | |
WAC2-01 | 8.5 mm | Natural | - | UL E70062 | 18.4 mm | - | 85 | 9.0 mm | UL94 V-2 | Plug in; Adhesive Mount | 40 | Nylon 6/6 | 3.0 mm | 18.4 mm | 29.5 mm | 1 | - | 29.5 mm | 21.0 mm | 16.0 mm | Webbed | 6.8 mm | 2.5 mm | 8.5 mm | 6.0 mm | 0.5 | |
WAC1-01 | 8.5 mm | Natural | - | UL E70062 | 18.4 mm | - | 85 | 9.0 mm | UL94 V-2 | Plug in; Adhesive Mount | 40 | Nylon 6/6 | 3.0 mm | 18.4 mm | 26.5 mm | 1 | - | 26.5 mm | 21.0 mm | 16.0 mm | Webbed | 4.8 mm | 1.6 mm | 8.5 mm | 4.0 mm | 0.5 |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
WAC3-01A4-RT
Maximum Cable Bundle Diameter
8.5 mm
Color
Natural
Maximum Material Thickness
0.8 mm
UL/CSA Description
UL E70062
WAC2-01
Maximum Cable Bundle Diameter
8.5 mm
Color
Natural
Maximum Hole Diameter
6.8 mm
UL/CSA Description
UL E70062
WAC1-01
Maximum Cable Bundle Diameter
8.5 mm
Color
Natural
Maximum Hole Diameter
4.8 mm
UL/CSA Description
UL E70062
