Item Code | Mounting Method | Color | Inside Height | Overall Width | Cable Length | Base Width | Mounting Hole Diameter | Base Height | Cable Diameter | Maximum Inside Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Thread Size | Material | Adhesive Material | Cable Width | Base Length | Tape Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

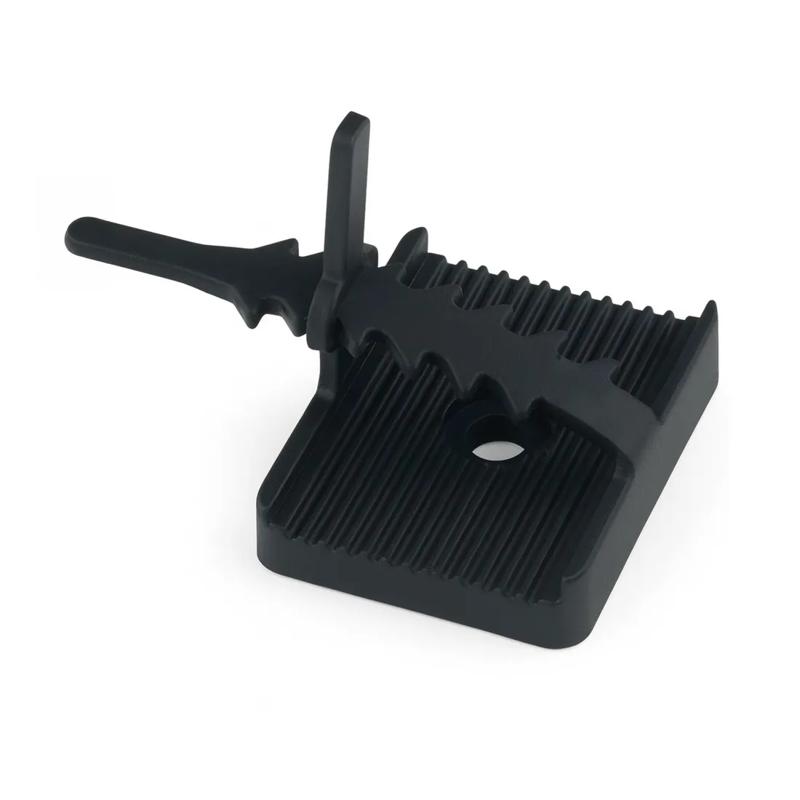

UMB-1 | Screw | Black | 3.0 mm | 40.0 mm | 67.0 mm | 1.18 in | 5.2 mm | 6.0 mm | 20.0 mm | 9.2 mm | 35.0 mm | 50 °C | -40 °C | M5 | Neoprene Rubber | PSA | 2.0 mm | 1.57 in | - | |
UMB-1A-RT | Adhesive | Black | 3.0 mm | 40.0 mm | 67.0 mm | 1.18 in | 5.2 mm | 6.0 mm | 20.0 mm | 9.2 mm | 35.0 mm | 50 °C | -40 °C | #10;M5 | Neoprene Rubber | PSA | 2.0 mm | 1.57 in | Double-Coated PSA |
Mounting Method
Screw
Color
Black
Inside Height
3.0 mm
Overall Width
40.0 mm
Mounting Method
Adhesive
Color
Black
Inside Height
3.0 mm
Overall Width
40.0 mm
