SRSPNW - Steel Clamps with Rubber Cushion
Showing 1-10 of 10
Per page:1-10 of 10

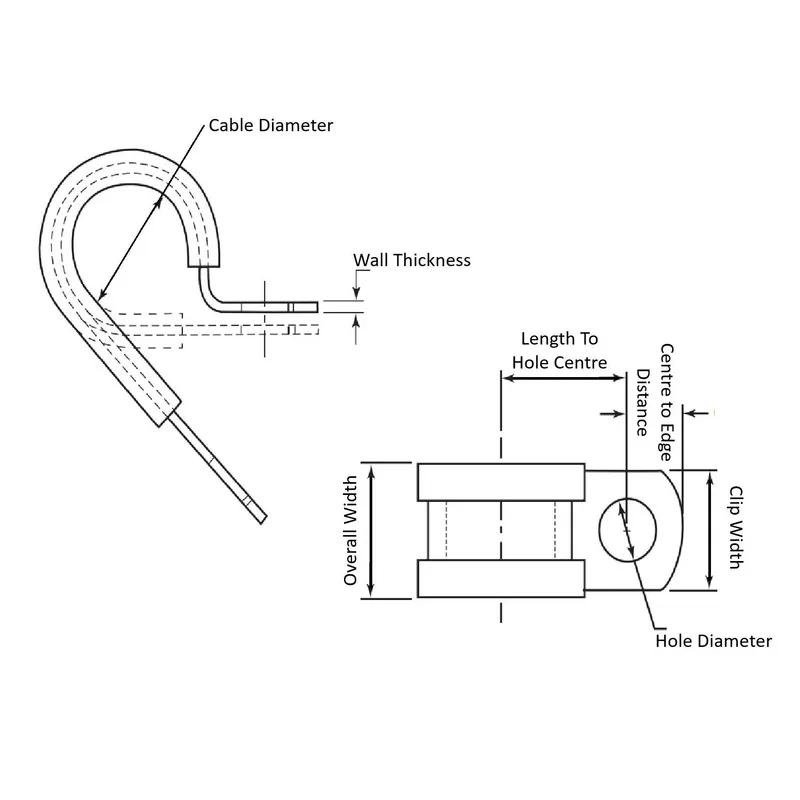

Item Code | Mounting Method | Color | Wall Thickness | Hole Diameter | Overall Width | Length to Hole Center | Maximum Compatible Cable Diameter | Coating | Cable Diameter | Maximum Operating Temperature | Clip Width | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SPNW-7 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.620 in | 0.438 in | Zinc Electroplated | 0.438 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-8 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.650 in | 0.500 in | Zinc Electroplated | 0.500 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-4 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.530 in | 0.250 in | Zinc Electroplated | 0.250 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-10 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.780 in | 0.625 in | Zinc Electroplated | 0.625 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-20 | Screw | Black | 0.031 in | 0.406 | 0.750 | 1.110 in | 1.250 in | Zinc Electroplated | 1.250 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-16 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.960 in | 1.000 in | Zinc Electroplated | 1.000 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-6 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.590 in | 0.375 in | Zinc Electroplated | 0.375 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-11 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.810 in | 0.688 in | Zinc Electroplated | 0.688 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel | |
SPNW-5 | Screw | Black | 0.031 in | 0.406 | 0.750 | 0.560 in | 0.313 in | Zinc Electroplated | 0.313 in | 203 °F | 0.625 in | -76 °F | Cold-Rolled Steel |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
SPNW-7
Mounting Method
Screw
Color
Black
Wall Thickness
0.031 in
Hole Diameter
0.406
SPNW-8
Mounting Method
Screw
Color
Black
Wall Thickness
0.031 in
Hole Diameter
0.406
SPNW-4
Mounting Method
Screw
Color
Black
Wall Thickness
0.031 in
Hole Diameter
0.406
SPNW-10
Mounting Method
Screw
Color
Black
Wall Thickness
0.031 in
Hole Diameter
0.406
