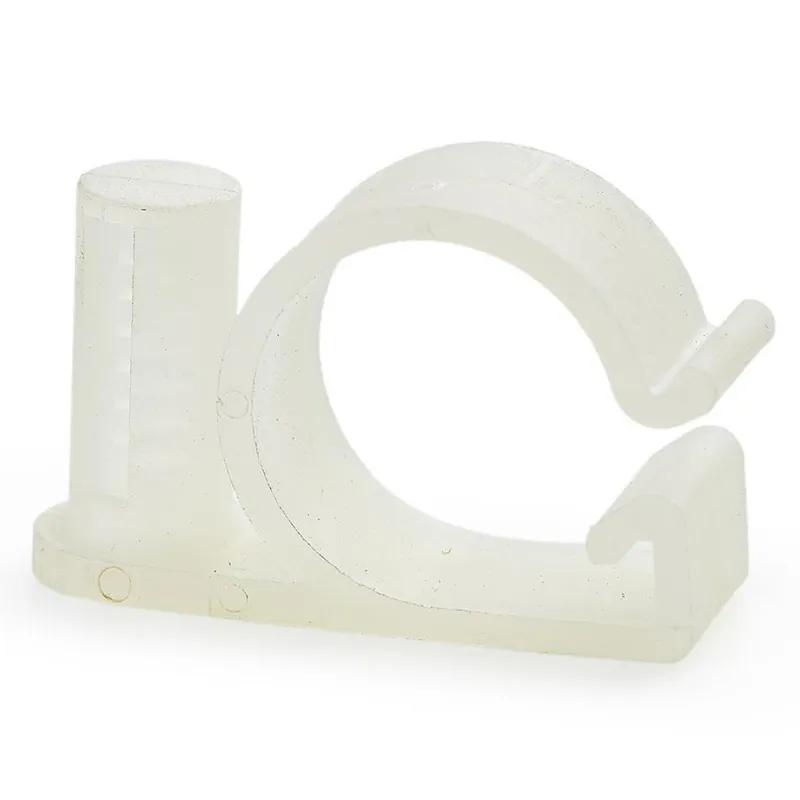

SRSMWHC - Stud Mount Wire Harness Clips
Showing 1-1 of 1
Per page:1-1 of 1

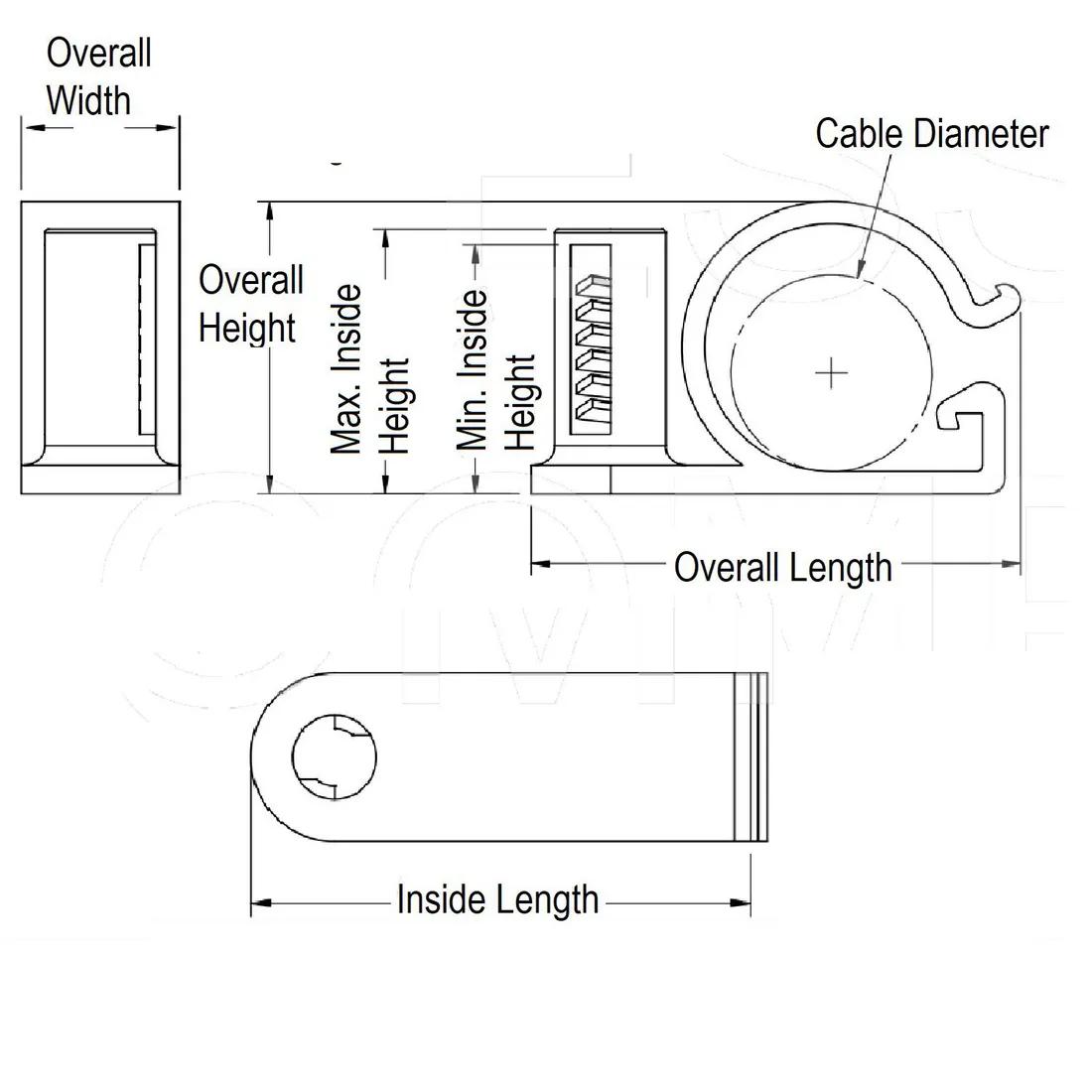

Item Code | Color | Overall Width | Base Width | Cable Diameter | Overall Height | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Thread Size | Material | Overall Length | UL/CSA Description | Inside Length | Maximum Compatible Cable Diameter | Minimum Inside Diameter | Minimum Inside Diameter | Base Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SMWHC-500-01 | Natural | 10.0 mm | 0.394 in | 12.7 mm | 18.9 | 85 | UL94 V-2 | Fijación atornillable | -40 | #8;#10;M4;M5 | Nylon 6/6 | 30.9 mm | UL E70062 | 29.9 mm | 12.7 mm | 16.1 mm | 17.1 mm | 1.177 in |
Per page:
1-1 of 1
1–2 of 1 variant
Per page:
SMWHC-500-01
Color
Natural
Overall Width
10.0 mm
Base Width
0.394 in
Cable Diameter
12.7 mm
