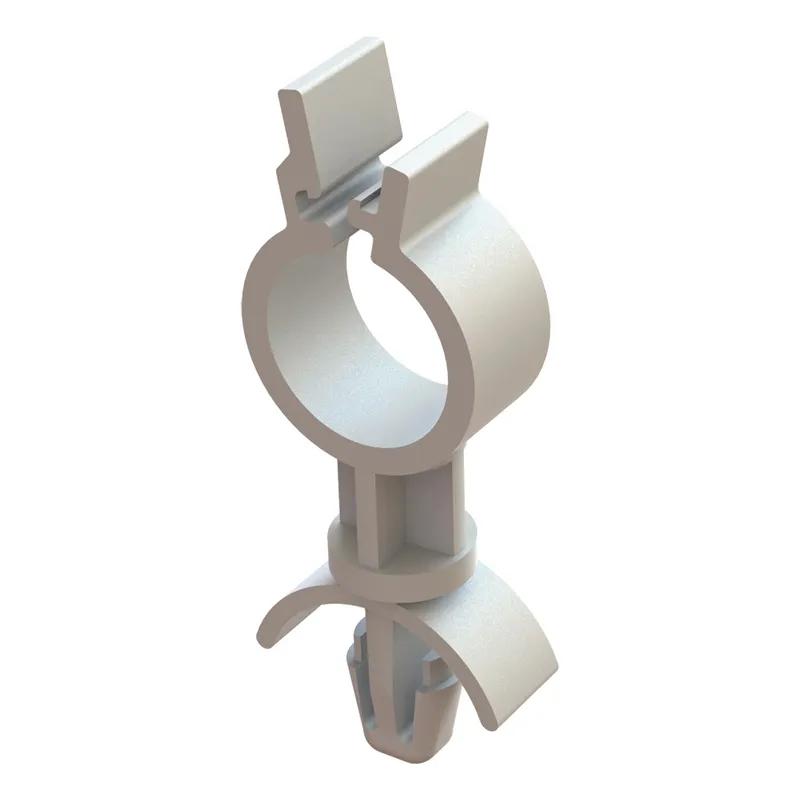

SRSLCSE - Standoff Locking Clips
Showing 1-8 of 8
Per page:1-8 of 8
Item Code | Color | Maximum Hole Diameter | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Locking Head Height | Clip Height | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Width | Spacer Length | UL/CSA Description | Anchor Length | Base Length | Minimum Panel Thickness | Style | Cable Diameter | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SLCSE-250-3-01 | Natural | 4.75 mm | 2.0 mm | 14.3 mm | 4.75 mm | 0.220 in | 5.6 mm | 14.5 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 0.8 | 2 | 5.6 mm | 6.35 mm | Stand-Off Locking | |
SLCSE-500-3-01 | Natural | 4.75 mm | 2.0 mm | 14.3 mm | 4.75 mm | 0.472 in | 5.6 mm | 21.0 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 0.8 | 2 | 12.0 mm | 6.35 mm | Stand-Off Locking | |
SLCSE-750-3-01 | Natural | 4.75 mm | 2.0 mm | 14.3 mm | 4.75 mm | 0.730 in | 5.6 mm | 27.5 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 0.8 | 2 | 18.4 mm | 6.35 mm | Stand-Off Locking | |
SLCSE-370-3-01 | Natural | 4.75 mm | 2.0 mm | 14.3 mm | 4.75 mm | 0.350 in | 5.6 mm | 18.0 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 0.8 | 2 | 8.9 mm | 6.35 mm | Stand-Off Locking | |
SLCSE2-500-3-01 | Natural | 4.75 mm | 4.0 mm | 14.3 mm | 4.75 mm | 0.472 in | 5.6 mm | 21.0 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 2.0 | 2 | 12.0 mm | 6.35 mm | Stand-Off Locking | |
SLCSE2-750-3-01 | Natural | 4.75 mm | 4.0 mm | 14.3 mm | 4.75 mm | 0.730 in | 5.6 mm | 27.5 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 2.0 | 2 | 18.4 mm | 6.35 mm | Stand-Off Locking | |
SLCSE2-370-3-01 | Natural | 4.75 mm | 4.0 mm | 14.3 mm | 4.75 mm | 0.350 in | 5.6 mm | 18.0 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 2.0 | 2 | 8.9 mm | 6.35 mm | Stand-Off Locking | |
SLCSE2-250-3-01 | Natural | 4.75 mm | 4.0 mm | 14.3 mm | 4.75 mm | 0.220 in | 5.6 mm | 14.5 mm | 85 | UL94 V-2 | Push In | -40 | Nylon 6/6 | 14.3 mm | 4.8 | UL E70062 | 5.6 mm | 0.563 in | 2.0 | 2 | 5.6 mm | 6.35 mm | Stand-Off Locking |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
SLCSE-250-3-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
2.0 mm
Base Width
14.3 mm
SLCSE-500-3-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
2.0 mm
Base Width
14.3 mm
SLCSE-750-3-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
2.0 mm
Base Width
14.3 mm
SLCSE-370-3-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
2.0 mm
Base Width
14.3 mm
Per page:
1–5 of 9
