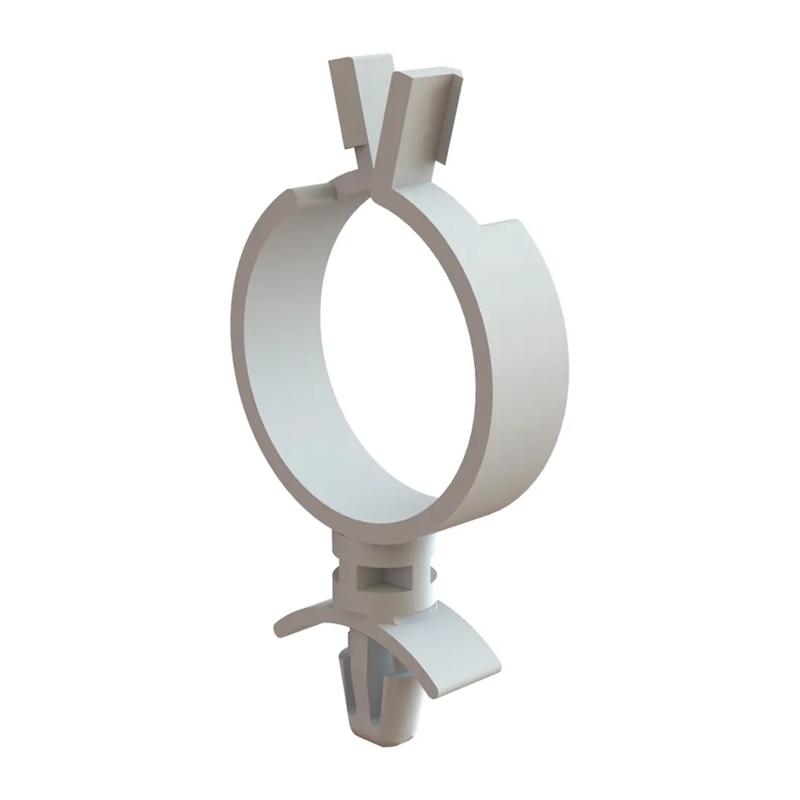

SRSLCS - Standoff Locking Clips
Showing 1-10 of 20
Per page:1-10 of 20

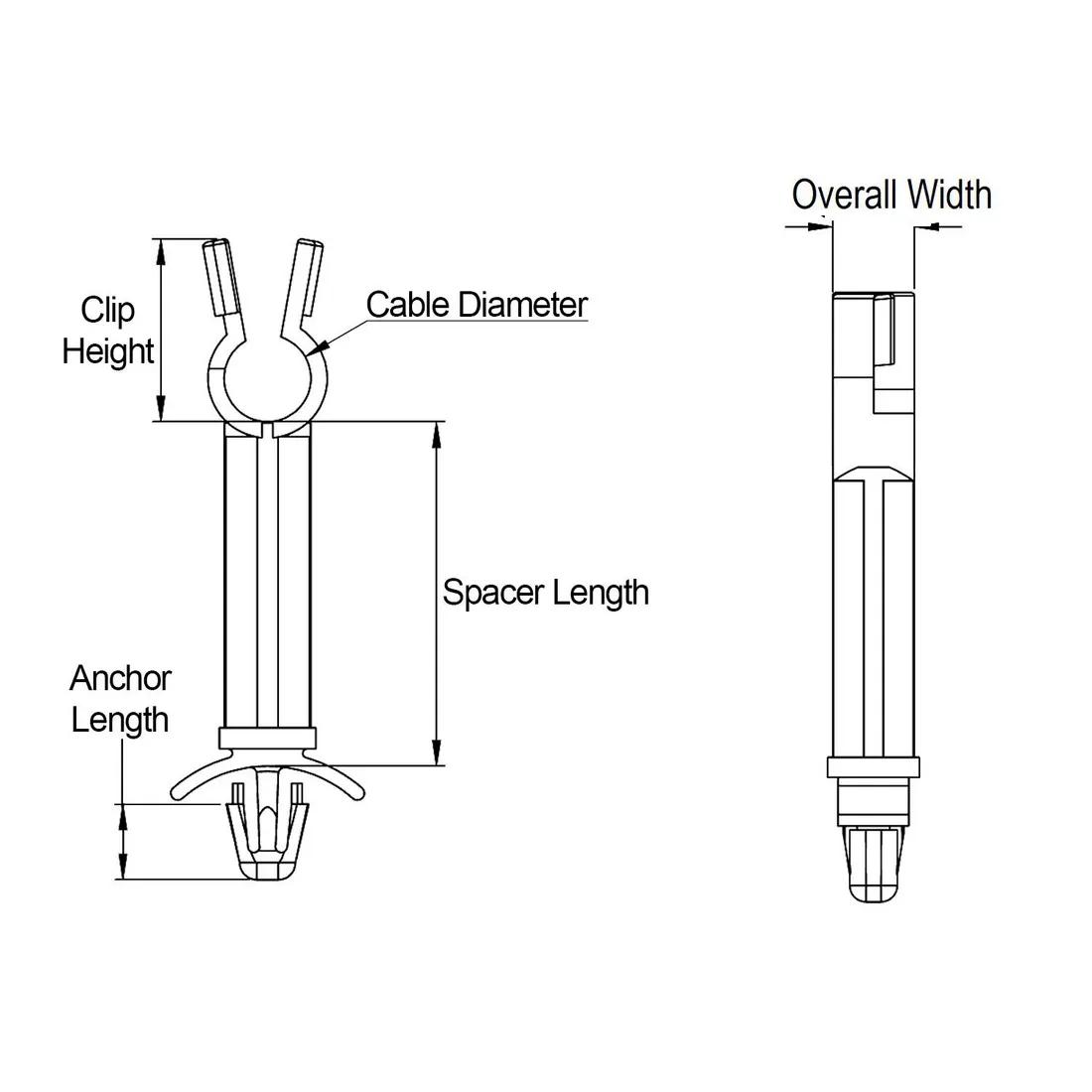

Item Code | Maximum Cable Bundle Diameter | Spacer Length | UL/CSA Description | Maximum Panel Thickness | Maximum Compatible Cable Diameter | Style | Maximum Operating Temperature | Type | Adjustability | Material Flammability Standard | Mounting Method | Color | Standoff Height | Minimum Operating Temperature | Material | Base Length | Minimum Panel Thickness | Maximum Hole Diameter | Base Width | Mounting Hole Diameter | Locking Head Height | Panel Thickness | Clip Height | Overall Width | Anchor Length | Cable Diameter | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SLCS-750-8-01 | 0.687 in | 0.500 in | UL E71558 | 0.078 in | 0.688 in | 1 | 185 °F | 1 | Fixed | UL94 V-2 | Push-In | Natural | 0.220 in | -40 °F | Nylon 6/6 | 0.560 in | 0.031 in | - | - | - | - | - | - | - | - | - | - | |
SLCS-250-8-01 | - | 12.7 | UL E70062 | 1.6 mm | 0.188 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 13.5 mm | 6.4 mm | 5.6 mm | 4.8 mm | 6.4 mm | |
SLCS-250-3-01 | - | 4.8 | UL E70062 | 1.6 mm | 0.188 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 13.5 mm | 6.4 mm | 5.6 mm | 4.8 mm | 6.4 mm | |
SLCS-370-8-01 | - | 12.7 | UL E70062 | 1.6 mm | 0.312 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 16.8 mm | 6.4 mm | 5.6 mm | 7.9 mm | 6.4 mm | |
SLCS-370-3-01 | - | 4.8 | UL E70062 | 1.6 mm | 0.313 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 16.8 mm | 6.4 mm | 5.6 mm | 7.9 mm | 6.4 mm | |
SLCS-500-3-01 | - | 4.8 | UL E70062 | 1.6 mm | 0.438 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 21.1 mm | 6.4 mm | 5.6 mm | 11.1 mm | 6.4 mm | |
SLCS-250-4-01 | - | 6.4 | UL E70062 | 1.6 mm | 0.188 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 13.5 mm | 6.4 mm | 5.6 mm | 4.8 mm | 6.4 mm | |
SLCS-500-4-01 | - | 6.4 | UL E70062 | 1.6 mm | 0.438 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 21.1 mm | 6.4 mm | 5.6 mm | 11.1 mm | 6.4 mm | |
SLCS-500-8-01 | - | 12.7 | UL E70062 | 1.6 mm | 0.438 in | 1 | 85 | Stand-Off Locking | - | UL94 V-2 | Push In | Natural | - | -40 | Nylon 6/6 | 0.563 in | 0.8 | 4.75 mm | 14.3 mm | 4.75 mm | 5.6 mm | 1.6 mm | 21.1 mm | 6.4 mm | 5.6 mm | 11.1 mm | 6.4 mm |
Per page:
1-10 of 20
1–5 of 20 variants
Per page:
SLCS-750-8-01
Maximum Cable Bundle Diameter
0.687 in
Spacer Length
0.500 in
UL/CSA Description
UL E71558
Maximum Panel Thickness
0.078 in
SLCS-250-8-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
1.6 mm
Base Width
14.3 mm
SLCS-250-3-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
1.6 mm
Base Width
14.3 mm
SLCS-370-8-01
Color
Natural
Maximum Hole Diameter
4.75 mm
Maximum Panel Thickness
1.6 mm
Base Width
14.3 mm
Per page:
1–5 of 21
