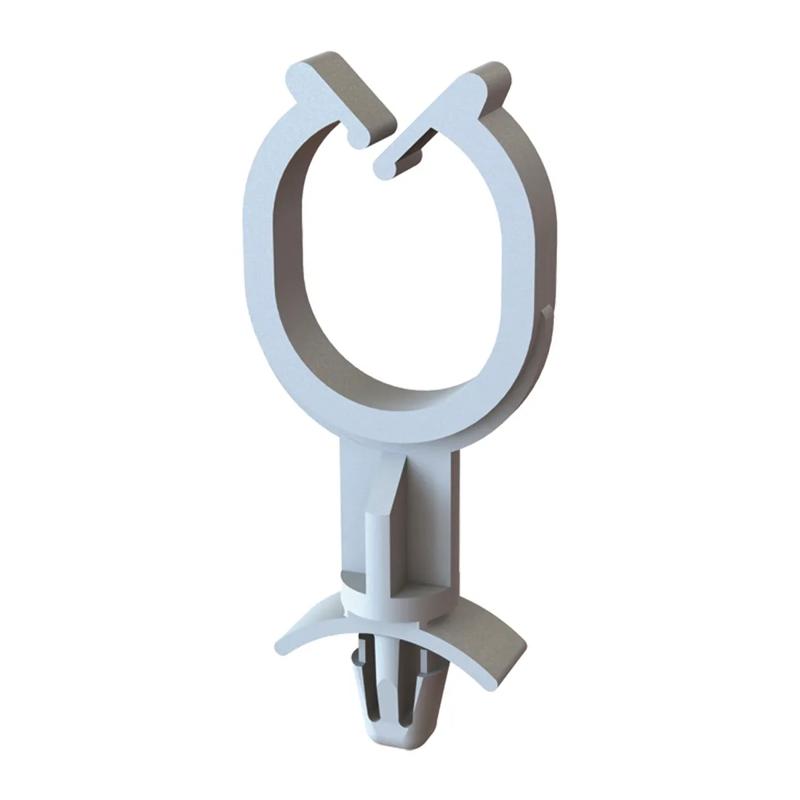

SRSHKE - Standoff Cable Clips
Showing 1-2 of 2
Per page:1-2 of 2
Item Code | Color | Inside Height | UL/CSA Description | Depth | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Flange Thickness | Gap Width | Clip Height | Maximum Operating Temperature | Clip Width | Inside Width | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Spacer Length | Strap Width | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SHKE-8-01 | Natural | 20.6 | UL E70062 | 4.0 mm | 2.0 mm | 4.8 mm | 0.810 in | 2.8 mm | 2.8 mm | 29.0 mm | 85 | 18.0 mm | 13.6 | UL94 V-2 | Montaje a presión | -40 | Nylon 6/6 | 7.1 mm | 14.3 mm | 12.7 | 14.3 mm | 0.76 mm | |
SHKE-6-01 | Natural | 20.6 | UL E70062 | 4.0 mm | 2.0 mm | 4.8 mm | 0.810 in | 2.8 mm | 2.8 mm | 29.0 mm | 85 | 18.0 mm | 13.6 | UL94 V-2 | Montaje a presión | -40 | Nylon 6/6 | 7.1 mm | 14.3 mm | 9.5 | 14.3 mm | 0.76 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
SHKE-8-01
Color
Natural
Inside Height
20.6
UL/CSA Description
UL E70062
Depth
4.0 mm
SHKE-6-01
Color
Natural
Inside Height
20.6
UL/CSA Description
UL E70062
Depth
4.0 mm
