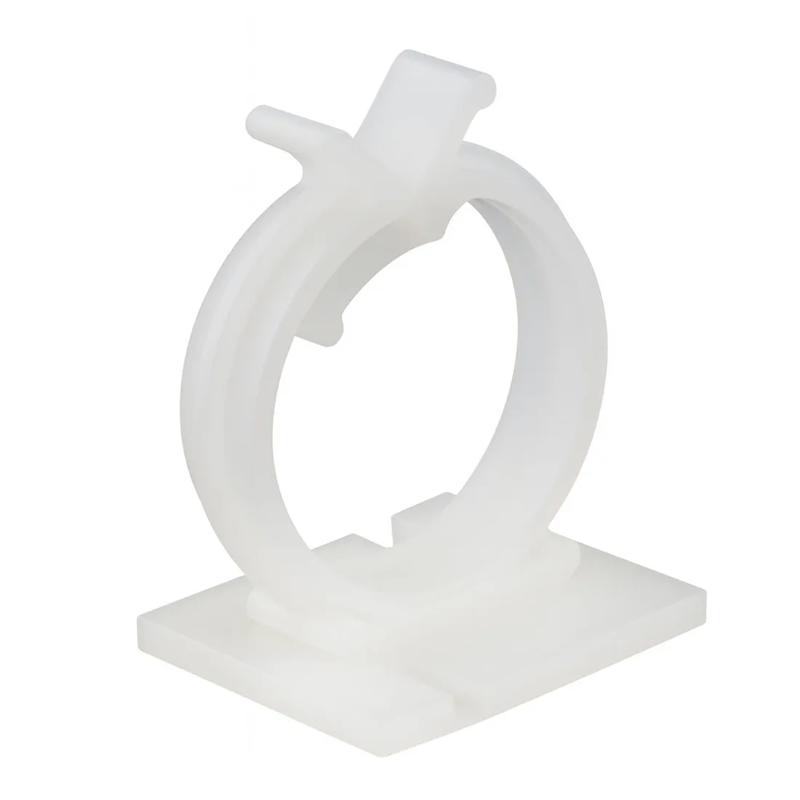

SRRWSB - Round Clamps
Showing 1-4 of 4
Per page:1-4 of 4

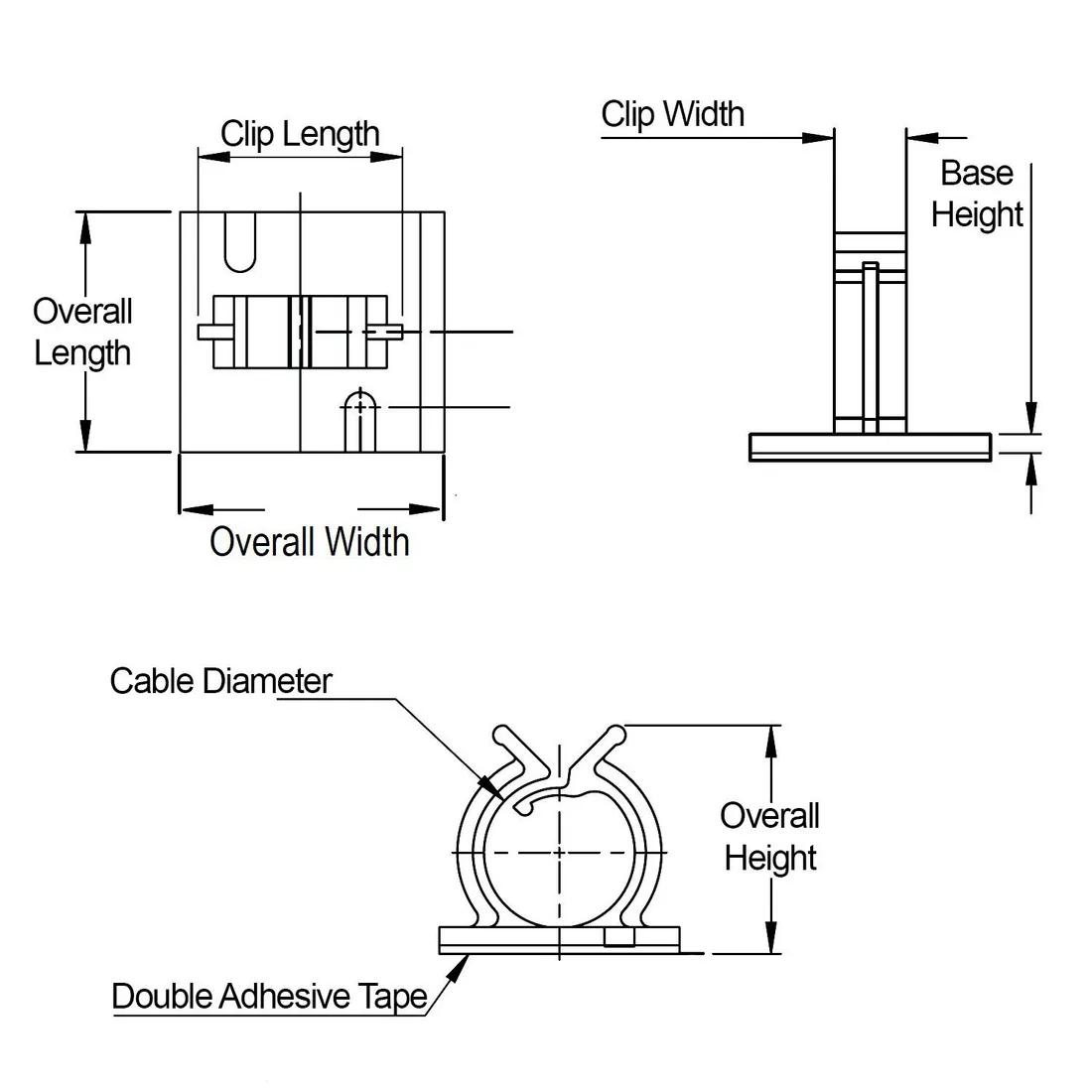

Item Code | Color | Hole Diameter | Material | Overall Width | Depth | Base Width | Maximum Compatible Cable Diameter | Base Length | Cable Diameter | Overall Height | Slot Size (Seed) | Bundle Centre to Slot Centre Distance | Material Flammability Standard | Mounting Method | Overall Length | UL/CSA Description | Maximum Operating Temperature | Adjustability | Screw Size | Minimum Operating Temperature | Adhesive Material | Base Height | Clip Width | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RWSB-16-01 | Natural | 0.125 in | Nylon 6/6 | 25.4 mm | 25.4 mm | 1.000 in | 1.000 in | 1.000 in | 25.4 mm | 1.460 in | 3.2 mm | 6.4 mm | UL94 V-2 | Adhesive | 25.4 mm | UL E70062 | - | - | - | - | - | - | - | |
RWSB-10-01 | Natural | 0.125 in | Nylon 6/6 | 25.4 mm | 25.4 mm | 25.4 | 15.9 | 25.4 | 15.9 mm | 24.1 | 3.2 mm | - | UL94 V-2 | Adhesive | 25.4 mm | UL E70062 | 85 | Fixed | #4, M3 | -40 | - | - | - | |
RWSB-16-01A-RT | Natural | 0.125 in | Nylon 6/6 | 25.4 mm | 25.4 mm | 1.000 in | - | 1.000 in | 25.4 mm | 37.1 mm | 3.2 mm | - | UL94 V-2 | Adhesive | 25.4 mm | UL E70062 | 85 | Fixed | - | -40 | Acrylic | 2.0 mm | 7.6 mm | |
RWSB-10-01A-RT | Natural | 0.125 in | Nylon 6/6 | 25.4 mm | 25.4 mm | 1.000 in | - | 1.000 in | 15.9 mm | 24.1 mm | 3.2 mm | - | UL94 V-2 | Adhesive | 25.4 mm | UL E70062 | 85 | Fixed | - | -40 | Acrylic | 2.0 mm | 7.6 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
RWSB-16-01
Color
Natural
Hole Diameter
0.125 in
Material
Nylon 6/6
Overall Width
25.4 mm
RWSB-10-01
Color
Natural
Hole Diameter
0.125 in
Overall Width
25.4 mm
Depth
25.4 mm
RWSB-16-01A-RT
Color
Natural
Hole Diameter
0.125 in
Overall Width
25.4 mm
Depth
25.4 mm
RWSB-10-01A-RT
Color
Natural
Hole Diameter
0.125 in
Overall Width
25.4 mm
Depth
25.4 mm
