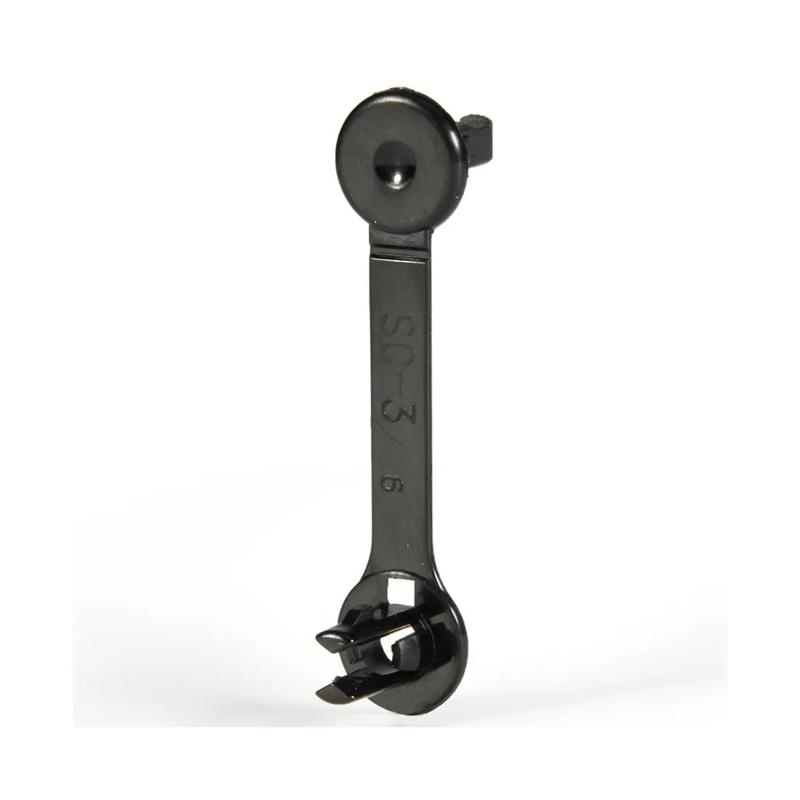

SRRSC - Snap In Cable Hanger
Showing 1-4 of 4
Per page:1-4 of 4

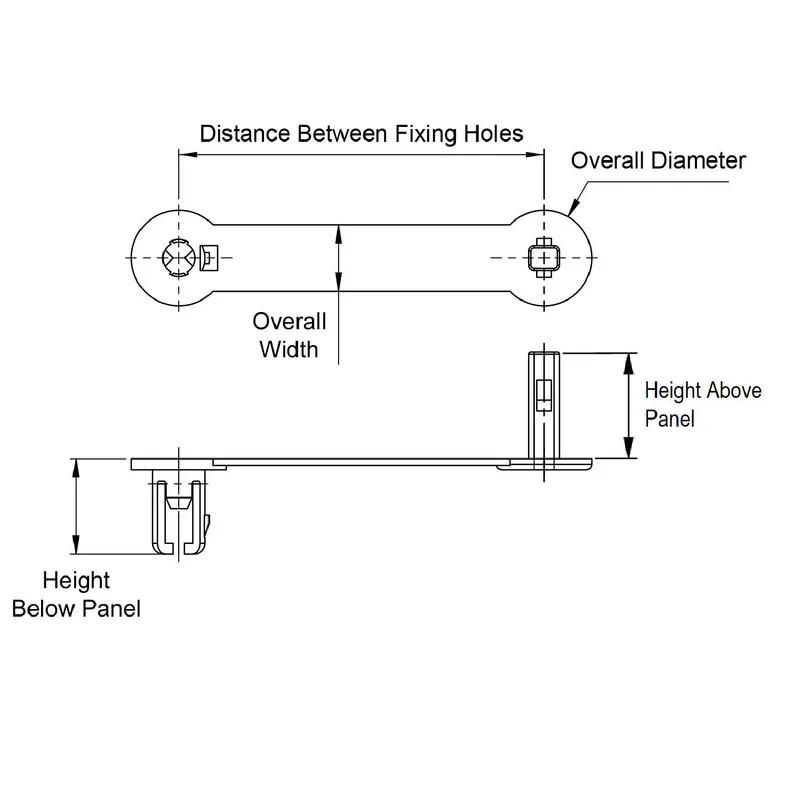

Item Code | Color | UL/CSA Description | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Height Above the Panel | Plate Thickness | Height Above the Panel | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Distance Between Fixing Holes | Minimum Panel Thickness | Style | Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RSC-3-01 | Black | UL E70062 | 3.2 mm | 4.8 mm | 0.219 in | 8.6 mm | 1.0 mm | 8.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 8.6 mm | 4.0 mm | 28.0 mm | 0.8 | 2 | 5.6 mm | |
RSC-6-01 | Black | UL E70062 | 3.2 mm | 4.8 mm | 0.375 in | 8.6 mm | 1.0 mm | 8.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 8.6 mm | 6.0 mm | 43.0 mm | 0.8 | 2 | 9.5 mm | |
RSC-4-01 | Black | UL E70062 | 3.2 mm | 4.8 mm | 0.250 in | 8.6 mm | 1.0 mm | 8.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 8.6 mm | 6.0 mm | 33.0 mm | 0.8 | 2 | 6.4 mm | |
RSC-9-01 | Black | UL E70062 | 3.2 mm | 4.8 mm | 0.625 in | 8.6 mm | 1.0 mm | 8.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 8.6 mm | 6.0 mm | 63.0 mm | 0.8 | 2 | 15.9 mm |
Per page:
1-4 of 4
1–5 of 4 variants
Per page:
RSC-3-01
Color
Black
UL/CSA Description
UL E70062
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
4.8 mm
RSC-6-01
Color
Black
UL/CSA Description
UL E70062
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
4.8 mm
RSC-4-01
Color
Black
UL/CSA Description
UL E70062
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
4.8 mm
RSC-9-01
Color
Black
UL/CSA Description
UL E70062
Maximum Panel Thickness
3.2 mm
Mounting Hole Diameter
4.8 mm
