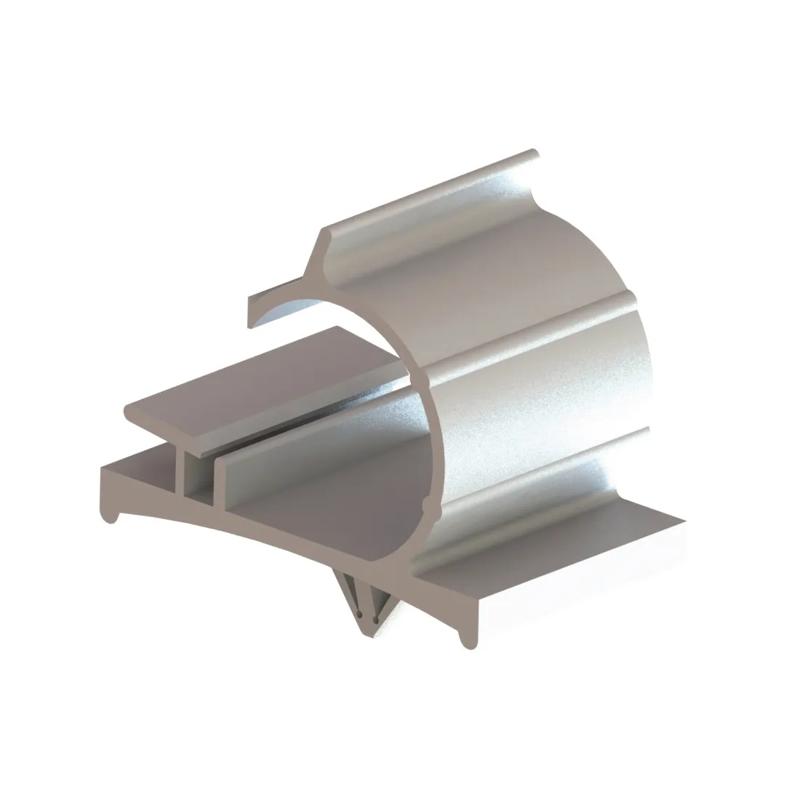

SRPKKL - Plug In Locking Clamps
Showing 1-3 of 3
Per page:1-3 of 3

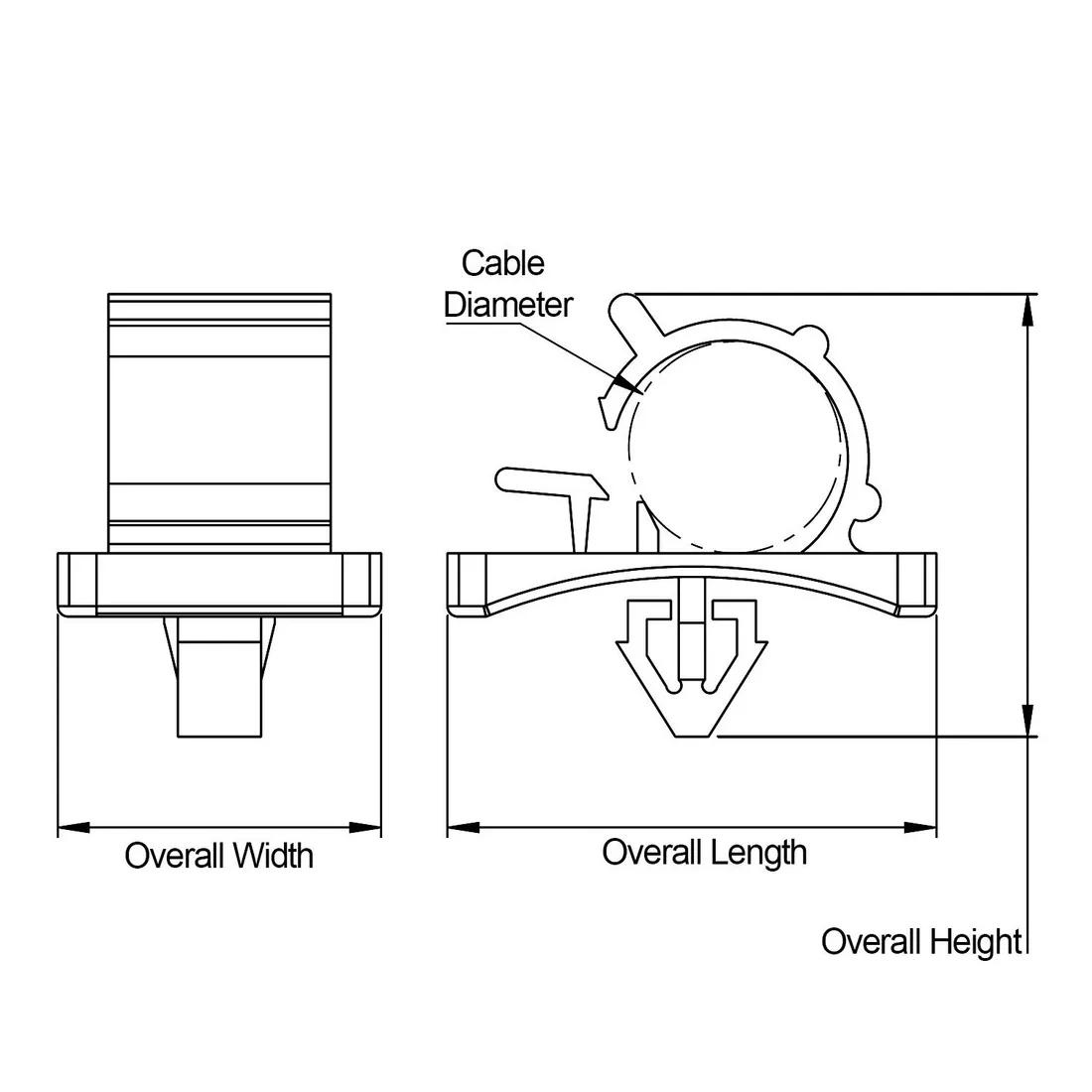

Item Code | Maximum Cable Bundle Diameter | Color | Overall Width | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Cable Diameter | Overall Height | Maximum Operating Temperature | Type | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PKKL-3 | 9.5 mm | Natural | 17.0 mm | 1.6 mm | 0.670 in | 6.5 mm | 0.374 in | 9.5 mm | 23.4 mm | 85 | Locking | UL94 V-2 | Plug-In | -40 | Nylon 6/6 | 25.9 mm | UL E70062 | 1.020 in | 0.8 mm | |
PKKL-3S | 7.8 mm | Natural | 19.1 mm | 1.6 mm | 0.750 in | 6.5 mm | 0.307 in | 7.8 mm | 21.0 mm | 85 | Locking | UL94 V-2 | Plug-In | -40 | Nylon 6/6 | 21.1 mm | UL E70062 | 0.830 in | 0.8 mm | |
PKKL-4 | 13.5 mm | Natural | 19.4 mm | 1.6 mm | 0.760 in | 6.5 mm | 0.532 in | 13.5 mm | 32.0 mm | 85 | Locking | UL94 V-2 | Plug-In | -40 | Nylon 6/6 | 30.3 mm | UL E70062 | 1.190 in | 0.8 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
PKKL-3
Maximum Cable Bundle Diameter
9.5 mm
Color
Natural
Overall Width
17.0 mm
Maximum Panel Thickness
1.6 mm
PKKL-3S
Maximum Cable Bundle Diameter
7.8 mm
Color
Natural
Overall Width
19.1 mm
Maximum Panel Thickness
1.6 mm
PKKL-4
Maximum Cable Bundle Diameter
13.5 mm
Color
Natural
Overall Width
19.4 mm
Maximum Panel Thickness
1.6 mm
