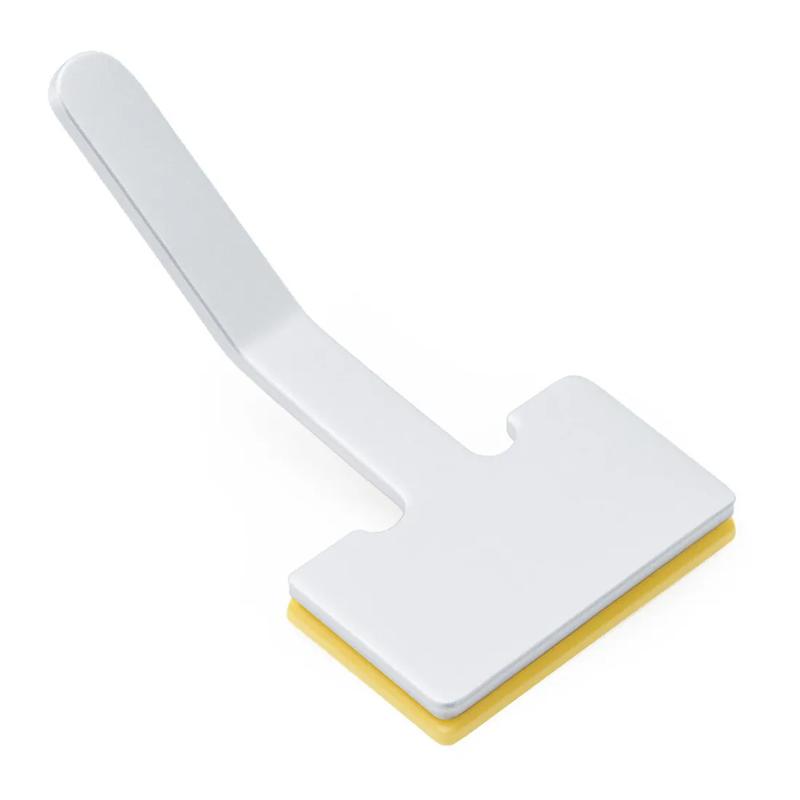

SRPFC - Adhesive Mount Foam Coated Adjustable Steel Clamps
Showing 1-2 of 2
Per page:1-2 of 2

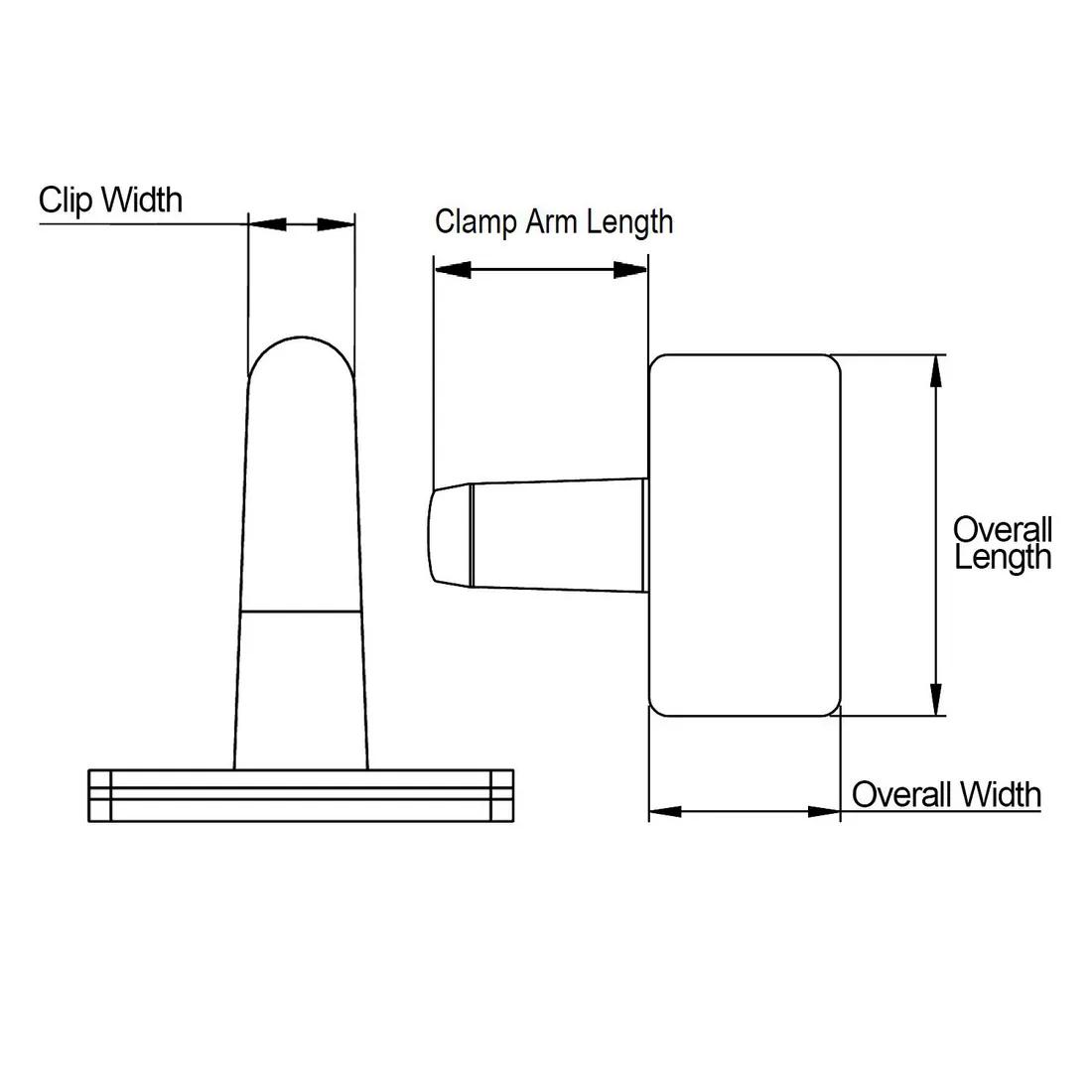

Item Code | Mounting Method | Color | Material Thickness | Material | Overall Width | Overall Length | Base Width | Adhesive Material | Coating | Clamp Arm Length | Clip Width | Clamp Arm Base Length | Adhesive Tape Thickness | Tip Length | Base Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PFC-25M | Adhesive | Gray | 0.8 mm | Aluminum | 10.1 mm | 19.1 mm | 10.1 mm | Acrylic | Protective Foam | 23.65 mm | 4.8 mm | 11.1 mm | 1.0 mm | 12.55 mm | 19.1 mm | |
PFC-50M | Adhesive | Gray | 0.8 mm | Aluminum | 14.05 mm | 24.95 mm | 14.1 mm | Acrylic | Protective Foam | 28.65 mm | 5.2 mm | 14.1 mm | 1.0 mm | 14.55 mm | 25.0 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
PFC-25M
Mounting Method
Adhesive
Color
Gray
Material Thickness
0.8 mm
Material
Aluminum
PFC-50M
Mounting Method
Adhesive
Color
Gray
Material Thickness
0.8 mm
Material
Aluminum
