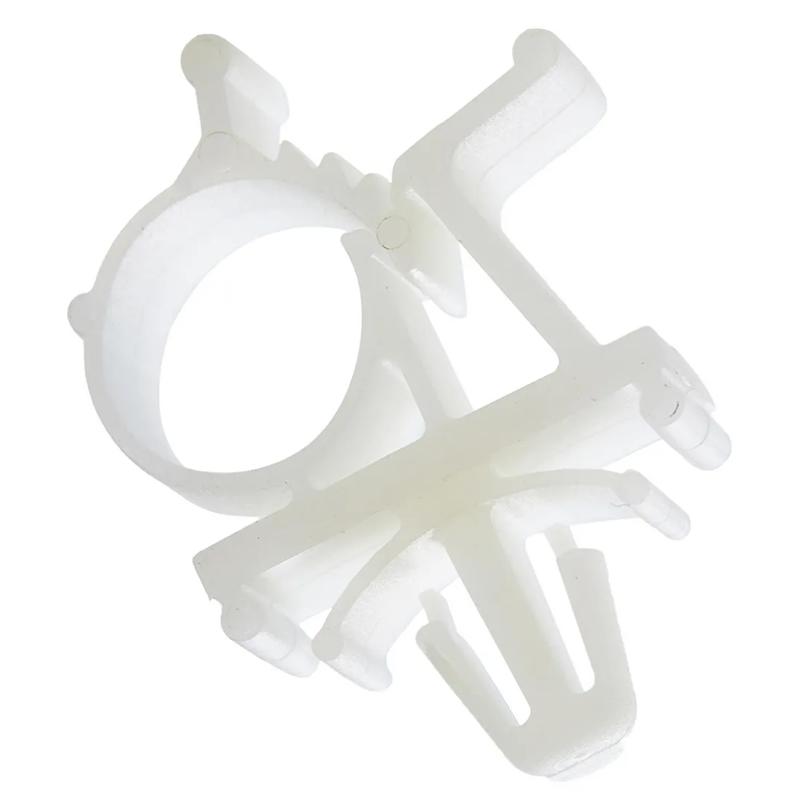

SRPAKKL - Snap In Adjustable Clips

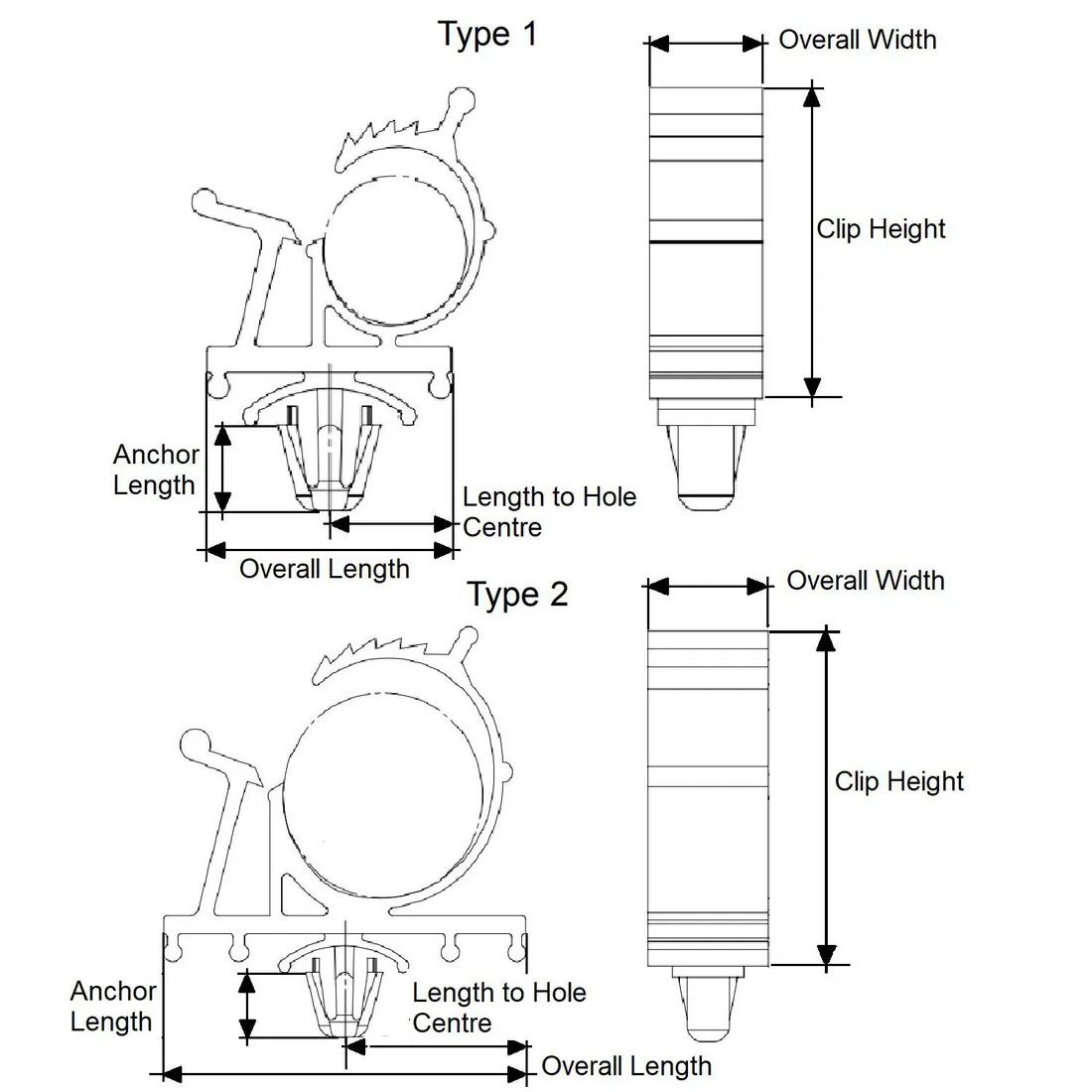

Item Code | Maximum Cable Bundle Diameter | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Style | Clip Height | Maximum Operating Temperature | Type | Material Flammability Standard | Mounting Method | Color | Standoff Height | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Overall Length | UL/CSA Description | Anchor Length | Length to Hole Center | Base Width | Base Length | Minimum Panel Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PAKKL-3140-01 | 10.2 mm | 1.5 mm | 6.35 mm | 0.400 in | 1 | 23.8 mm | 85 | 1 | UL94 V-2 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 7.9 mm | 8.9 mm | 19.1 mm | UL E70062 | 6.6 mm | 9.7 mm | 0.350 in | 0.750 in | 0.8 mm | |
PAKKL-4756-19 | 14.3 mm | 1.5 mm | 6.35 mm | 0.563 in | 1 | 29.8 mm | 85 | 1 | UL94 V-0 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 11.9 mm | 10.2 mm | 31.5 mm | UL E70062 | 6.6 mm | 15.7 mm | 0.394 in | 1.240 in | 0.8 mm | |
PAKKL-5775-01 | 19.1 mm | 1.5 mm | 6.35 mm | 0.750 in | 2 | 34.5 mm | 85 | 2 | UL94 V-2 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 14.7 mm | 12.7 mm | 38.1 mm | UL E70062 | 6.6 mm | 19.1 mm | 0.500 in | 1.500 in | 0.8 mm | |
PAKKL-4756-01 | 14.3 mm | 1.5 mm | 6.35 mm | 0.563 in | 1 | 29.8 mm | 85 | 1 | UL94 V-2 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 11.9 mm | 10.2 mm | 31.5 mm | UL E70062 | 6.6 mm | 15.7 mm | 0.394 in | 1.240 in | 0.8 mm | |
PAKKL-3140-19 | 10.2 mm | 1.5 mm | 6.35 mm | 0.400 in | 1 | 23.8 mm | 85 | 1 | UL94 V-0 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 7.9 mm | 8.9 mm | 19.1 mm | UL E70062 | 6.6 mm | 9.7 mm | 0.350 in | 0.750 in | 0.8 mm | |
PAKKL-5775-19 | 19.1 mm | 1.5 mm | 6.35 mm | 0.750 in | 2 | 34.5 mm | 85 | 2 | UL94 V-0 | None | Natural | 6.6 mm | -40 | Nylon 6/6 | 14.7 mm | 12.7 mm | 38.1 mm | UL E70062 | 6.6 mm | 19.1 mm | 0.500 in | 1.500 in | 0.8 mm |
PAKKL-3140-01
Maximum Cable Bundle Diameter
10.2 mm
Maximum Panel Thickness
1.5 mm
Mounting Hole Diameter
6.35 mm
Maximum Compatible Cable Diameter
0.400 in
PAKKL-4756-19
Maximum Cable Bundle Diameter
14.3 mm
Maximum Panel Thickness
1.5 mm
Mounting Hole Diameter
6.35 mm
Maximum Compatible Cable Diameter
0.563 in
PAKKL-5775-01
Maximum Cable Bundle Diameter
19.1 mm
Maximum Panel Thickness
1.5 mm
Mounting Hole Diameter
6.35 mm
Maximum Compatible Cable Diameter
0.750 in
PAKKL-4756-01
Maximum Cable Bundle Diameter
14.3 mm
Maximum Panel Thickness
1.5 mm
Mounting Hole Diameter
6.35 mm
Maximum Compatible Cable Diameter
0.563 in
