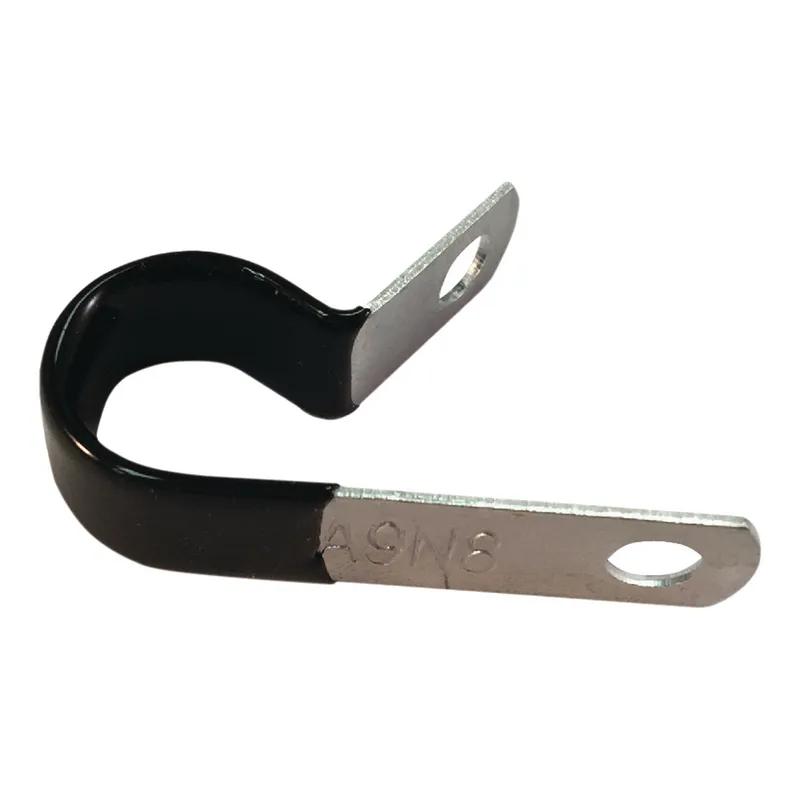

SRNE - Aluminum Clamps with Vinyl Coating
Showing 1-10 of 14
Per page:1-10 of 14
Item Code | Mounting Method | Color | Hole Diameter | Overall Width | Overall Thickness | Length to Hole Center | Maximum Compatible Cable Diameter | Coating | Mounting Hole Centre to Cable Bundle Centre Distance | Maximum Operating Temperature | Grade | Minimum Operating Temperature | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NE10 | None | Black | 5.2 | 9.5 | 0.8 mm | 5.6 mm | 0.625 in | TPV | 19.8 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE16 | None | Black | 5.2 | 12.7 | 1.6 mm | 5.6 mm | 1.000 in | TPV | 24.4 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE4 | None | Black | 5.2 | 9.5 | 0.8 mm | 5.6 mm | 0.250 in | TPV | 13.5 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE5 | None | Black | 5.2 | 9.5 | 0.8 mm | 5.6 mm | 0.313 in | TPV | 14.2 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE3 | None | Black | 5.2 | 9.5 | 0.8 mm | 5.6 mm | 0.188 in | TPV | 12.7 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE12 | None | Black | 5.2 | 12.7 | 1.6 mm | 5.6 mm | 0.750 in | TPV | 21.3 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE20 | None | Black | 5.2 | 12.7 | 1.6 mm | 5.6 mm | 1.250 in | TPV | 28.2 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE14 | None | Black | 5.2 | 12.7 | 1.6 mm | 5.6 mm | 0.875 in | TPV | 22.9 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy | |
NE9 | None | Black | 5.2 | 9.5 | 0.8 mm | 5.6 mm | 0.563 in | TPV | 19.1 mm | 122 °F | 5052 H-32 | 32 °F | Aluminum Alloy |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
NE10
Mounting Method
None
Color
Black
Hole Diameter
5.2
Overall Width
9.5
NE16
Mounting Method
None
Color
Black
Hole Diameter
5.2
Overall Width
12.7
NE4
Mounting Method
None
Color
Black
Hole Diameter
5.2
Overall Width
9.5
NE5
Mounting Method
None
Color
Black
Hole Diameter
5.2
Overall Width
9.5
Per page:
1–5 of 15
