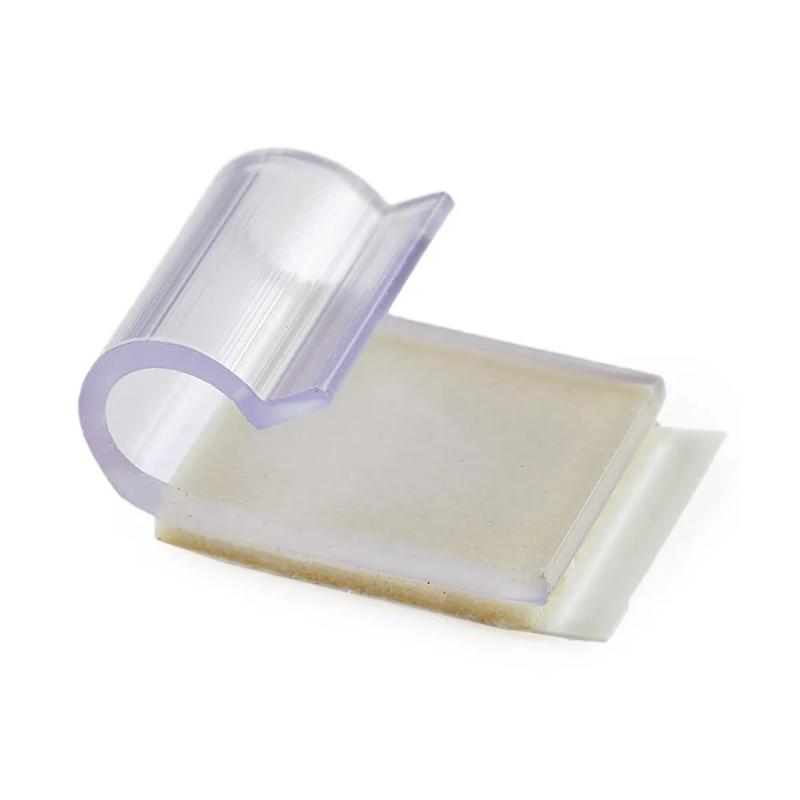

SRMKKJ - Mini Adhesive Mount Clamps
Showing 1-5 of 5
Per page:1-5 of 5

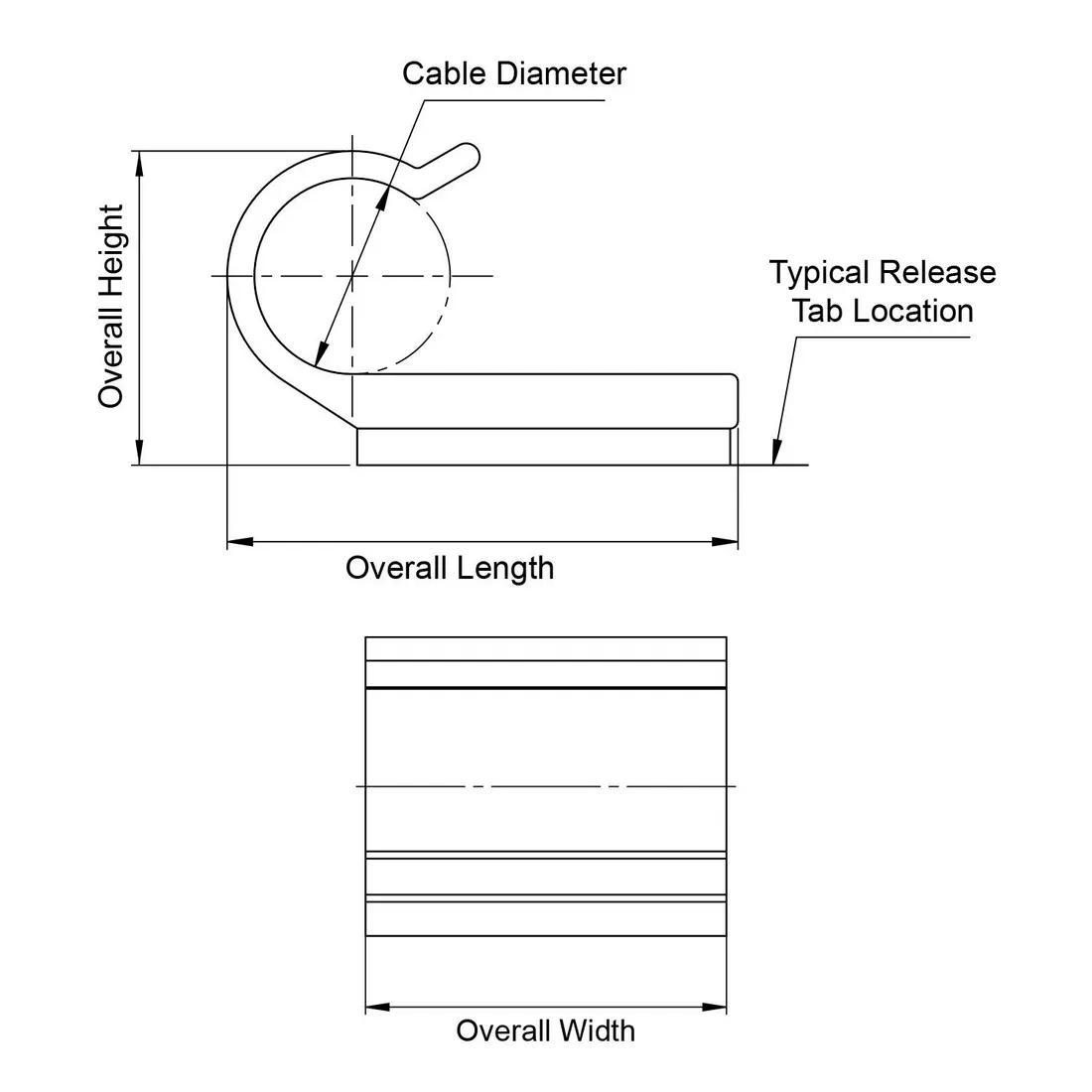

Item Code | Mounting Method | Color | Maximum Material Thickness | Overall Width | Base Width | Adhesive Material | Maximum Compatible Cable Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Style | Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MKKJ-5-RT | None | Transparent | 0.8 mm | 14.3 mm | 0.563 in | Acrylic | 0.313 in | 12.3 | 50 | 0 | PVC | 20.6 mm | UL E41877 | 0.813 in | Mini J | 7.9 mm | |
MKKJ-2-RT | None | Transparent | 0.8 mm | 9.5 mm | 0.380 in | Acrylic | 0.125 in | 6.0 | 50 | 0 | PVC | 11.1 mm | UL E41877 | 0.438 in | Mini J | 3.2 mm | |
MKKJ-6-RT | None | Transparent | 0.8 mm | 15.9 mm | 0.625 in | Acrylic | 0.375 in | 14.3 | 50 | 0 | PVC | 22.2 mm | UL E41877 | 0.875 in | Mini J | 9.5 mm | |
MKKJ-4-RT | None | Transparent | 0.8 mm | 12.7 mm | 0.500 in | Acrylic | 0.250 in | 10.3 | 50 | 0 | PVC | 16.7 mm | UL E41877 | 0.656 in | Mini J | 6.4 mm | |
MKKJ-3-RT | None | Transparent | 0.8 mm | 11.1 mm | 0.438 in | Acrylic | 0.188 in | 8.3 | 50 | 0 | PVC | 15.9 mm | UL E41877 | 0.625 in | Mini J | 4.8 mm |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
MKKJ-5-RT
Mounting Method
None
Color
Transparent
Maximum Material Thickness
0.8 mm
Overall Width
14.3 mm
MKKJ-2-RT
Mounting Method
None
Color
Transparent
Maximum Material Thickness
0.8 mm
Overall Width
9.5 mm
MKKJ-6-RT
Mounting Method
None
Color
Transparent
Maximum Material Thickness
0.8 mm
Overall Width
15.9 mm
MKKJ-4-RT
Mounting Method
None
Color
Transparent
Maximum Material Thickness
0.8 mm
Overall Width
12.7 mm
Per page:
1–5 of 6
