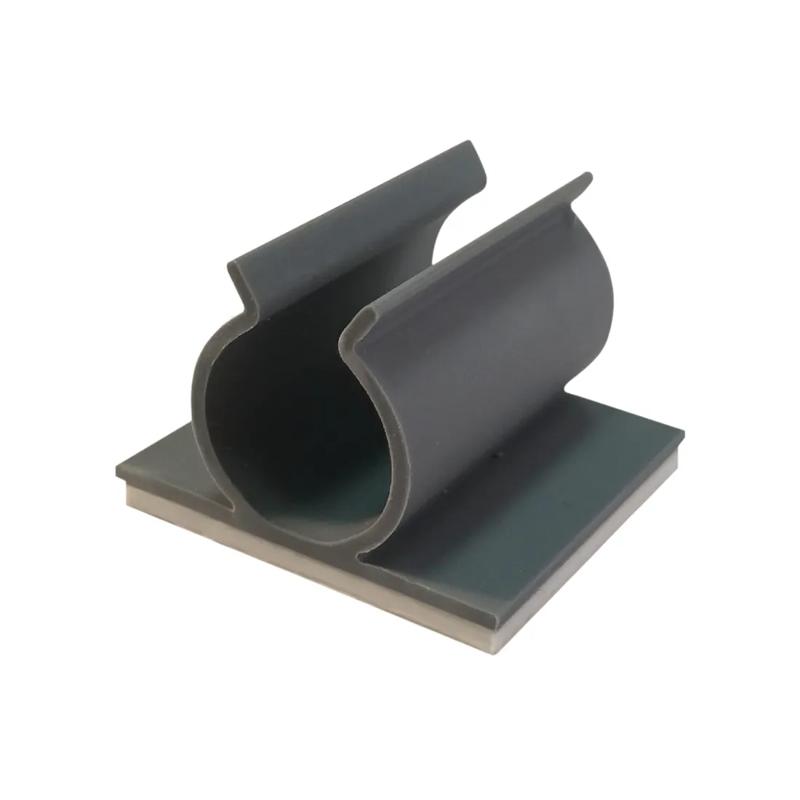

SRKKU - Adhesive Mount Clamps
Showing 1-6 of 6
Per page:1-6 of 6
Item Code | Mounting Method | Maximum Cable Bundle Diameter | Color | Overall Width | Adhesive Material | Cable Diameter | Overall Height | Maximum Operating Temperature | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KKU-12-RT | None | 19.1 mm | Gray | 25.4 mm | Acrylic | 19.1 mm | 23.0 mm | 50 °C | 0 °C | PVC | 25.4 mm | UL E41877 | |
KKU-8-RT | None | 12.7 mm | Gray | 25.4 mm | Acrylic | 12.7 mm | 17.5 mm | 50 °C | 0 °C | PVC | 25.4 mm | UL E41877 | |
KKU-9-RT | None | 14.3 mm | Gray | 25.4 mm | Acrylic | 14.3 mm | 19.1 mm | 50 °C | 0 °C | PVC | 25.4 mm | UL E41877 | |
KKU-6-RT | None | 9.5 mm | Gray | 19.1 mm | Acrylic | 9.5 mm | 15.1 mm | 50 °C | 0 °C | PVC | 19.1 mm | UL E41877 | |
KKU-4-RT | None | 6.4 mm | Gray | 19.1 mm | Acrylic | 6.4 mm | 11.9 mm | 50 °C | 0 °C | PVC | 19.1 mm | UL E41877 | |
KKU-2-RT | None | 3.2 mm | Gray | 19.1 mm | Acrylic | 3.2 mm | 7.1 mm | 50 °C | 0 °C | PVC | 19.1 mm | UL E41877 |
Per page:
1-6 of 6
1–5 of 6 variants
Per page:
KKU-12-RT
Mounting Method
None
Maximum Cable Bundle Diameter
19.1 mm
Color
Gray
Overall Width
25.4 mm
KKU-8-RT
Mounting Method
None
Maximum Cable Bundle Diameter
12.7 mm
Color
Gray
Overall Width
25.4 mm
KKU-9-RT
Mounting Method
None
Maximum Cable Bundle Diameter
14.3 mm
Color
Gray
Overall Width
25.4 mm
KKU-6-RT
Mounting Method
None
Maximum Cable Bundle Diameter
9.5 mm
Color
Gray
Overall Width
19.1 mm
