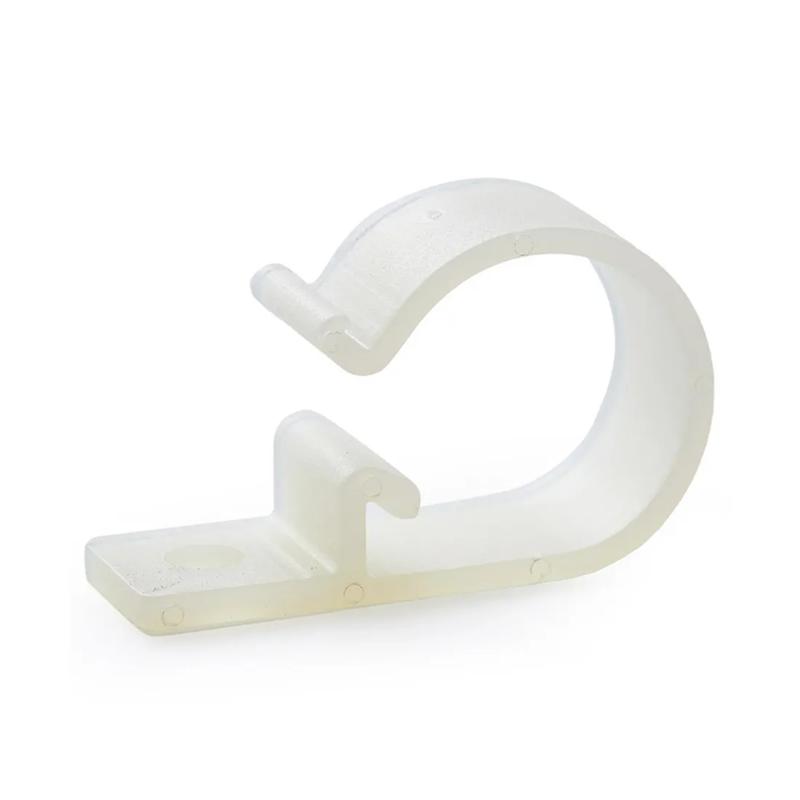

SREXWHC - Wire Harness Clamps
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Color | Wall Thickness | Hole Diameter | Overall Width | Overall Thickness | Base Width | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Length to Hole Center | Maximum Operating Temperature | Length to Hole Center | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Base Length | Style | Cable Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EXWHC2-500-01 | Natural | 1.6 mm | 0.156 in | 10.0 mm | 1.6 mm | 0.394 in | 4.0 mm | 0.500 in | 4.7 mm | 85 | 5.0 mm | UL94 V-2 | None | -40 | Nylon 6/6 | 30.0 mm | UL E70062 | 1.181 in | 3 | 12.7 mm | |
EXWHC2-750-01 | Natural | 1.8 mm | 0.156 in | 12.7 mm | 1.8 mm | 0.500 in | 4.0 mm | 0.750 in | 4.7 mm | 85 | 6.35 mm | UL94 V-2 | None | -40 | Nylon 6/6 | 35.0 mm | UL E70062 | 1.377 in | 3 | 18.0 mm | |
EXWHC2-250-01 | Natural | 1.0 mm | 0.156 in | 10.0 mm | 1.0 mm | 0.394 in | 4.0 mm | 0.250 in | 6.0 mm | 85 | 5.0 mm | UL94 V-2 | None | -40 | Nylon 6/6 | 21.0 mm | UL E70062 | 0.830 in | 4 | 6.35 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
EXWHC2-500-01
Color
Natural
Wall Thickness
1.6 mm
Hole Diameter
0.156 in
Overall Width
10.0 mm
EXWHC2-750-01
Color
Natural
Wall Thickness
1.8 mm
Hole Diameter
0.156 in
Overall Width
12.7 mm
EXWHC2-250-01
Color
Natural
Wall Thickness
1.0 mm
Hole Diameter
0.156 in
Overall Width
10.0 mm
