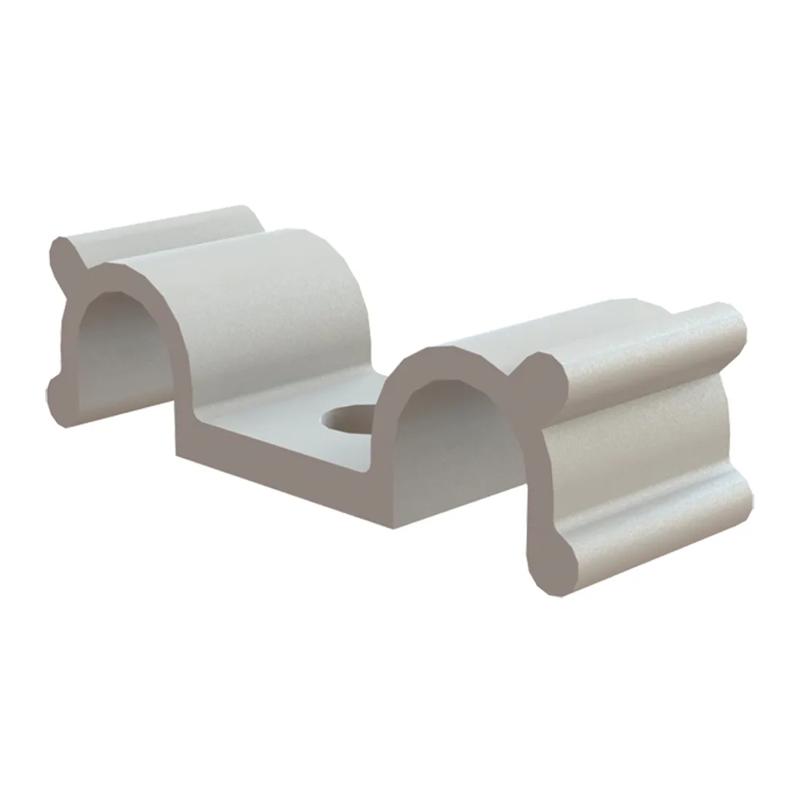

SRDHURCS - U Clamps
Showing 1-3 of 3
Per page:1-3 of 3

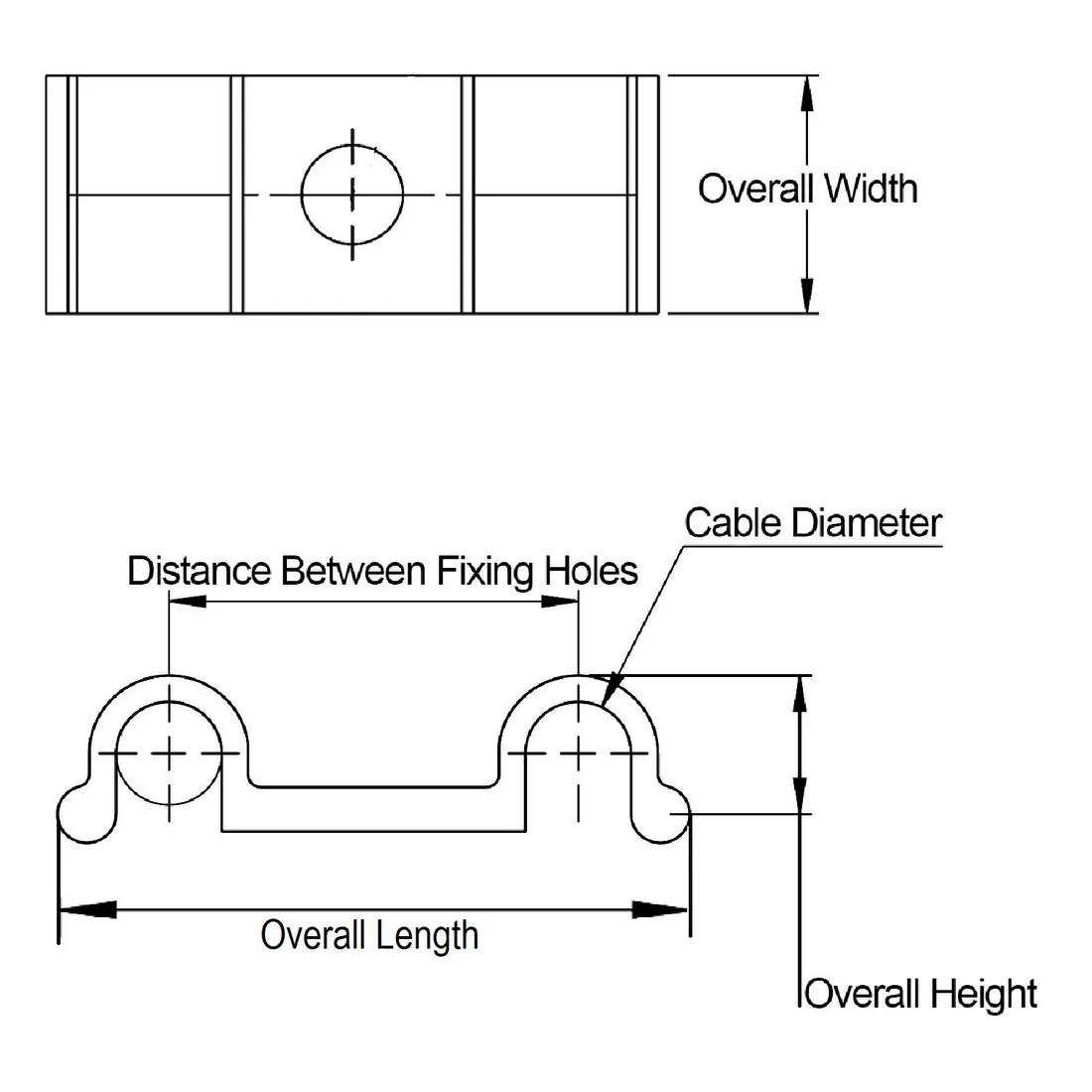

Item Code | Mounting Method | Color | Hole Diameter | Maximum Compatible Cable Diameter | Cable Diameter | Overall Height | Maximum Operating Temperature | Adjustability | Minimum Operating Temperature | Thread Size | Material | Overall Width | Distance Between Fixing Holes | Overall Length | UL/CSA Description | Length to Hole Center | Base Width | Base Length | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DHURCS-4-01 | Screw | Natural | 3.2 | 0.250 in | 6.4 mm | 7.6 | 85 | Fixed | -40 | #4, M3 | Nylon 6/6 | 7.6 mm | 16.2 mm | 25.9 mm | UL E70062 | 3.8 mm | 0.300 in | 1.020 in | |
DHURCS-3-01 | Screw | Natural | 3.2 | 0.188 in | 4.8 mm | 6.1 | 85 | Fixed | -40 | #4, M3 | Nylon 6/6 | 7.6 mm | 14.2 mm | 22.6 mm | UL E70062 | 3.8 mm | 0.300 in | 0.890 in | |
DHURCS-2-01 | Screw | Natural | 3.2 | 0.125 in | 3.2 mm | 4.3 | 85 | Fixed | -40 | #4, M3 | Nylon 6/6 | 7.6 mm | 12.4 mm | 19.0 mm | UL E70062 | 3.8 mm | 0.300 in | 0.750 in |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
DHURCS-4-01
Mounting Method
Screw
Color
Natural
Hole Diameter
3.2
Maximum Compatible Cable Diameter
0.250 in
DHURCS-3-01
Mounting Method
Screw
Color
Natural
Hole Diameter
3.2
Maximum Compatible Cable Diameter
0.188 in
DHURCS-2-01
Mounting Method
Screw
Color
Natural
Hole Diameter
3.2
Maximum Compatible Cable Diameter
0.125 in
