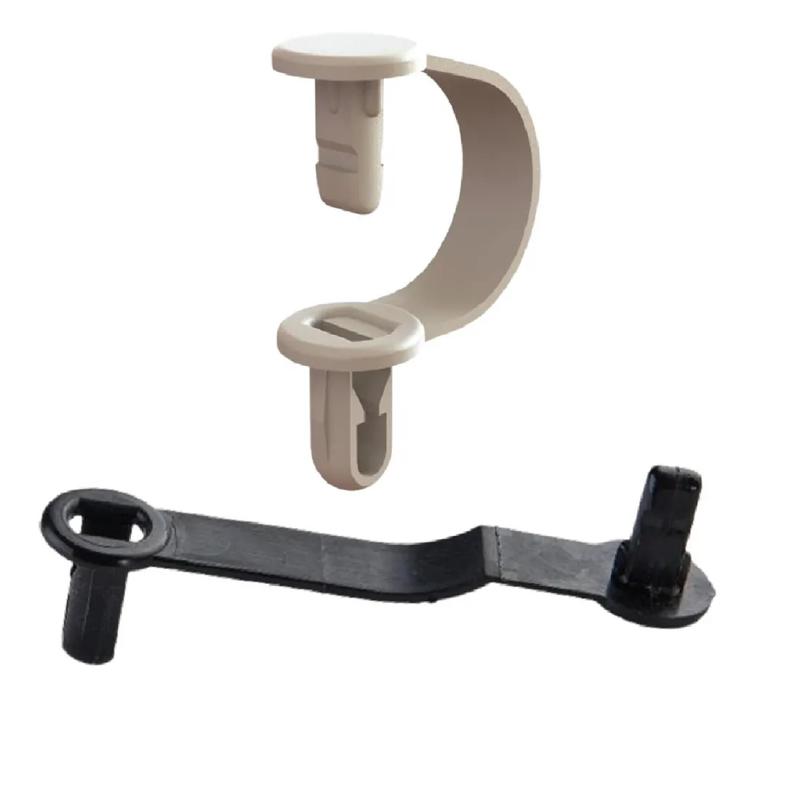

SRCH - Snap In Cable Hanger
Showing 1-8 of 8
Per page:1-8 of 8

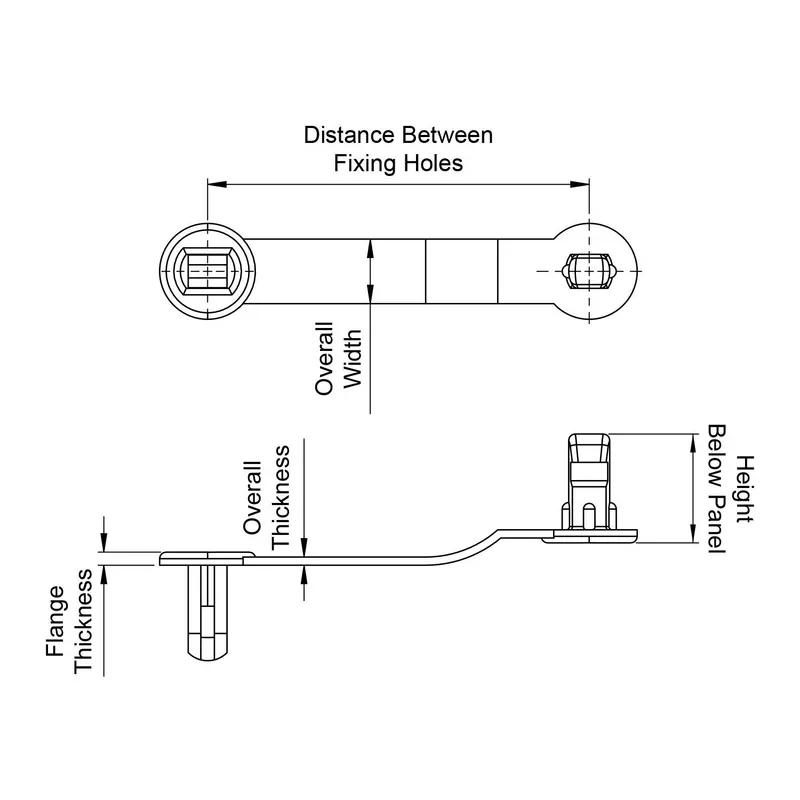

Item Code | Color | UL/CSA Description | Overall Thickness | Maximum Panel Thickness | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Height Above the Panel | Plate Thickness | Height Above the Panel | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Overall Diameter | Overall Width | Distance Between Fixing Holes | Minimum Panel Thickness | Style | Cable Diameter | Flange Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CH-2-10 | Natural | UL E169973 | 1.0 mm | 2.4 mm | 6.4 mm | 0.625 in | 12..7 mm | 1.0 mm | 9.6 mm | 65 | UL94 HB | None | 0 | PP | 11.2 mm | 7.5 mm | 66.7 mm | 0.8 | 1 | 15.9 mm | 1.5 mm | |
CH-2-10BK | Black | UL E169973 | 1.0 mm | 2.4 mm | 6.4 mm | 0.625 in | 12..7 mm | 1.0 mm | 9.6 mm | 65 | UL94 HB | None | 0 | PP | 11.2 mm | 7.5 mm | 66.7 mm | 0.8 | 1 | 15.9 mm | 1.5 mm | |
CH-1-10 | Natural | UL E169973 | 1.0 mm | 2.4 mm | 6.4 mm | 0.375 in | 12..7 mm | 1.0 mm | 9.6 mm | 65 | UL94 HB | None | 0 | PP | 11.2 mm | 7.5 mm | 44.5 mm | 0.8 | 1 | 9.5 mm | 1.5 mm | |
CH-2-01 | Natural | UL E70062 | 1.0 mm | 2.4 mm | 6.4 mm | 0.625 in | 12..7 mm | 1.0 mm | 9.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 11.2 mm | 7.5 mm | 66.7 mm | 0.8 | 1 | 15.9 mm | 1.5 mm | |
CH-1-01BK | Black | UL E70062 | 1.0 mm | 2.4 mm | 6.4 mm | 0.375 in | 12..7 mm | 1.0 mm | 9.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 11.2 mm | 7.5 mm | 44.5 mm | 0.8 | 1 | 9.5 mm | 1.5 mm | |
CH-1-01 | Natural | UL E70062 | 1.0 mm | 2.4 mm | 6.4 mm | 0.375 in | 12..7 mm | 1.0 mm | 9.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 11.2 mm | 7.5 mm | 44.5 mm | 0.8 | 1 | 9.5 mm | 1.5 mm | |
CH-1-10BK | Black | UL E169973 | 1.0 mm | 2.4 mm | 6.4 mm | 0.375 in | 12..7 mm | 1.0 mm | 9.6 mm | 65 | UL94 HB | None | 0 | PP | 11.2 mm | 7.5 mm | 44.5 mm | 0.8 | 1 | 9.5 mm | 1.5 mm | |
CH-2-01BK | Black | UL E70062 | 1.0 mm | 2.4 mm | 6.4 mm | 0.625 in | 12..7 mm | 1.0 mm | 9.6 mm | 85 | UL94 V-2 | None | -40 | Nylon 6/6 | 11.2 mm | 7.5 mm | 66.7 mm | 0.8 | 1 | 15.9 mm | 1.5 mm |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
CH-2-10
Color
Natural
UL/CSA Description
UL E169973
Overall Thickness
1.0 mm
Maximum Panel Thickness
2.4 mm
CH-2-10BK
Color
Black
UL/CSA Description
UL E169973
Overall Thickness
1.0 mm
Maximum Panel Thickness
2.4 mm
CH-1-10
Color
Natural
UL/CSA Description
UL E169973
Overall Thickness
1.0 mm
Maximum Panel Thickness
2.4 mm
CH-2-01
Color
Natural
UL/CSA Description
UL E70062
Overall Thickness
1.0 mm
Maximum Panel Thickness
2.4 mm
Per page:
1–5 of 9
