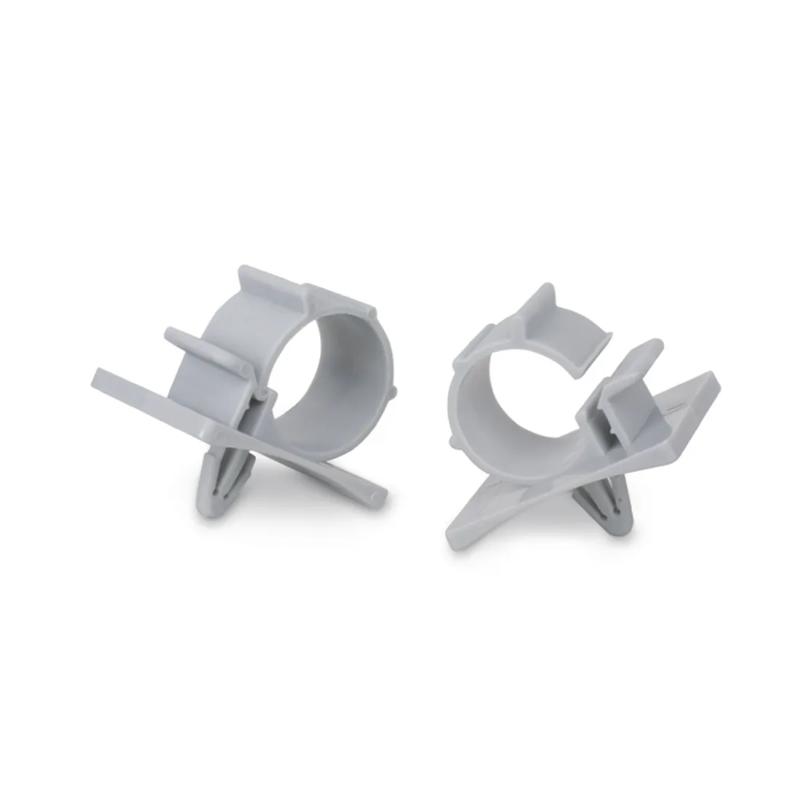

SRCCP - Push Mount & Adhesive Clamps
Showing 1-3 of 3
Per page:1-3 of 3
Item Code | Maximum Cable Bundle Diameter | Color | Overall Length | Maximum Panel Thickness | Base Width | Mounting Hole Diameter | Maximum Compatible Cable Diameter | Maximum Operating Temperature | Material Flammability Standard | Mounting Method | Minimum Operating Temperature | Material | Minimum Cable Bundle Diameter | Overall Width | Base Length | Minimum Panel Thickness | UL/CSA Description | Overall Thickness | Panel Thickness | Overall Height | Distance Between Fixing Holes | Overall Leg Length (Seed) | Mounting Hole Distance | Size | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCP005A | 0.710 in | Gray | 1.181 in | 0.110 in | 0.984 in | 0.187 in | 0.709 in | 185 °F | UL94 V-2 | N/A | -40 °F | Nylon 6/6 | 0.620 in | 0.984 in | 1.181 in | 0.070 in | - | - | - | - | - | - | - | - | |
CCP004A | 0.550 in | Gray | 1.181 in | 0.110 in | 0.984 in | 0.187 in | 0.551 in | 185 °F | UL94 V-2 | N/A | -40 °F | Nylon 6/6 | 0.470 in | 0.984 in | 1.181 in | 0.070 in | - | - | - | - | - | - | - | - | |
CCP-1-01 | - | Natural | - | - | - | 3.2 mm | - | 85 | UL94 V-2 | - | -40 | Nylon 6/6 | - | 38.1 | - | - | UL E70062 | 7.1 | 1.6 | 22.1 | 31.8 | 10.2 mm | 7.6 mm | 3.1 mm |
Per page:
1-3 of 3
1–4 of 3 variants
Per page:
CCP005A
Maximum Cable Bundle Diameter
0.710 in
Color
Gray
Overall Length
1.181 in
Maximum Panel Thickness
0.110 in
CCP004A
Maximum Cable Bundle Diameter
0.550 in
Color
Gray
Overall Length
1.181 in
Maximum Panel Thickness
0.110 in
CCP-1-01
Material Flammability Standard
UL94 V-2
Color
Natural
UL/CSA Description
UL E70062
Overall Thickness
7.1
