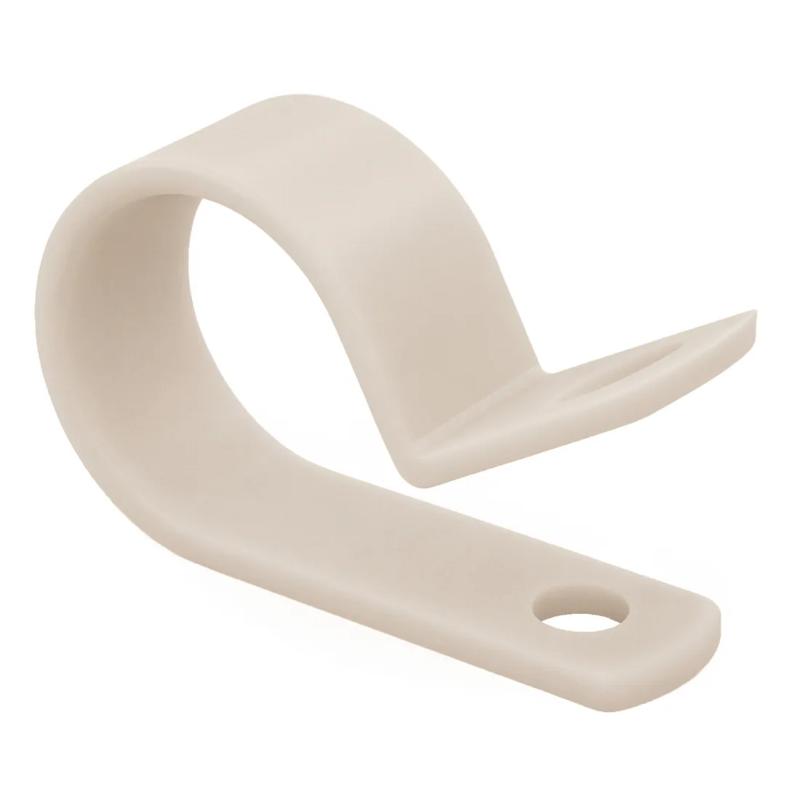

SRCCL - Cable Clamps
Showing 1-10 of 12
Per page:1-10 of 12

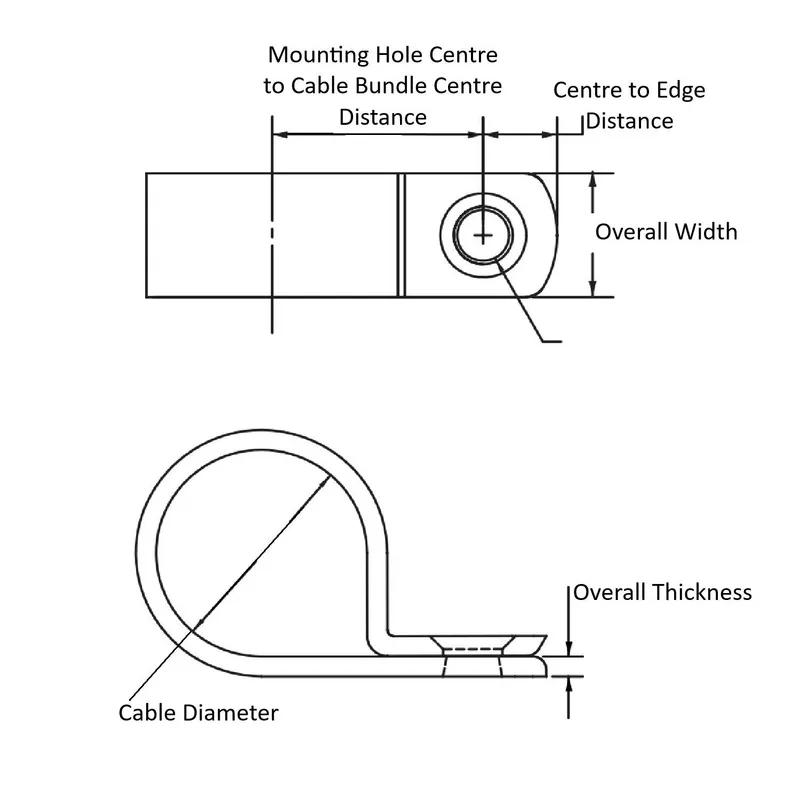

Item Code | Color | Hole Diameter | Material | Overall Width | Overall Thickness | Material Flammability Standard | Mounting Method | Style | Cable Diameter | Centre to Edge Distance | Mounting Hole Centre to Cable Bundle Centre Distance | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCL005A | Natural | 4.6 mm | Nylon 6/6 | 12.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 9.5 mm | 5.6 mm | 12.5 mm | |
CCL007A | Natural | 4.6 mm | Nylon 6/6 | 12.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 15.9 mm | 5.6 mm | 18.8 mm | |
CCL001A | Natural | 4.8 mm | Nylon 6/6 | 9.6 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 3.2 mm | 5.6 mm | 9.5 mm | |
CCL009A | Natural | 4.6 mm | Nylon 6/6 | 12.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 25.4 mm | 5.6 mm | 22.0 mm | |
CCL006A | Natural | 5.0 mm | Nylon 6/6 | 12.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 12.7 mm | 5.6 mm | 15.2 mm | |
CCL003A | Natural | 4.6 mm | Nylon 6/6 | 10.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 6.4 mm | 5.6 mm | 10.0 mm | |
CCL011A | Natural | 4.6 mm | Nylon 6/6 | 12.0 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 31.8 mm | 5.6 mm | 26.2 mm | |
CCL002A | Natural | 4.7 mm | Nylon 6/6 | 9.6 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 4.7 mm | 5.6 mm | 10.5 mm | |
CCL008A | Natural | 4.6 mm | Nylon 6/6 | 11.8 mm | 1.6 mm | UL94 V-2 | Screw | P-Clip | 19.1 mm | 5.6 mm | - |
Per page:
1-10 of 12
1–5 of 12 variants
Per page:
CCL005A
Color
Natural
Hole Diameter
4.6 mm
Material
Nylon 6/6
Overall Width
12.0 mm
CCL007A
Color
Natural
Hole Diameter
4.6 mm
Material
Nylon 6/6
Overall Width
12.0 mm
CCL001A
Color
Natural
Hole Diameter
4.8 mm
Material
Nylon 6/6
Overall Width
9.6 mm
CCL009A
Color
Natural
Hole Diameter
4.6 mm
Material
Nylon 6/6
Overall Width
12.0 mm
Per page:
1–5 of 13
