SRCCA - Adhesive Mount Cable Clamps
Showing 1-10 of 11
Per page:1-10 of 11

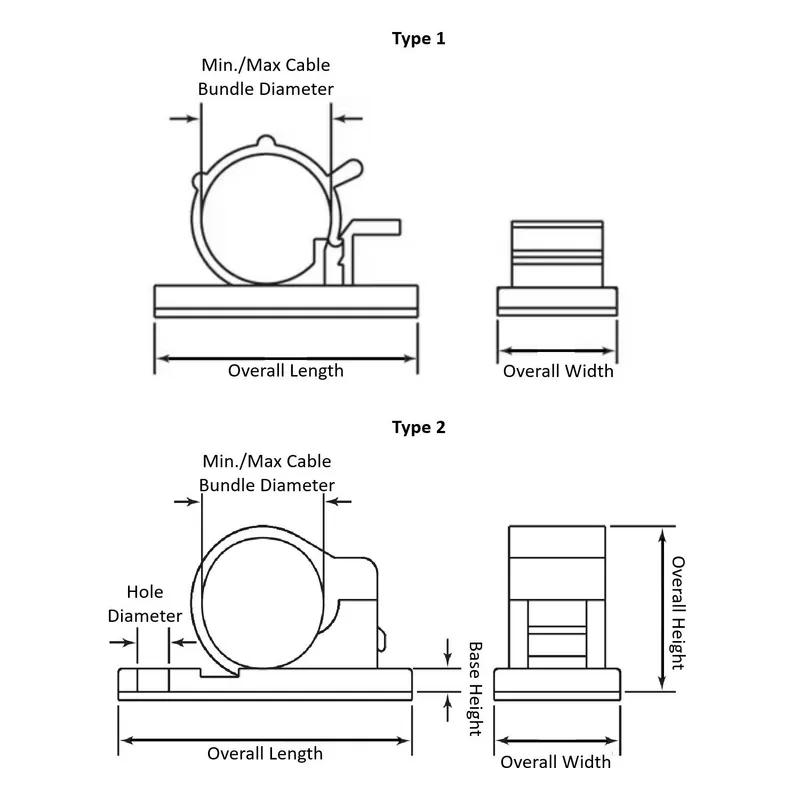

Item Code | Maximum Cable Bundle Diameter | Color | Hole Diameter | Material | Overall Length | Style | Material Flammability Standard | Mounting Method | Minimum Cable Bundle Diameter | Overall Width | Design | Type | Base Height | Overall Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CCA010A | 0.550 in | Gray | 0.189 in | Nylon 6/6 | 1.181 in | 1 | UL94 V-2 | N/A | 0.470 in | 0.965 in | Cierre de dos etapas | Locking | - | - | |
CCA007A | 0.280 in | Gray | 0.189 in | Nylon 6/6 | 0.984 in | 1 | UL94 V-2 | N/A | 0.230 in | 0.787 in | Cierre de dos etapas | Locking | - | - | |
CCA009A | 0.390 in | Gray | 0.189 in | Nylon 6/6 | 1.181 in | 1 | UL94 V-2 | N/A | 0.350 in | 0.965 in | Cierre de dos etapas | Locking | - | - | |
CCA008A | 0.310 in | Gray | 0.189 in | Nylon 6/6 | 0.984 in | 1 | UL94 V-2 | N/A | 0.280 in | 0.787 in | Cierre de dos etapas | Locking | - | - | |
CCA011A | 0.710 in | Gray | 0.189 in | Nylon 6/6 | 1.181 in | 1 | UL94 V-2 | N/A | 0.620 in | 0.965 in | Cierre de dos etapas | Locking | - | - | |
CCA003A | 0.470 in | Black | 0.209 in | Nylon 6/6 | 1.370 in | - | UL94 V-2 | Adhesive, Screw mount | - | 0.650 in | - | 2 | 0.118 in | 0.730 in | |
CCA006A | 0.670 in | Black | 0.189 in | Nylon 6/6 | 1.630 in | - | UL94 V-2 | Adhesive, Screw mount | - | 0.610 in | - | 2 | 0.122 in | 0.980 in | |
CCA005A | 0.590 in | Black | 0.197 in | Nylon 6/6 | 1.500 in | - | UL94 V-2 | Adhesive, Screw mount | - | 0.630 in | - | 2 | 0.106 in | 0.800 in | |
CCA001A | 0.220 in | Black | 0.197 in | Nylon 6/6 | 1.020 in | - | UL94 V-2 | Adhesive, Screw mount | - | 0.530 in | - | 2 | 0.118 in | 0.480 in |
Per page:
1-10 of 11
1–5 of 11 variants
Per page:
CCA010A
Maximum Cable Bundle Diameter
0.550 in
Color
Gray
Hole Diameter
0.189 in
Material
Nylon 6/6
CCA007A
Maximum Cable Bundle Diameter
0.280 in
Color
Gray
Hole Diameter
0.189 in
Material
Nylon 6/6
CCA009A
Maximum Cable Bundle Diameter
0.390 in
Color
Gray
Hole Diameter
0.189 in
Material
Nylon 6/6
CCA008A
Maximum Cable Bundle Diameter
0.310 in
Color
Gray
Hole Diameter
0.189 in
Material
Nylon 6/6
