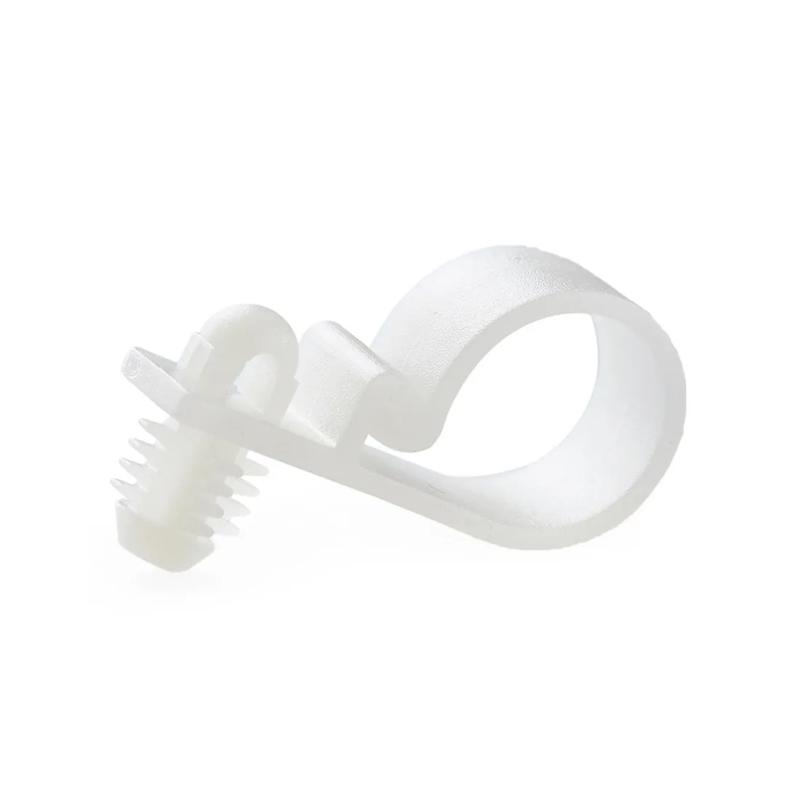

SRBHLWHC - Blind Hole Mounted Clamps
Showing 1-2 of 2
Per page:1-2 of 2

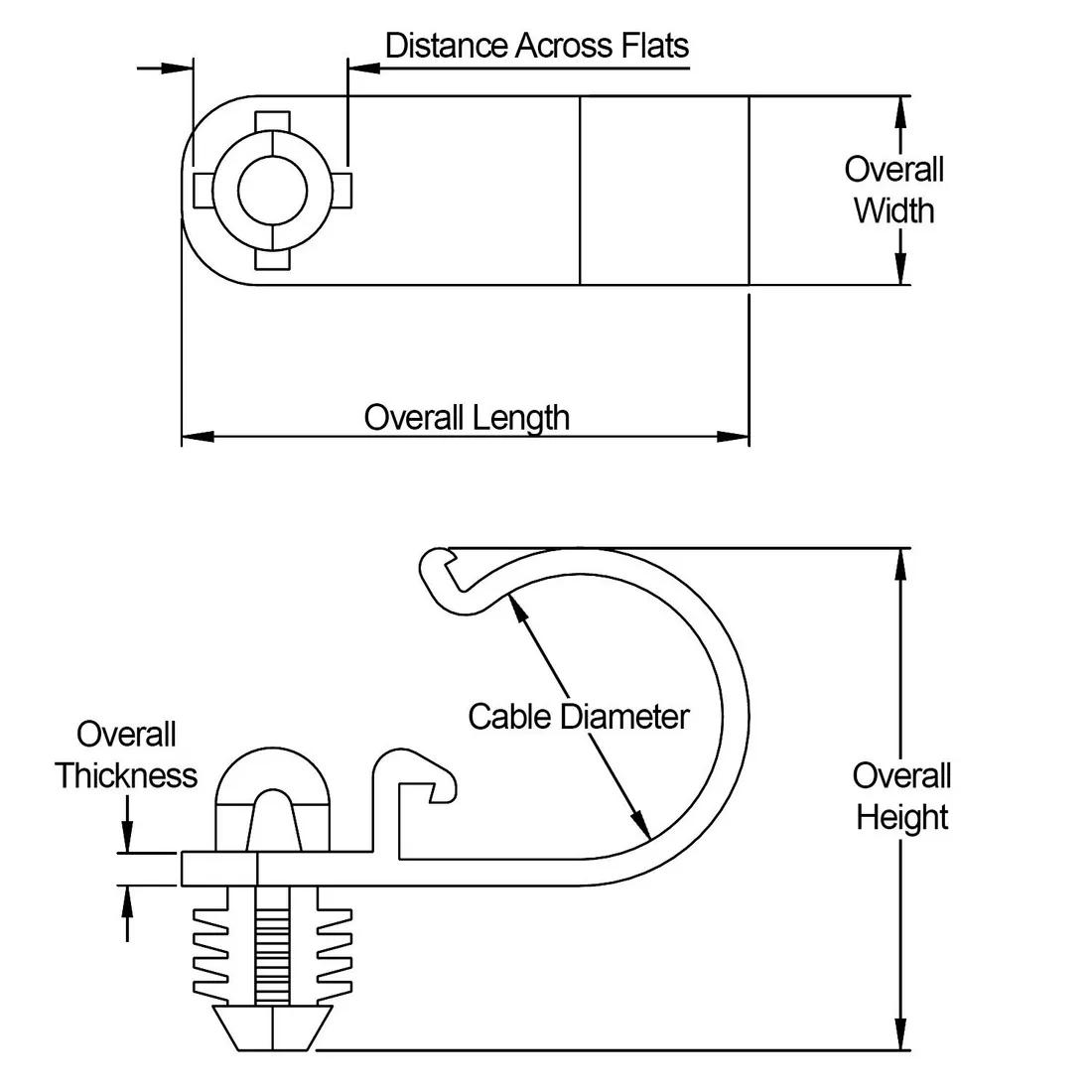

Item Code | Mounting Method | Color | Overall Width | Overall Thickness | Distance Across Flats | Mounting Hole Diameter | Mounting Height | Maximum Compatible Cable Diameter | Cable Diameter | Overall Height | Maximum Operating Temperature | Mounting Hole Length | Minimum Operating Temperature | Material | Overall Length | UL/CSA Description | Knob Length | Panel Thickness | Plate Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BHLWHC-500-01 | None | Natural | 10.0 | 1.8 mm | 6.0 mm | 7.92 mm | 0.528 in | 0.500 in | 12.7 mm | 25.4 | 85 | 8.7 mm | -40 | Nylon 6/6 | 29.3 mm | UL E70062 | 0.375 in | 6.35 mm | 1.8 mm | |
BHLWHC-750-01 | None | Natural | 10.0 | 1.8 mm | 6.0 mm | 7.92 mm | - | 0.750 in | 19.1 mm | 34.1 | 85 | 8.7 mm | -40 | Nylon 6/6 | 36.3 | UL E70062 | - | 6.35 mm | 1.8 mm |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
BHLWHC-500-01
Mounting Method
None
Color
Natural
Overall Width
10.0
Overall Thickness
1.8 mm
BHLWHC-750-01
Mounting Method
None
Color
Natural
Overall Width
10.0
Overall Thickness
1.8 mm
