SR23RCFB035C - Releasable Clamps on Fin Base
Showing 1-2 of 2
Per page:1-2 of 2

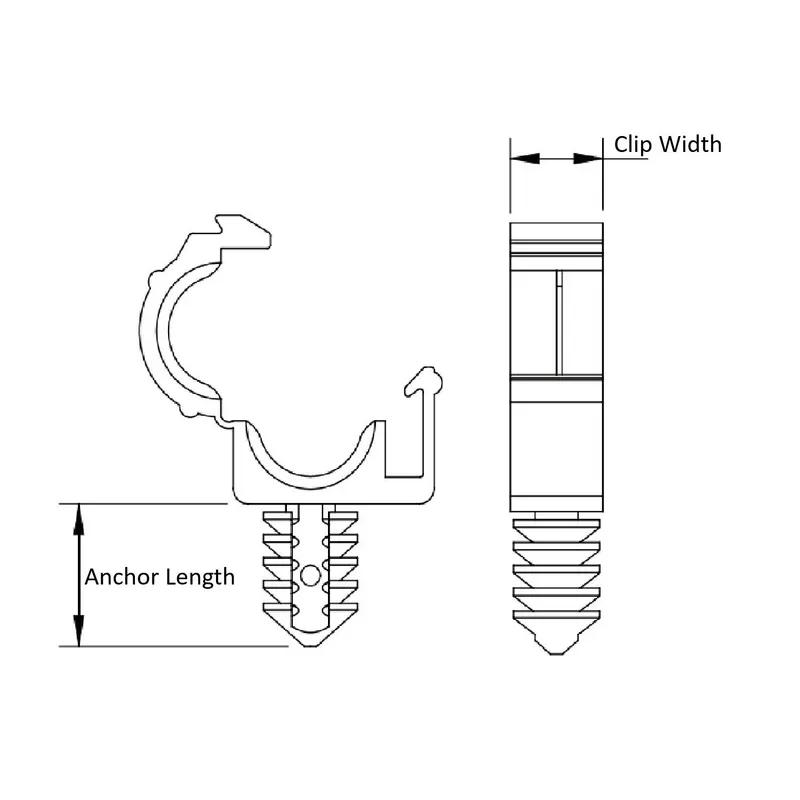

Item Code | Material Flammability Standard | Color | Material | Anchor Length | Maximum Panel Thickness | Mounting Hole Diameter | Minimum Panel Thickness | Cable Diameter | Clip Width | Mounting Method | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
23RCFB035CB | UL94 V-2 | Black | Nylon 6/6 | 0.437 in | 0.203 in | 0.265 in | 0.020 in | 0.350 in | 0.300 in | - | |
23RCFB035C | UL94 V-2 | Natural | Nylon 6/6 | 0.437 in | 0.203 in | 0.265 in | 0.020 in | 0.350 in | 0.300 in | De inserción a presión |
Per page:
1-2 of 2
1–3 of 2 variants
Per page:
23RCFB035CB
Material Flammability Standard
UL94 V-2
Color
Black
Material
Nylon 6/6
Anchor Length
0.437 in
23RCFB035C
Color
Natural
Material
Nylon 6/6
Anchor Length
0.437 in
Maximum Panel Thickness
0.203 in
