SR22SPC - Adhesive Mount U Clips
Showing 1-5 of 5
Per page:1-5 of 5

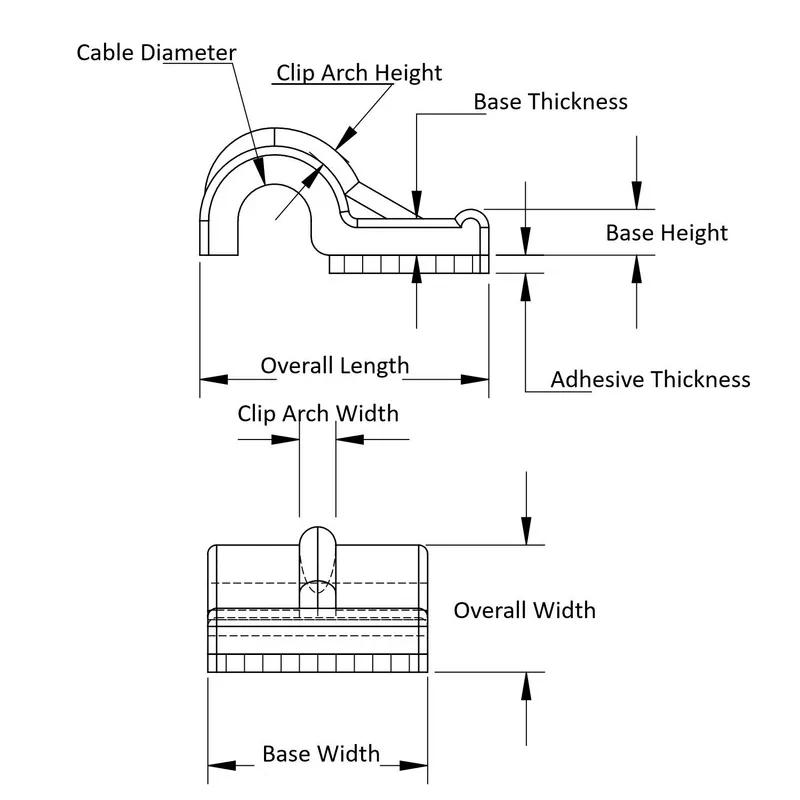

Item Code | Material Flammability Standard | Color | Base Thickness | Material | Overall Width | Overall Length | Clip Arch Width | Base Width | Base Height | Cable Diameter | Clip Arch Height | Overall Height | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22SPC50575 | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.750 in | 1.125 in | 0.062 in | 0.750 in | 0.078 in | 0.500 in | 0.031 in | 0.593 in | |
22SPC20000 | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.500 in | 0.808 in | 0.062 in | 0.500 in | 0.078 in | 0.203 in | 0.031 in | 0.289 in | |
22SPC13037 | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.375 in | 0.493 in | 0.062 in | 0.375 in | 0.078 in | 0.125 in | 0.031 in | 0.217 in | |
22SPC38562 | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.625 in | 1.000 in | 0.062 in | 0.625 in | 0.078 in | 0.375 in | 0.031 in | 0.475 in | |
22SPC25550 | UL94 V-2 | Natural | 0.062 in | Nylon 6/6 | 0.500 in | 0.865 in | 0.062 in | 0.500 in | 0.078 in | 0.250 in | 0.031 in | 0.343 in |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
22SPC50575
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
Material
Nylon 6/6
22SPC20000
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
Material
Nylon 6/6
22SPC13037
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
Material
Nylon 6/6
22SPC38562
Material Flammability Standard
UL94 V-2
Color
Natural
Base Thickness
0.062 in
Material
Nylon 6/6
Per page:
1–5 of 6
