SR22QCC - Quick Cable Clamp
Showing 1-8 of 8
Per page:1-8 of 8

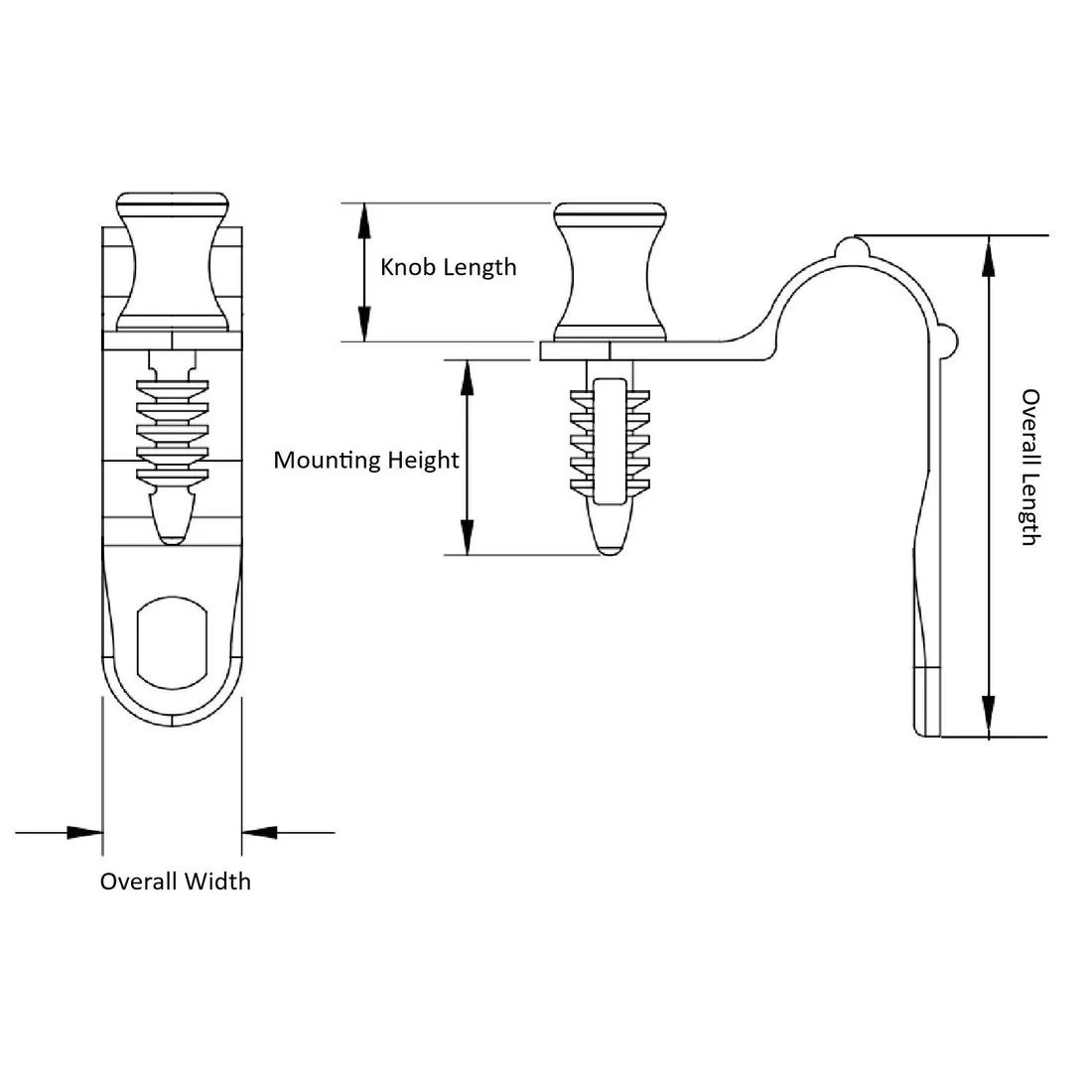

Item Code | Color | Material | Overall Width | Overall Length | Mounting Hole Diameter | Mounting Height | Knob Length | Cable Diameter | Material Flammability Standard | Mounting Method | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
22QCC187437B | Black | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 11.1 mm | 9.5 mm | 11.1 mm | UL94 V-2 | De inserción a presión | |
22QCC187312B | Black | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 7.9 mm | 9.5 mm | 7.9 mm | UL94 V-2 | De inserción a presión | |
22QCC187250B | Black | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 6.4 mm | 9.5 mm | 6.4 mm | UL94 V-2 | De inserción a presión | |
22QCC187375B | Black | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 9.5 mm | 9.5 mm | 9.5 mm | UL94 V-2 | De inserción a presión | |
22QCC187312 | Natural | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 7.9 mm | 9.5 mm | 7.9 mm | UL94 V-2 | Push-In | |
22QCC187250 | Natural | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 6.4 mm | 9.5 mm | 6.4 mm | UL94 V-2 | Push-In | |
22QCC187375 | Natural | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 9.5 mm | 9.5 mm | 9.5 mm | UL94 V-2 | Push-In | |
22QCC187437 | Natural | Nylon 6/6 | 9.5 mm | 22.9 mm | 4.8 mm | 11.1 mm | 9.5 mm | 11.1 mm | UL94 V-2 | Push-In |
Per page:
1-8 of 8
1–5 of 8 variants
Per page:
22QCC187437B
Color
Black
Material
Nylon 6/6
Overall Width
9.5 mm
Overall Length
22.9 mm
22QCC187312B
Color
Black
Material
Nylon 6/6
Overall Width
9.5 mm
Overall Length
22.9 mm
22QCC187250B
Color
Black
Material
Nylon 6/6
Overall Width
9.5 mm
Overall Length
22.9 mm
22QCC187375B
Color
Black
Material
Nylon 6/6
Overall Width
9.5 mm
Overall Length
22.9 mm
Per page:
1–5 of 9
