SR22HDCC - Heavy Duty Cable Clips
Showing 1-10 of 14
Per page:1-10 of 14

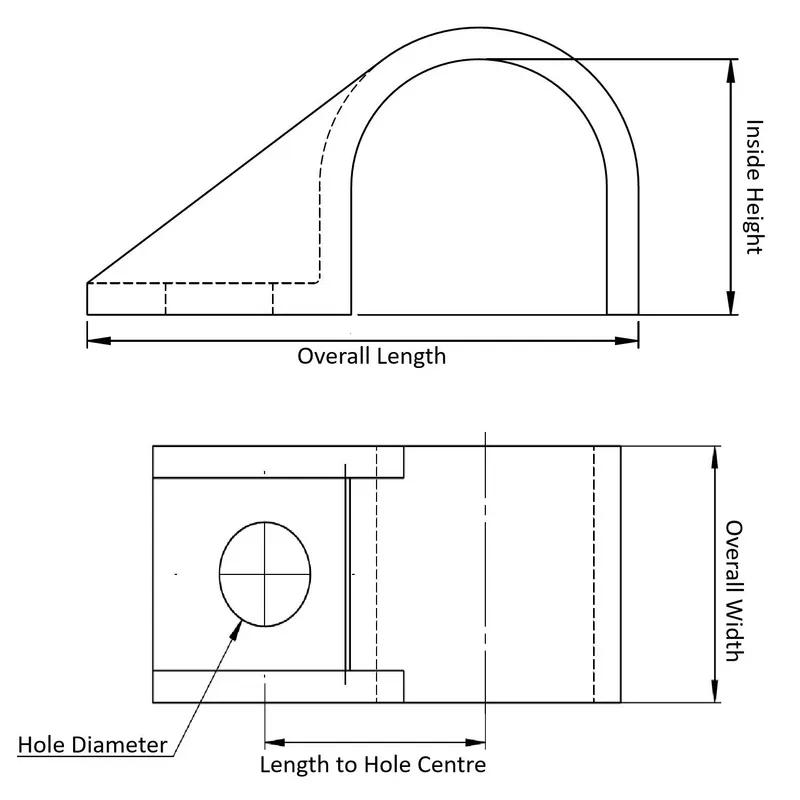

Item Code | Color | Inside Height | Hole Diameter | Material | Overall Width | Overall Length | Length to Hole Center | Cable Diameter | Material Flammability Standard | Mounting Method | Distance From Hole Centre to Cable Bundle Centre | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22HDCC3590B | Black | 9.1 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 23.1 mm | 10.9 mm | 9.5 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC4220B | Black | 10.7 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 24.9 mm | 11.7 mm | 11.1 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC2970B | Black | 7.5 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 21.8 mm | 10.2 mm | 8.0 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC2340B | Black | 6.0 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 20.1 mm | 9.3 mm | 6.4 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC1250B | Black | 2.9 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 17.1 mm | 7.8 mm | 3.2 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC1720B | Black | 4.4 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 18.6 mm | 8.3 mm | 4.8 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC4840B | Black | 12.3 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 26.5 mm | 12.5 mm | 12.7 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC1250 | Natural | 2.9 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 17.1 mm | 7.8 mm | 3.2 mm | UL94 V-2 | Tornillo | - | - | - | |
22HDCC3590 | Natural | 9.1 mm | 5.2 mm | Nylon 6/6 | 12.7 mm | 23.1 mm | 10.9 mm | 9.5 mm | UL94 V-2 | Screw | 10.9 mm | 185 °F | -40 °F |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
22HDCC3590B
Color
Black
Inside Height
9.1 mm
Hole Diameter
5.2 mm
Material
Nylon 6/6
22HDCC4220B
Color
Black
Inside Height
10.7 mm
Hole Diameter
5.2 mm
Material
Nylon 6/6
22HDCC2970B
Color
Black
Inside Height
7.5 mm
Hole Diameter
5.2 mm
Material
Nylon 6/6
22HDCC2340B
Color
Black
Inside Height
6.0 mm
Hole Diameter
5.2 mm
Material
Nylon 6/6
Per page:
1–5 of 15
