SR22DPC - Double Adhesice Backed Cable Clips
Showing 1-10 of 10
Per page:1-10 of 10

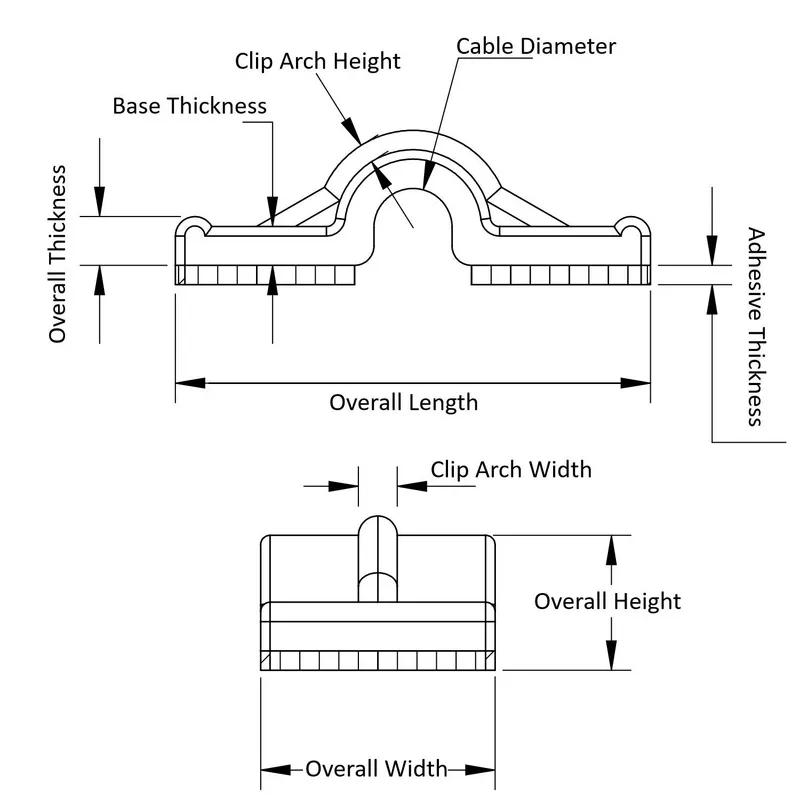

Item Code | Color | Base Thickness | Material | Overall Length | Clip Arch Width | Overall Thickness | Cable Diameter | Clip Arch Height | Overall Height | Material Flammability Standard | Mounting Method | Adhesive Type | Overall Width | Maximum Operating Temperature | Minimum Operating Temperature | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22DPC25550B | Black | 0.062 in | Nylon 6/6 | 1.380 in | 0.062 in | 0.078 in | 0.250 in | 0.031 in | 0.326 in | UL94 V-2 | Adhesivo | Con respaldo adhesivo doble | 0.500 in | - | - | |
22DPC15637B | Black | 0.062 in | Nylon 6/6 | 1.281 in | 0.062 in | 0.078 in | 0.156 in | 0.031 in | 0.248 in | UL94 V-2 | Adhesivo | Con respaldo adhesivo doble | 0.375 in | - | - | |
22DPC50575B | Black | 0.062 in | Nylon 6/6 | 1.600 in | 0.062 in | 0.078 in | 0.500 in | 0.031 in | 0.580 in | UL94 V-2 | Adhesivo | Con respaldo adhesivo doble | 0.750 in | - | - | |
22DPC38062B | Black | 0.062 in | Nylon 6/6 | 1.505 in | 0.062 in | 0.078 in | 0.375 in | 0.031 in | 0.455 in | UL94 V-2 | Adhesivo | Con respaldo adhesivo doble | 0.625 in | - | - | |
22DPC13037B | Black | 0.062 in | Nylon 6/6 | 0.760 in | 0.062 in | 0.078 in | 0.125 in | 0.031 in | 0.216 in | UL94 V-2 | Adhesivo | Con respaldo adhesivo doble | 0.375 in | - | - | |
22DPC13037 | Natural | 0.062 in | Nylon 6/6 | 0.760 in | 0.062 in | 0.078 in | 0.125 in | 0.031 in | 0.216 in | UL94 V-2 | Adhesive | Con respaldo adhesivo doble | 0.375 in | - | - | |
22DPC15637 | Natural | 0.062 in | Nylon 6/6 | 1.281 in | 0.062 in | 0.078 in | 0.156 in | 0.031 in | 0.248 in | UL94 V-2 | Adhesive | Con respaldo adhesivo doble | 0.375 in | - | - | |
22DPC38062 | Natural | 0.062 in | Nylon 6/6 | 1.505 in | 0.062 in | 0.078 in | 0.375 in | 0.031 in | 0.455 in | UL94 V-2 | Adhesive | Con respaldo adhesivo doble | 0.625 in | - | - | |
22DPC50575 | Natural | 0.062 in | Nylon 6/6 | 1.600 in | 0.062 in | 0.078 in | 0.500 in | 0.031 in | 0.580 in | UL94 V-2 | Adhesive | Con respaldo adhesivo doble | 0.750 in | - | - |
Per page:
1-10 of 10
1–5 of 10 variants
Per page:
22DPC25550B
Color
Black
Base Thickness
0.062 in
Material
Nylon 6/6
Overall Length
1.380 in
22DPC15637B
Color
Black
Base Thickness
0.062 in
Material
Nylon 6/6
Overall Length
1.281 in
22DPC50575B
Color
Black
Base Thickness
0.062 in
Material
Nylon 6/6
Overall Length
1.600 in
22DPC38062B
Color
Black
Base Thickness
0.062 in
Material
Nylon 6/6
Overall Length
1.505 in
Per page:
1–5 of 11
