SR22AWC - Releasable Adhesive Backed Wire Clips
Showing 1-10 of 22
Per page:1-10 of 22

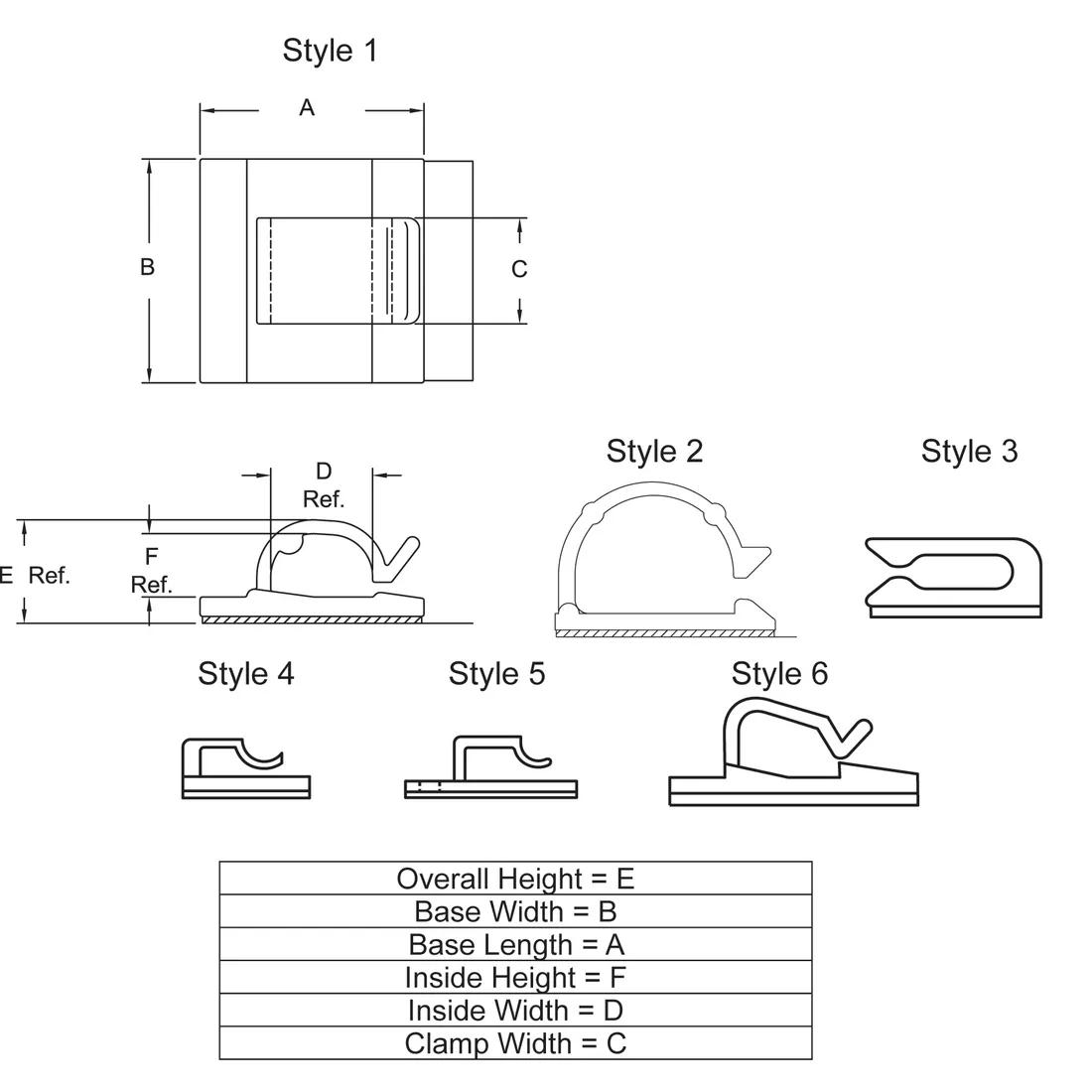

Item Code | Color | Inside Height | Accessory Type | Material | Overall Width | Overall Length | Base Width | Overall Height | Inside Width | Material Flammability Standard | Mounting Method | Inside Length | Maximum Compatible Cable Diameter | Base Length | Cord Holder Width | Adjustability | Adhesive Material | Base Material | Depth | Fitting Style | Height | Clip Width | Saddle Type | Base Height | Clamp Height | Adhesive Type | Design | Type | Maximum Material Thickness | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22AWC00125 | Natural | 3.2 | Clip | Nylon 6/6 | 11.9 mm | 13.1 mm | 11.9 | 5.1 mm | 5.1 | UL94 V-2 | Adhesive | 3.2 mm | 3.2 mm | 13.1 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWCF328110 | Natural | 2.8 | Clip | Nylon 6/6 | 9.5 mm | 12.7 mm | 9.5 | 4.8 mm | 6.9 | UL94 V-2 | Adhesive | 8.3 mm | - | 12.7 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00375 | Natural | 7.9 | Clip | Nylon 6/6 | 19.0 mm | 19.0 mm | 19.1 | - | 11.7 | UL94 V-2 | Adhesive | 9.5 mm | - | 19.1 | 11.7 mm | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00125B | Black | 3.2 mm | - | Nylon 6/6 | 11.9 mm | 13.1 mm | 11.9 mm | 5.1 mm | 5.1 mm | UL94 V-2 | Adhesive | 3.2 mm | 3.2 mm | 13.1 mm | - | Fixed | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00375B | Black | 7.9 mm | - | Nylon 6/6 | 19.0 mm | 19.0 mm | 19.1 mm | - | 9.5 mm | UL94 V-2 | Adhesive | 11.7 mm | - | 19.1 mm | - | Fixed | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00440B | Black | 0.440 in | - | Nylon 6/6 | 0.625 in | 1.000 in | 0.625 in | - | 0.250 in | UL94 V-2 | Adhesive | 0.460 in | - | 1.000 in | - | Fixed | Acrylic | Acrylic-Based Adhesive | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00281B | Black | 0.281 in | - | Nylon 6/6 | 1.000 in | 1.000 in | 1.000 in | - | 0.460 in | UL94 V-2 | Adhesive | - | - | 1.000 in | - | Fixed | Acrylic | Acrylic-Based Adhesive | - | - | - | - | - | - | - | - | - | - | - | |
22AWC00187B | Black | 0.188 in | - | Nylon 6/6 | 0.656 in | 0.656 in | 0.656 in | 0.266 in | 0.375 in | UL94 V-2 | Adhesive | 0.188 in | 0.188 in | 0.656 in | - | Fixed | - | - | - | - | - | - | - | - | - | - | - | - | - | |
22AWC250220TABB | Black | 0.226 in | - | Nylon 6/6 | 0.500 in | 1.000 in | 0.500 in | - | 0.220 in | UL94 V-2 | Adhesive | - | 0.225 in | 1.000 in | - | Fixed | - | - | - | - | - | - | - | - | - | - | - | - | - |
Per page:
1-10 of 22
1–5 of 22 variants
Per page:
22AWC00125
Color
Natural
Inside Height
3.2
Accessory Type
Clip
Material
Nylon 6/6
22AWCF328110
Color
Natural
Inside Height
2.8
Accessory Type
Clip
Material
Nylon 6/6
22AWC00375
Color
Natural
Inside Height
7.9
Accessory Type
Clip
Material
Nylon 6/6
22AWC00125B
Color
Black
Inside Height
3.2 mm
Material
Nylon 6/6
Overall Width
11.9 mm
Per page:
1–5 of 23
