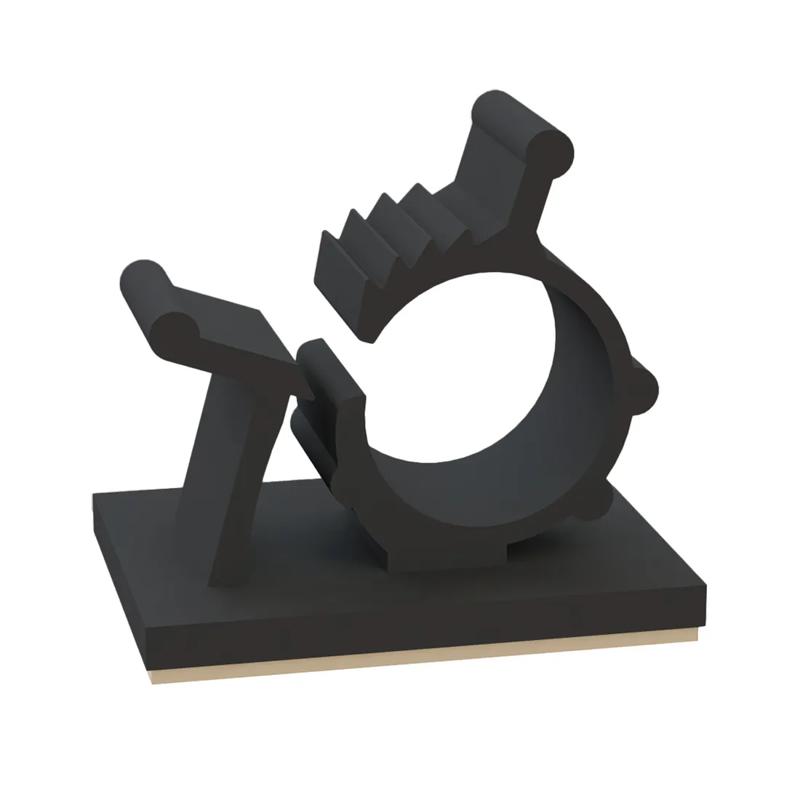

SR22AAWC - Adhesive Mount Adjustable Clamps
Showing 1-5 of 5
Per page:1-5 of 5
Item Code | Maximum Cable Bundle Diameter | Color | Material | Minimum Cable Bundle Diameter | Base Width | Adhesive Material | Style | Material Flammability Standard | Mounting Method | Base Length | Clip Width | Type | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
22AAWC390490 | 12.3 mm | Black | Nylon 6/6 | 9.9 mm | 19.0 mm | Acrylic | 1 | UL94 V-2 | Adhesive | 32.5 mm | 10.3 mm | 1 | |
22AAWC830930 | 23.6 mm | Black | Nylon 6/6 | 19.2 mm | 25.4 mm | Acrylic | 1 | UL94 V-2 | Adhesive | 44.4 mm | 12.7 mm | 1 | |
22AAWC310400 | 9.9 mm | Black | Nylon 6/6 | 7.9 mm | 19.0 mm | Acrylic | 1 | UL94 V-2 | Adhesive | 25.4 mm | 9.9 mm | 1 | |
22AAWC500600 | 14.2 mm | Black | Nylon 6/6 | 11.3 mm | 19.0 mm | Acrylic | 1 | UL94 V-2 | Adhesive | 36.7 mm | 11.9 mm | 1 | |
22AAWC650790 | 19.4 mm | Black | Nylon 6/6 | 15.8 mm | 25.4 mm | Acrylic | 1 | UL94 V-2 | Adhesive | 42.1 mm | 12.7 mm | 1 |
Per page:
1-5 of 5
1–5 of 5 variants
Per page:
22AAWC390490
Maximum Cable Bundle Diameter
12.3 mm
Color
Black
Material
Nylon 6/6
Minimum Cable Bundle Diameter
9.9 mm
22AAWC830930
Maximum Cable Bundle Diameter
23.6 mm
Color
Black
Material
Nylon 6/6
Minimum Cable Bundle Diameter
19.2 mm
22AAWC310400
Maximum Cable Bundle Diameter
9.9 mm
Color
Black
Material
Nylon 6/6
Minimum Cable Bundle Diameter
7.9 mm
22AAWC500600
Maximum Cable Bundle Diameter
14.2 mm
Color
Black
Material
Nylon 6/6
Minimum Cable Bundle Diameter
11.3 mm
Per page:
1–5 of 6
