SR50T - Metric Economy Grade Thumb Screw
Showing 1-10 of 91
Per page:1-10 of 91

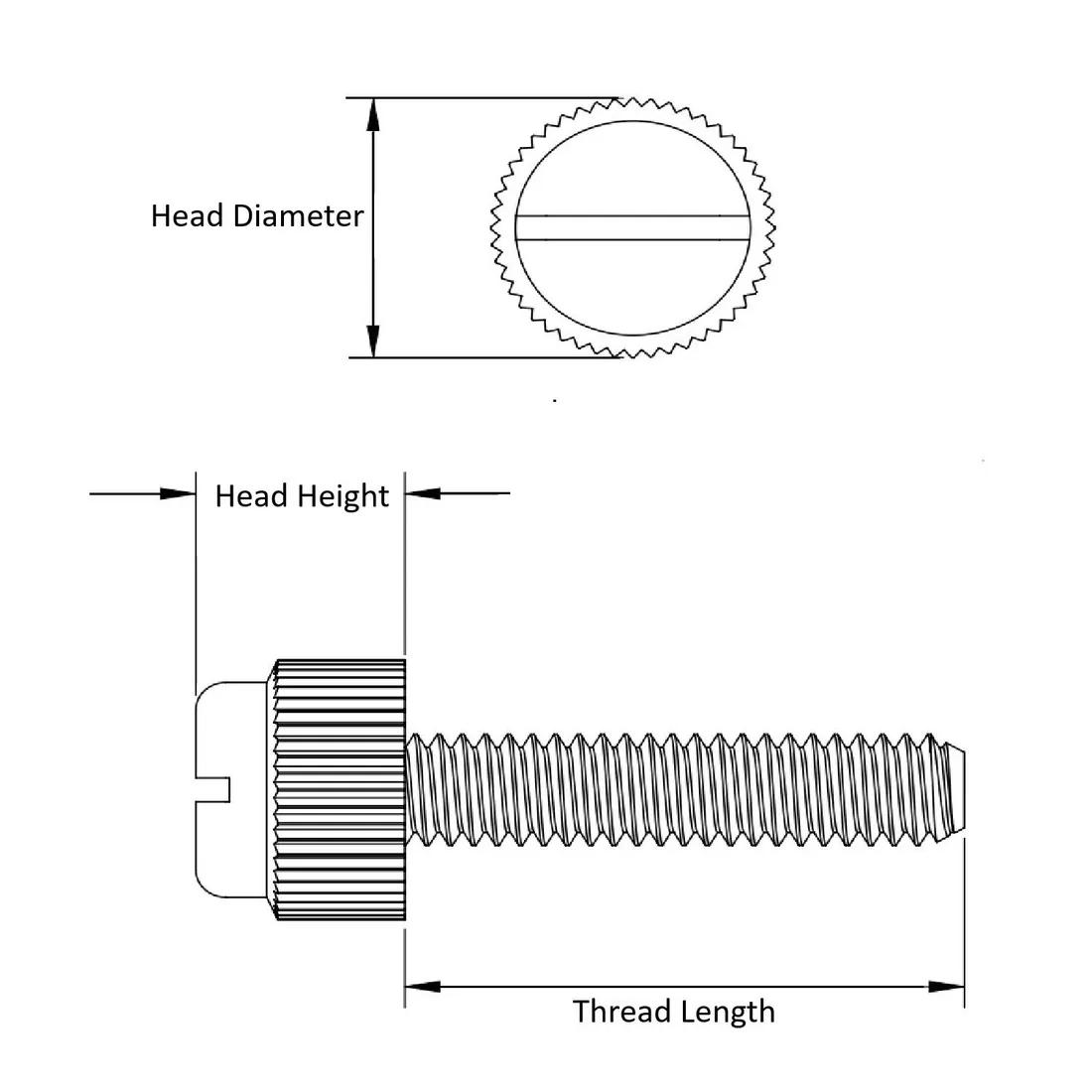

Item Code | Material Flammability Standard | Color | Length Under Head | Head Diameter | Head Height | Thread Length | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|
50M030050T030 | UL94 V-2 | Natural | 30.0 mm | 8.1 mm | 5.5 mm | 30.0 mm | M3 x 0.5 | Nylon 6/6 | |
50M060100T050 | UL94 V-2 | Natural | 50.0 mm | 12.2 mm | 7.8 mm | 50.0 mm | M6 x 1.0 | Nylon 6/6 | |
50M030050T006 | UL94 V-2 | Natural | - | 8.1 mm | 5.5 mm | 6.0 mm | M3 x 0.5 | Nylon 6/6 | |
50M030050T005 | UL94 V-2 | Natural | - | 8.1 mm | 5.5 mm | 5.0 mm | M3 x 0.5 | Nylon 6/6 | |
50M030050T008 | UL94 V-2 | Natural | - | 8.1 mm | 5.5 mm | 8.0 mm | M3 x 0.5 | Nylon 6/6 | |
50M060100T020B | UL94 V-2 | Black | - | 12.2 mm | 7.8 mm | 20.0 mm | M6 x 1.0 | Nylon 6/6 | |
50M030050T010 | UL94 V-2 | Natural | - | 8.1 mm | 5.5 mm | 10.0 mm | M3 x 0.5 | Nylon 6/6 | |
50M040070T025 | UL94 V-2 | Natural | - | 9.7 mm | 7.1 mm | 25.0 mm | M4 x 0.7 | Nylon 6/6 | |
50M050080T006 | UL94 V-2 | Natural | - | 10.0 mm | 7.8 mm | 6.0 mm | M5 x 0.8 | Nylon 6/6 |
Per page:
1-10 of 91
1–5 of 91 variants
Per page:
50M030050T030
Material Flammability Standard
UL94 V-2
Color
Natural
Length Under Head
30.0 mm
Head Diameter
8.1 mm
50M060100T050
Material Flammability Standard
UL94 V-2
Color
Natural
Length Under Head
50.0 mm
Head Diameter
12.2 mm
50M030050T006
Material Flammability Standard
UL94 V-2
Color
Natural
Head Diameter
8.1 mm
Head Height
5.5 mm
50M030050T005
Material Flammability Standard
UL94 V-2
Color
Natural
Head Diameter
8.1 mm
Head Height
5.5 mm
Per page:
1–5 of 92
