SR09V - Oval Head Thumb Screw
Showing 1-10 of 14
Per page:1-10 of 14

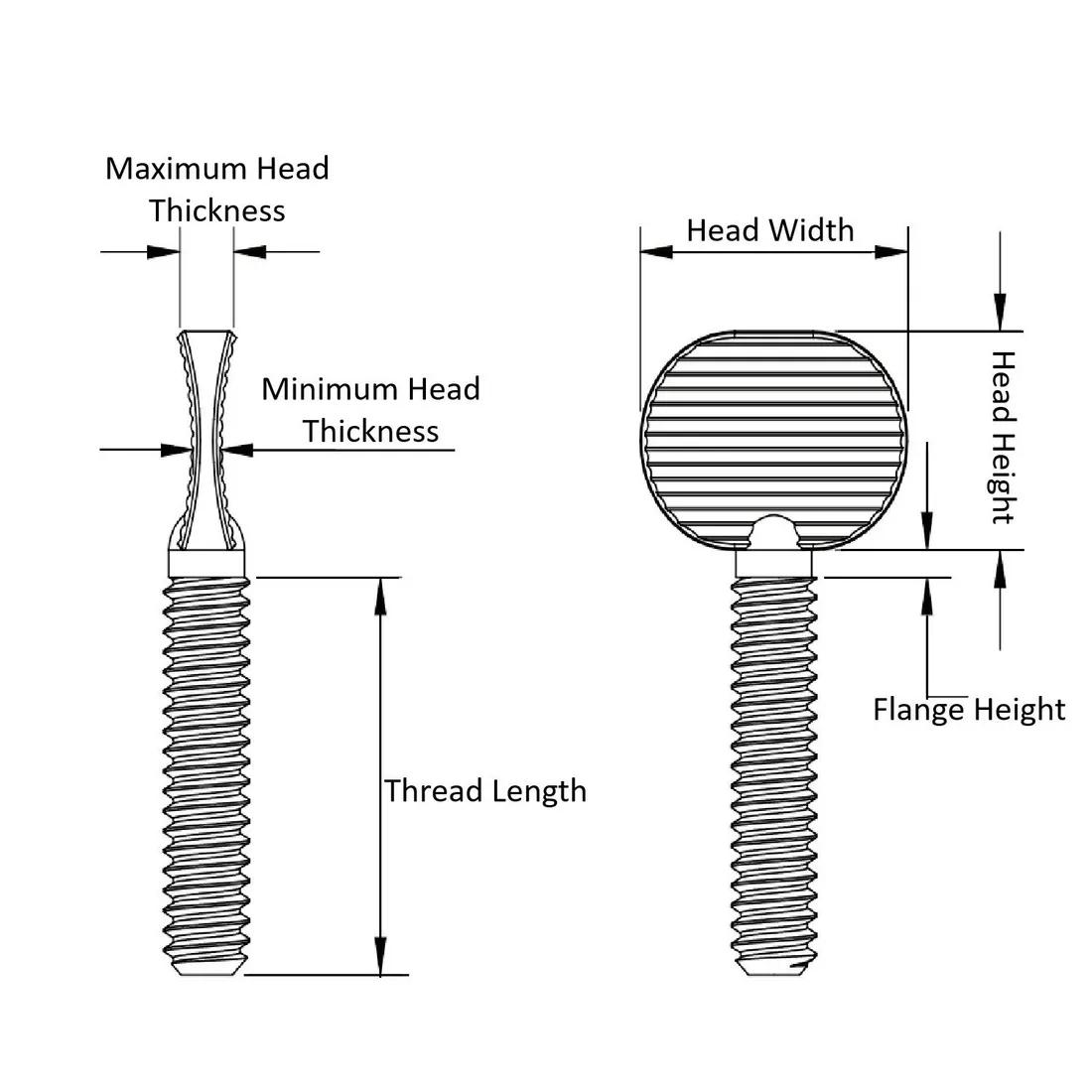

Item Code | Material Flammability Standard | Color | Minimum Head Thickness | Head Height | Thread Length | Flange Height | Head Width | Maximum Head Thickness | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
092520050VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 0.500 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520062VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 0.625 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520037VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 0.375 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520100VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 1.000 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520150VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 1.500 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520250VB | UL94 V-2 | Black | 0.078 in | 0.550 in | 2.500 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520150V | UL94 V-2 | Natural | 0.078 in | 0.550 in | 1.500 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520175V | UL94 V-2 | Natural | 0.078 in | 0.550 in | 1.750 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 | |
092520062V | UL94 V-2 | Natural | 0.078 in | 0.550 in | 0.625 in | 0.068 in | 0.780 in | 0.156 in | 1/4-20 | Nylon 6/6 |
Per page:
1-10 of 14
1–5 of 14 variants
Per page:
092520050VB
Material Flammability Standard
UL94 V-2
Color
Black
Minimum Head Thickness
0.078 in
Head Height
0.550 in
092520062VB
Material Flammability Standard
UL94 V-2
Color
Black
Minimum Head Thickness
0.078 in
Head Height
0.550 in
092520037VB
Material Flammability Standard
UL94 V-2
Color
Black
Minimum Head Thickness
0.078 in
Head Height
0.550 in
092520100VB
Material Flammability Standard
UL94 V-2
Color
Black
Minimum Head Thickness
0.078 in
Head Height
0.550 in
Per page:
1–5 of 15
