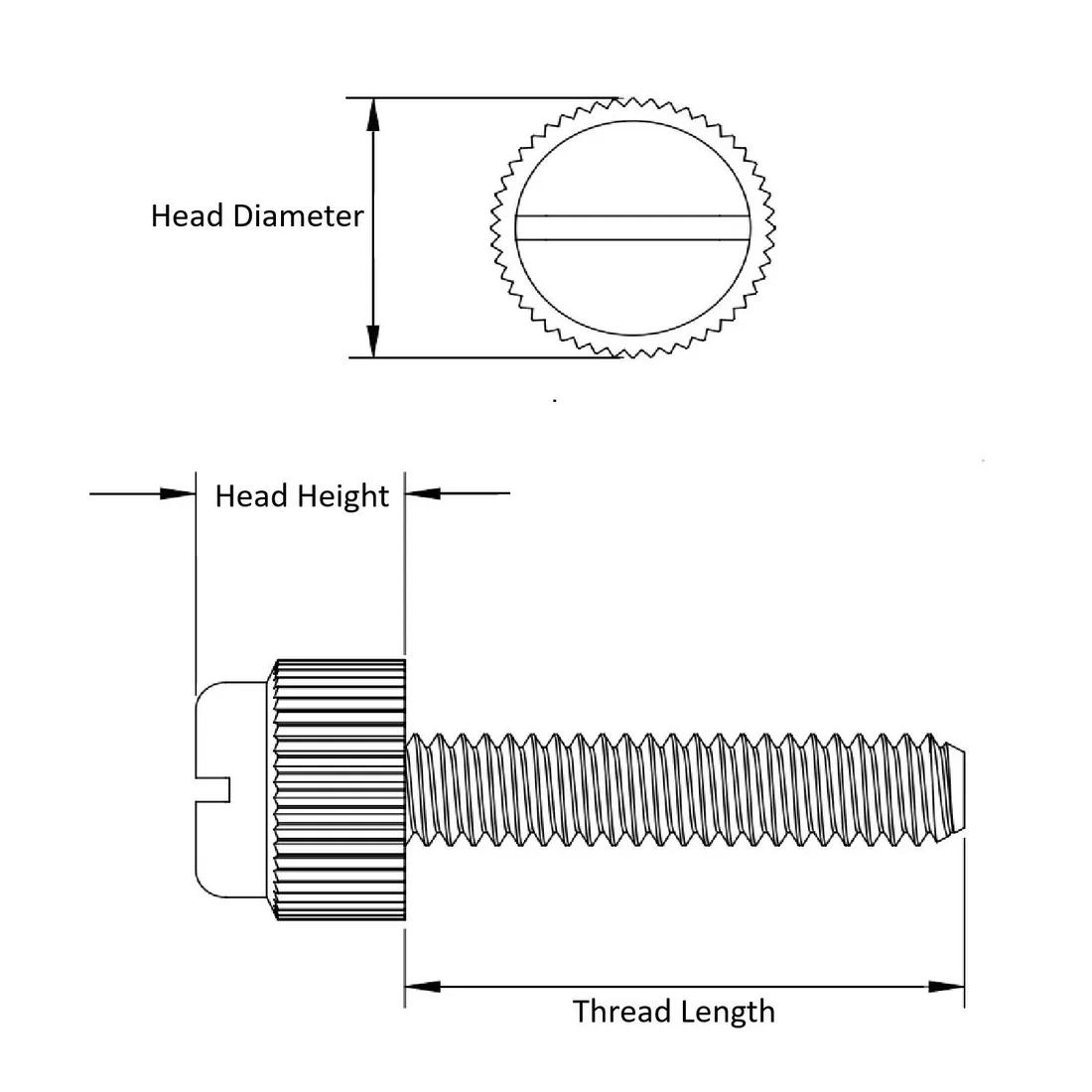

Item Code | Material Flammability Standard | Color | Head Diameter | Head Height | Thread Length | Thread Size | Material | Request Quote |
|---|---|---|---|---|---|---|---|---|
091032012TEGB | UL94 V-2 | Black | 0.395 in | 0.305 in | 0.125 in | #10-32 | Nylon 6/6 | |
092520037TEGB | UL94 V-2 | Black | 0.480 in | 0.305 in | 0.375 in | 1/4-20 | Nylon 6/6 | |
092520150TEGB | UL94 V-2 | Black | 0.480 in | 0.305 in | 1.500 in | 1/4-20 | Nylon 6/6 | |
090832200TEGB | UL94 V-2 | Black | 0.381 in | 0.280 in | 2.000 in | #8-32 | Nylon 6/6 | |
090632031TEGB | UL94 V-2 | Black | 0.336 in | 0.243 in | 0.313 in | #6-32 | Nylon 6/6 | |
090632018TEGB | UL94 V-2 | Black | 0.336 in | 0.243 in | 0.188 in | #6-32 | Nylon 6/6 | |
090440037TEGB | UL94 V-2 | Black | 0.317 in | 0.216 in | 0.375 in | #4-40 | Nylon 6/6 | |
090632062TEGB | UL94 V-2 | Black | 0.336 in | 0.243 in | 0.625 in | #6-32 | Nylon 6/6 | |
090632050TEGB | UL94 V-2 | Black | 0.336 in | 0.243 in | 0.500 in | #6-32 | Nylon 6/6 |
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.395 in
Head Height
0.305 in
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.480 in
Head Height
0.305 in
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.480 in
Head Height
0.305 in
Material Flammability Standard
UL94 V-2
Color
Black
Head Diameter
0.381 in
Head Height
0.280 in
