SR01FHWS - Flat Head Wing Screw
Showing 1-10 of 15
Per page:1-10 of 15

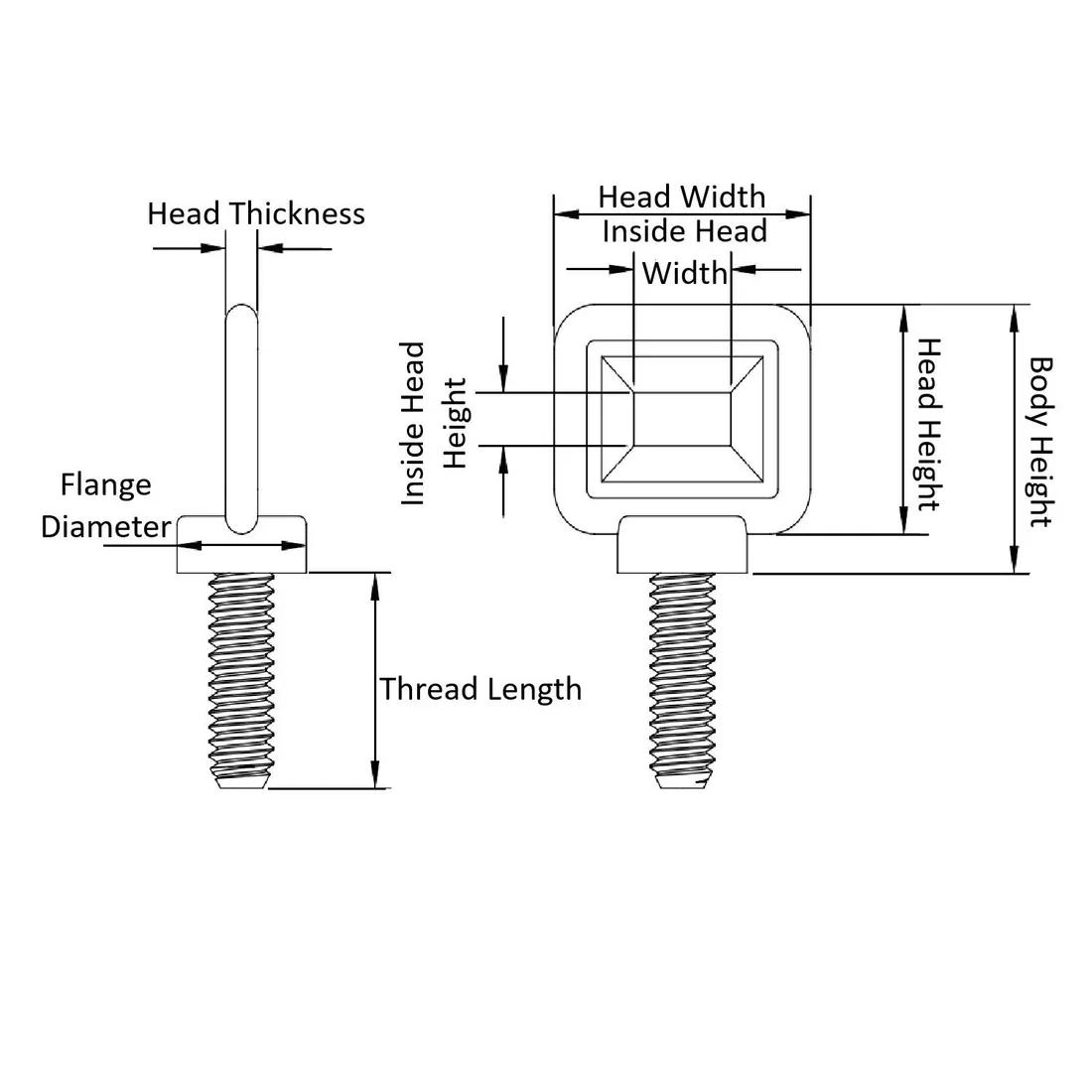

Item Code | Material Flammability Standard | Color | Head Inside Width | Head Height | Thread Length | Head Width | Head Inside Height | Body Height | Thread Size | Material | Flange Diameter | Head Thickness | Head Diameter | Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0131218FHWS100B | UL94 V-2 | Black | 0.375 in | 0.800 in | 1.000 in | 0.990 in | 0.188 in | 0.938 in | 5/16-18 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0131218FHWS050B | UL94 V-2 | Black | 0.375 in | 0.800 in | 0.500 in | 0.990 in | 0.188 in | 0.938 in | 5/16-18 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0131218FHWS075B | UL94 V-2 | Black | 0.375 in | 0.800 in | 0.750 in | 0.990 in | 0.188 in | 0.938 in | 5/16-18 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0125020FHWS100B | UL94 V-2 | Black | 0.375 in | 0.800 in | 1.000 in | 0.990 in | 0.188 in | 0.938 in | 1/4-20 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0125020FHWS050B | UL94 V-2 | Black | 0.375 in | 0.800 in | 0.500 in | 0.990 in | 0.188 in | 0.938 in | 1/4-20 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0125020FHWS075B | UL94 V-2 | Black | 0.375 in | 0.800 in | 0.750 in | 0.990 in | 0.188 in | 0.938 in | 1/4-20 | Nylon 6/6 | 0.500 in | 0.125 in | - | |
0101032FHWS050 | UL94 V-2 | Natural | 0.375 in | 0.800 | 0.500 in | 0.990 in | 0.188 in | 0.938 in | #10-32 | Nylon 6/6 | 0.500 in | 0.125 in | 0.500 in | |
0101032FHWS100 | UL94 V-2 | Natural | 0.375 in | 0.800 | 1.000 in | 0.990 in | 0.188 in | 0.938 in | #10-32 | Nylon 6/6 | 0.500 in | 0.125 in | 0.500 in | |
0101032FHWS075 | UL94 V-2 | Natural | 0.375 in | 0.800 | 0.750 in | 0.990 in | 0.188 in | 0.938 in | #10-32 | Nylon 6/6 | 0.500 in | 0.125 in | 0.500 in |
Per page:
1-10 of 15
1–5 of 15 variants
Per page:
0131218FHWS100B
Material Flammability Standard
UL94 V-2
Color
Black
Head Inside Width
0.375 in
Head Height
0.800 in
0131218FHWS050B
Material Flammability Standard
UL94 V-2
Color
Black
Head Inside Width
0.375 in
Head Height
0.800 in
0131218FHWS075B
Material Flammability Standard
UL94 V-2
Color
Black
Head Inside Width
0.375 in
Head Height
0.800 in
0125020FHWS100B
Material Flammability Standard
UL94 V-2
Color
Black
Head Inside Width
0.375 in
Head Height
0.800 in
Per page:
1–5 of 16
